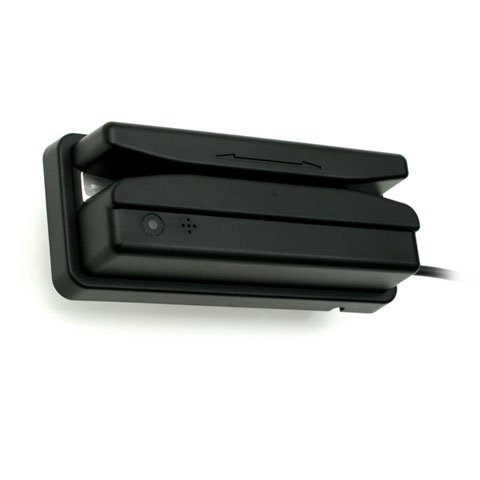

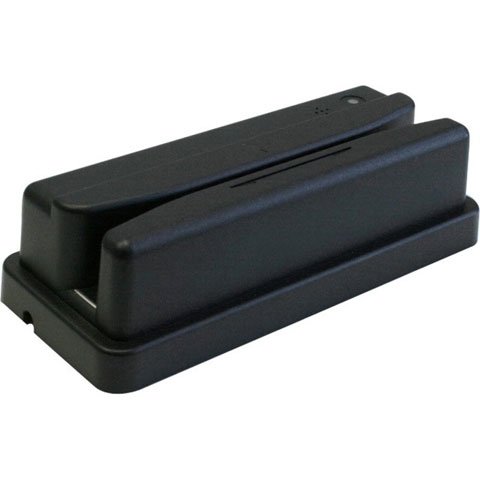

Unitech MS146-IRCB0M-SG Credit Card Reader
Full specifications (PDF)
Unitech MS146 Barcode Card Reader Model Overview
The MS146 Barcode Slot Reader by Unitech is a versatile solution designed for time control, security access, and attendance control applications. Engineered for durability, this device features a sealed optical system housed in an IP54-rated body, ensuring reliable performance even in harsh industrial settings. With a flexible reading angle and high-resolution capabilities, the MS146 is perfect for both desktop and side-mounted applications, making it ideal for locations with varying space requirements.
Key Features
- Sealed optical system with IP54 rugged housing for durability
- Wide barcode slot for flexible reading angles and higher resolution
- Multi-directional installation options for convenience
- User-configurable via PC programming
- Compatible with all popular devices
- Suitable for varying card dimensions and printing qualities
- Available interfaces: TTL, keyboard wedge, RS232, and USB
- Advanced data editing capabilities
- Impressive scan rate: 50 mm to 700 mm/sec
- Minimum resolution: 6 mil
Specifications
- Optical Light Source: Infrared: 930 nm LED, Visible light: 660 nm LED
- Sensor: Photo diode
- Depth of field: 2 mm
- Resolution: 6 mils (0.15 mm) minimum
- Print Contrast: 0.6 minimum
- Scan Speed: 700 mm/Sec
- M.T.B.F: 25000 Hours
- Dimensions: 128 mm (L) x 53 mm (W) x 33 mm (H)
- Weight: 180 g
- Power Consumption: 35 mA for TTL 5V DC, 70mA for Decoded version
- Beep Sound Volume: >70dB
- Operating Temperature: 0° to 50°C
- Storage Temperature: -20° to 60°C
- Humidity: 0% to 95% RH non-condensing
- Mechanical Shock: 5 ft. (1.5 m) drop on concrete
- Symbologies Supported: Code 39, EAN-13, UPC-A, and more
Recommended Accessories
Category
- Cables, Connectors, and Adapters (2)
- Credit Card Reader Accessories (3)
- Power Device (2)
Recommended Accessories for Model: Unitech MS146-IRCB0M-SG Credit Card Reader
Top Cables, Connectors, and Adapters Purchased With Unitech MS146-IRCB0M-SG
-
Unitech 5610679000 Cables, Connectors, and AdaptersCable, Unitech RS232, 68", Straight, Beige, for MSR206Item on backorder — chat for lead time$18.20 -
Unitech 5611481000-R Cables, Connectors, and AdaptersCable, Unitech USB Data Transfer Cable for MSR206Item on backorder — chat for lead time$25.12
Top Credit Card Reader Accessories Purchased With Unitech MS146-IRCB0M-SG
-
Unitech 3290001000 AccessoryPower Supply for the MSR206 only.Item on backorder — chat for lead time$24.29 -
Unitech 400140-Z010 AccessoryMS140 Mounting Brackets (set of 2)Item on backorder — chat for lead timePlease Call for Pricing or to Purchase -
Unitech 5200-381680G AccessoryMOUNTING KIT FOR MS146$6.50
Top Power Device Purchased With Unitech MS146-IRCB0M-SG
-
Unitech 101000-0150 Power DevicePower Supply, Unitech Power Adapter, 110V for RS232 CCD ScannerItem on backorder — chat for lead time$33.15 -
Unitech 1010-601873G Power DevicePower Supply, Unitech Universal AC Adapter for ScannersItem on backorder — chat for lead time$13.00
Frequently Asked Questions
What barcode types can the Unitech MS146 read?
The Unitech MS146 is designed to read 1D barcodes with a resolution of up to 6 mils (0.15 mm), making it capable of reading any barcoded identification badge. This makes it ideal for badge scanning and ID verification applications in warehouses and access control environments.
What connectivity options does the MS146-IRCB0M-SG offer?
The Unitech MS146-IRCB0M-SG features a convenient USB interface for easy integration with modern computer systems. It also comes with an RS-232 cable option and includes a mounting bracket for flexible installation in fixed-position applications.
Is the MS146 suitable for harsh warehouse environments?
Yes, the MS146 is built for demanding environments with a water-resistant base, rugged ABS plastic housing, and IP54-rated sealing to protect against dust and moisture. These features make it a reliable choice for warehouse, logistics, and outdoor applications where durability is essential.
What is the difference between the infrared and visible light versions of the MS146?
The infrared units (like the MS146-IRCB0M-SG) ensure accurate reading of both visible and laminated badges, providing superior performance when reading identification cards with protective lamination. The sealed optical system in the infrared version offers more consistent results across different badge types.
What power requirements does the MS146 need?
The MS146 operates on 5 Volts DC with minimal power consumption during reading operations. A power adapter is sold separately and required for operation, so be sure to include one when ordering from us.
How long will the MS146 last with regular use?
The Unitech MS146 is built for longevity with a magnetic head life and rail/cover life rated for a minimum of 1,000,000 passes each. It also includes a 1-year warranty and maintains a read accuracy of less than 1 error in 100,000 bits on cards conforming to ISO 7811 standards.
