Unitech MS146-4G Barcode Card Reader

Unitech MS146-RUCB00-SG Credit Card Reader A newer version of this item is available.
It is replaced by the Unitech MS146-RUCB00-SG Credit Card Reader.
Unitech MS146 - Unitech MS146 Bar Code Slot Reader - Wired
  • Fit for reading any barcode ID cards, guaranteeing precise reading of both; visible and laminated cards
  • Wired connectivity makes this scanner ideal for retail and desktop applications
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More
Discontinued See Replacement
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote

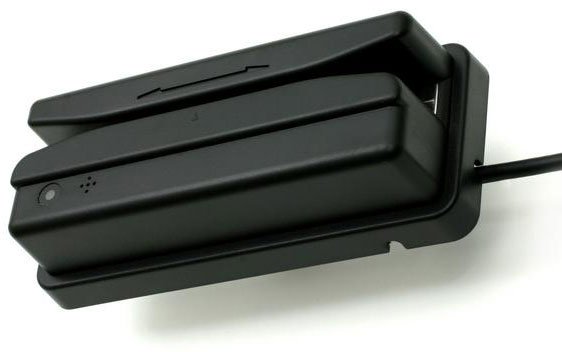

Unitech MS146 Barcode Card Reader Model Overview
The Unitech MS146 barcode slot reader is a flexible, cost effective solution when reliability is essential. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. The MS146's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. The convenient USB interface, water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment.
Unitech MS146-4G Barcode Card Reader Overview

The MS146 Bar Code Reader, family of bar code slot readers is a flexible, cost effective solution when to demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any bar coded identification badge. Its sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 (Standard)
  • Code 39 Full ASCII
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
Light Source:
LED
Maximum Scan Resolution:
6 mil
Depth of Field:
  • 2mm
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Color:
Black
Height:
1.9"
Width:
1.4"
Depth:
3.8"
Weight (Approximate):
6.70 oz
Miscellaneous
Additional Information:

Supported Interface:

  • USB

USB Cable separate

Platform Supported:
PC
Certifications & Standards:

RoHS Compliance

Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0749479046750, 0778889963876
UPC: 749479046750, 778889963876
EAN: 0749479046750, 0778889963876
UNSPSC: 43211701
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Unitech MS146-4G Barcode Card Reader is also known as UNI-MS1464G or MS1464G.
