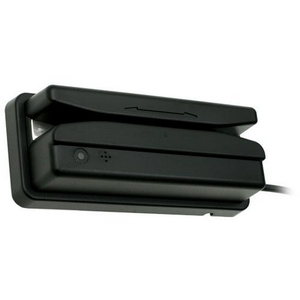

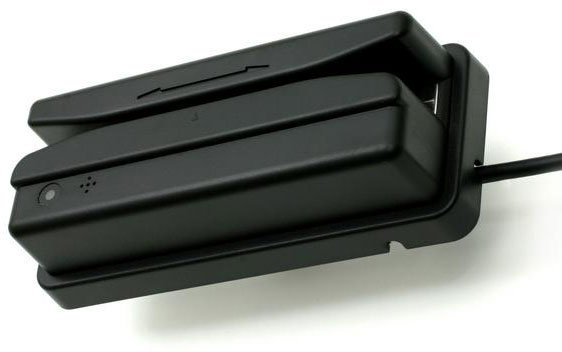

Unitech MS146-3PS2G Barcode Card Reader

The Unitech MS146-3PS2G Barcode Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

Unitech MS146 - Unitech MS146 Slot Bar Code Reader - Wired - Photo Diode

Scanner Capability

Metes out excellent operation and rugged structure with smart retailing features which is an ideal choice for bundling terminals, businesses, supermarkets and grocery stores
Wired connectivity makes this scanner ideal for retail and desktop applications
Laser-free design provides high-performance scanning without the risk of eye injury

Need a different version? See all Unitech MS146 Barcode Card Readers

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Unitech MS146 Barcode Card Reader Model Overview

The Unitech MS146 barcode slot reader is a flexible, cost effective solution when reliability is essential. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. The MS146's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. The convenient USB interface, water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment.

Unitech MS146-3PS2G Barcode Card Reader Overview

The MS146 Slot Bar Code Reader is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 Slot Bar Code Reader is capable of reading any bar coded identification badge.

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable

Barcode Symbology Supported:

China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
ISBT 128
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code

Light Source:

LED

Maximum Scan Resolution:

6 mil

Interfaces/Ports

Host Interface:

Multi-interface

Physical Characteristics

Height:

1.3"

Width:

2.1"

Depth:

Weight (Approximate):

6.70 oz

Miscellaneous

Additional Information:

6 ft Keyboard Wedge Cable

USB Cable separate

Platform Supported:

Warranty

Limited Warranty:

2 Year

Item Numbers

GTIN: 0751492179650, 0851295001414

UPC: 751492179650, 851295001414

EAN: 0751492179650, 0851295001414

UNSPSC: 43211701

Reviews

Q&A

Accessories

Service Contracts

Questions? Get help from
an ID Expert!

The Unitech MS146-3PS2G Barcode Card Reader is also known as UNI-MS1463PS2 or MS1463PS2G.
