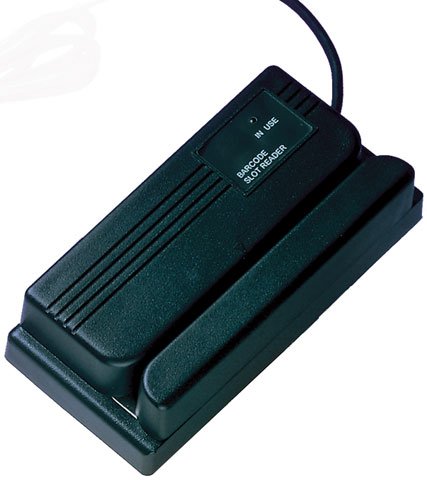

Unitech MS140I-3 Barcode Card Reader

Unitech MS146I-3 Barcode Card Reader A newer version of this item is available.
It is replaced by the Unitech MS146I-3 Barcode Card Reader.
Unitech MS140 - Unitech MS140I Bar Code Slot Reader - Wired - Photo Diode
  • Fit for reading any barcode ID cards, guaranteeing precise reading of both; visible and laminated cards
  • Perfect for applications that require direct association with a workstation or a notebook
  • Features Infrared light source scanning
Read More
Discontinued See Replacement
Add to Quote
Unitech MS140 Barcode Card Reader Model Overview
The Unitech MS140 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15mm), the MS140 is capable of reading any barcoded identification badge.
Unitech MS140I-3 Barcode Card Reader Overview

The MS140i Bar Code slot reader is flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.

Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Code 39
  • Code 39 Full ASCII
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Standard 2 of 5
  • Code 128
  • Code 93
  • MSI
  • Code 32
  • Code 11
  • Label Code
  • Delta Distance Code
  • Plessey Code
  • Codabar
Light Source:
Infrared
Maximum Scan Resolution:
6 mil
Depth of Field:
  • 2mm
Interfaces/Ports
Host Interface:
Keyboard Wedge
Physical Characteristics
Height:
1.3"
Width:
2.4"
Depth:
4.9"
Weight (Approximate):
6.70 oz
Miscellaneous
Package Contents:
  • MS140i Bar Code Reader
  • AT DIN-5 connector
Additional Information:

DIN connectors

USB Cable separate

Platform Supported:
Mac
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Unitech MS140I-3 Barcode Card Reader is also known as UNI-MS140I/3 or MS140I3.
