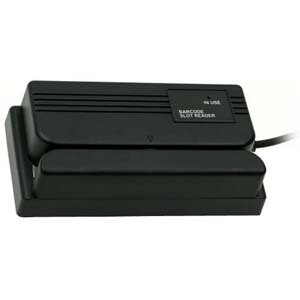

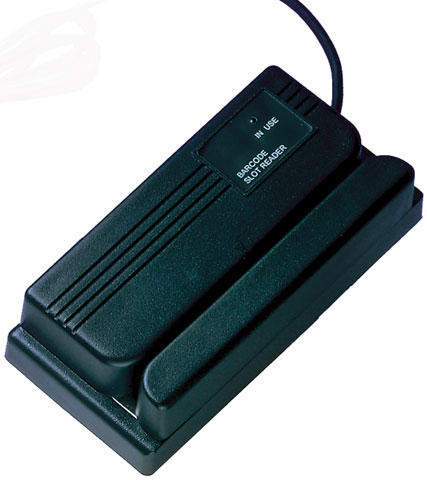

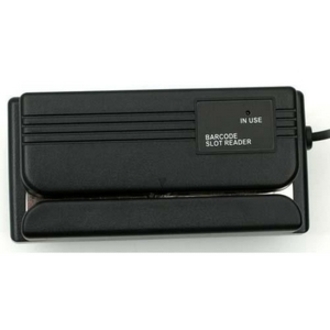

Unitech MS140A Barcode Card Reader

The Unitech MS140A Barcode Card Reader has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Unitech MS140 - Thermal transferL, with DB9 Squeeze and Release connector, Undecoded - requires power supply, see accessories.
  • Perfect for applications that require direct association with a workstation or a notebook
  • Laser-free design provides high-performance scanning without the risk of eye injury
Read More

Need a different version? See all Unitech MS140 Barcode Card Readers

Discontinued Need Assistance?
Add to Quote
Add to My Shopping List Add to Compare
Unitech MS140A Barcode Card Reader
Unitech MS140A Barcode Card Reader Unitech MS140A Barcode Card Reader Unitech MS140A Barcode Card Reader Unitech MS140A Barcode Card Reader
Unitech MS140A Barcode Card Reader
Unitech MS140A Barcode Card Reader
Unitech MS140A Barcode Card Reader

Full specifications (PDF)
Unitech MS140 Barcode Card Reader Model Overview
The Unitech MS140 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15mm), the MS140 is capable of reading any barcoded identification badge.
Unitech MS140A Barcode Card Reader Overview

The MS140 Bar Code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140 is capable of reading any bar coded identification badge. The MS140 is a visible light Bar Code Reader.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39 Full ASCII
  • Code 39 (Standard)
  • Code 93
  • Code 128
  • Delta Code
  • EAN-8 with Add-on Code
  • EAN-13 with Add-on Code
  • EAN-128
  • Interleaved 2 of 5
  • ISBN / Bookland EAN
  • ISBT 128
  • Italian Pharmacy
  • Label Code IV
  • Label Code V
  • MSI/PLESSEY
  • Standard 2 of 5
  • Toshiba Code
  • UPC-A with Add-on Code
  • UPC-E with Add-on Code
Light Source:
LED
Maximum Scan Resolution:
6 mil
Depth of Field:
  • 2mm
Scanning Distance:
0.43"
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Height:
1.3"
Width:
2.4"
Depth:
4.9"
Weight (Approximate):
6.70 oz
Miscellaneous
Package Contents:
  • MS140 Bar Code Reader
  • Cable
Additional Information:
  • Rugged, lightweight housing
  • Reads visible and laminated barcode labels
  • Advanced Data Editing
  • Depth of field: 2 mm
  • Case material: ABS plastic
  • Max card thickness:54 mils (.054" , 1.37mm)
  • Mechanical shock: 5 ft. (1.5 m) drop on concrete
  • Wide slot allows thicker badges

USB Cable separate

Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The Unitech MS140A Barcode Card Reader is also known as UNI-MS140A or MS140A.
