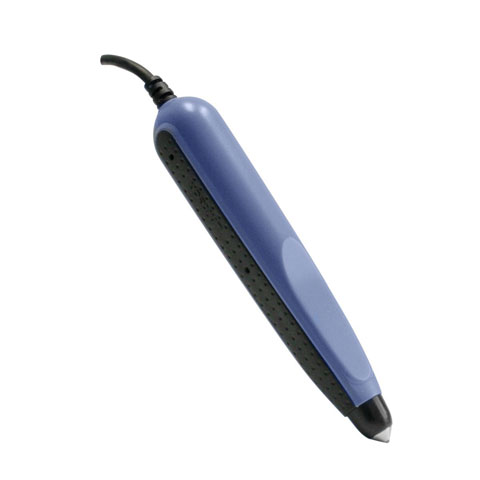

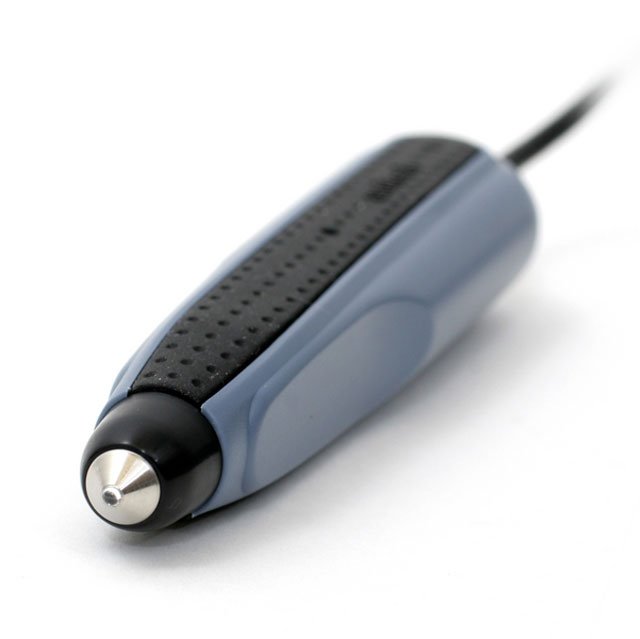

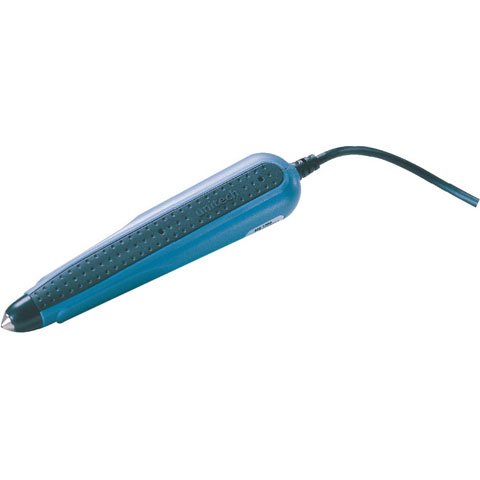

Unitech MS100 – Barcode Scanner – Corded – 1D – Cable Only
Full specifications (PDF)
Unitech MS100 Barcode Scanner Model Overview
Key features:
- Rugged, lightweight design
- Easy to use and configure
- USB interface
- Low power consumption
- High scan speed
- 1-year warranty
Specifications:
- Optical:
- Light Source: 650nm Red LED
- Resolution: 5 mils (0.127mm)
- Depth of Field: 0.04" (1.0mm)
- Scan Rate: 24 inches/sec (10 - 60 cm/sec)
- Reading Angle: 45 to 90°
- Print Contrast Ratio: 0.6 minimum
- Mechanical:
- Dimensions: 5.5 Inches (140mm) length, 1.2 x .9 Inches (30 x 23mm)
- Weight: 76g
- Case Material: ABS plastic
- Electrical:
- Supply Voltage: 5V DC ±10%
- Surge Power: < 500mA
- Working Current: 60mA ±10mA
- Decoder Symbologies:
- UPC-E, UPC-A, EAN-8, EAN-13, JAN
- Code 39, Code 128, Interleaved 2 of 5, Industrial 2 of 5
- ABC Codabar, Telepen, and more
- Environmental:
- Operating Temperature: 32 to 122°F (0 to 50°C)
- Storage Temperature: -4 to 140°F (-20 to 60°C)
- Humidity: 0% to 95% RH non-condensing
Recommended Accessories
Category
- Mounting Hardware and Stands (1)
- Power Device (2)
Recommended Accessories for Model: Unitech MS100-NUCB00-JG Barcode Scanner
Top Mounting Hardware and Stands Purchased With Unitech MS100-NUCB00-JG
-
Unitech 400120-Z010 Mounting Hardware and StandsStand, Unitech, for MS100Item on backorder — chat for lead time$18.51
Top Power Device Purchased With Unitech MS100-NUCB00-JG
-
Unitech 101000-0150 Power DevicePower Supply, Unitech Power Adapter, 110V for RS232 CCD ScannerItem on backorder — chat for lead time$38.56 -
Unitech 1010-601873G Power DevicePower Supply, Unitech Universal AC Adapter for ScannersItem on backorder — chat for lead time$13.00
Frequently Asked Questions
What barcode symbologies does the Unitech MS100 scanner support?
The Unitech MS100 supports all standard 1D barcode symbologies including UPC/EAN/JAN, Code 39, Codabar, ITF 2/5, Code 128, Code 11, Code 93, and MSI. This wide symbology support makes it compatible with most barcode labeling standards used in warehouse and logistics operations.
Is the Unitech MS100 compatible with USB and PS/2 connections?
Yes, the Unitech MS100 offers both USB and PS/2 interface options, giving you flexibility in how you connect it to your system. This dual connectivity makes it easy to integrate into existing warehouse management systems regardless of your computer setup.
What is the operating temperature range for the Unitech MS100?
The Unitech MS100 operates reliably in environments from 0°C to 50°C (32°F to 122°F), with a storage temperature range of -20°C to 60°C (-4°F to 140°F). This temperature tolerance makes it suitable for both climate-controlled facilities and cooler warehouse environments.
How durable is the Unitech MS100 for warehouse use?
The Unitech MS100 is built with a rubber and ABS plastic case and is designed to withstand mechanical shock from 1.5-meter drops onto concrete. It weighs only 130 grams without cable, making it comfortable to handle throughout long scanning sessions while maintaining durability for demanding warehouse applications.
What is the power requirement for the Unitech MS100?
The Unitech MS100 requires 5 VDC ± 0.5V input with an operational current consumption of 60mA. This low power requirement makes it efficient for extended use and compatible with standard USB power supplies available from us.
Is the Unitech MS100 suitable for low-volume barcoding applications?
Yes, the Unitech MS100 is specifically designed as a cost-effective solution for low-volume barcoding applications. Its pen-like wand shape provides comfortable handling, and the advanced optics deliver high-quality digital signals with a confirmation beep for successful reads. Contact us today to learn how this scanner fits your specific volume and budget requirements.
