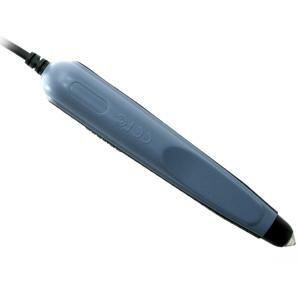

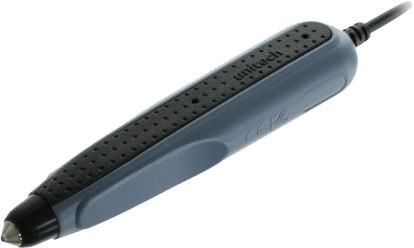

The Unitech MS100U Wand Scanner is an ideal solution for low reading volume environments where cost-effectiveness is key. Designed with advanced optics and electronic components, this scanner converts bar code labels—including faded and low-contrast ones—into high-quality digital signals. Its ergonomic shape allows for effortless handling, making it easy to sweep across bar codes in either direction. With its lightweight design, low power consumption, and quick reading capabilities, the MS100U is the perfect tool for efficient data collection. Key features:
Rugged, lightweight design
Easy to use and configure
USB interface
Low power consumption
High scan speed
1-year warranty
Specifications:
Optical:
Light Source: 650nm Red LED
Resolution: 5 mils (0.127mm)
Depth of Field: 0.04" (1.0mm)
Scan Rate: 24 inches/sec (10 - 60 cm/sec)
Reading Angle: 45 to 90°
Print Contrast Ratio: 0.6 minimum
Mechanical:
Dimensions: 5.5 Inches (140mm) length, 1.2 x .9 Inches (30 x 23mm)
Weight: 76g
Case Material: ABS plastic
Electrical:
Supply Voltage: 5V DC ±10%
Surge Power: < 500mA
Working Current: 60mA ±10mA
Decoder Symbologies:
UPC-E, UPC-A, EAN-8, EAN-13, JAN
Code 39, Code 128, Interleaved 2 of 5, Industrial 2 of 5
ABC Codabar, Telepen, and more
Environmental:
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0% to 95% RH non-condensing
Unitech MS100-3PS/2 Barcode Scanner Overview
The MS100 Bar Code Wand Reader is targeted toward low reading volume / cost effective solutions. The advanced optics and electronic design converts bar code labels into a high quality digital signal. Able to read color, faded, and low contrast barcodes quickly and accurately, the MS100 is a proven solution. Its shape gives the MS100 the comfort and handling of a conventional ink pen. Just sweep the tip of the wand across the bar code in either direction and listen for the "good read" beep that lets you know the data has been successfully captured. It doesn't get easier than that.
What's included in the Zebra DS9308-PLK Popeyes kit?
The Zebra DS9308-PLK kit includes the DS9308-SR00004ZZWW scanner and a shielded USB cable (CBA-U21-S07ZBR) for immediate deployment. This complete kit is available from us and ready for point-of-sale and retail environments. Contact us today for ordering details and configuration support.
What is the Cisco WS-X4612-SFP-E and what does it do?
The Cisco WS-X4612-SFP-E is a 12-port SFP module designed for the Cisco Catalyst 4500 Series Switch, a midrange modular platform built for unified communications. This transceiver module enables high-speed fiber connectivity and is engineered to support enterprise deployments requiring secure, resilient, and scalable data, voice, and video networks. We offer this module as part of our comprehensive Cisco networking product lineup available from barcodesinc.com.
Is the Zebra DS9308-PLK compatible with POS systems?
Yes, the DS9308 scanner in this kit connects via USB and is designed for retail and quick-service restaurant environments like Popeyes locations. The included shielded USB cable ensures reliable connectivity with standard POS systems. Our team can help verify compatibility with your specific setup—contact us today.
What SFP transceiver types are compatible with the Catalyst 4500 Series?
The Catalyst 4500 Series supports a comprehensive range of SFP modules including 100BASE-BX-10D, 100BASE-BX-10U, 100BASE-FX-FE, 100BASE-FX-GE, 100BASE-LX, 1000BASE-LX/LH, and 1000BASE-SX standards. This broad compatibility ensures flexibility in fiber connectivity options for various network distances and speeds. Contact us today to determine which SFP types best match your specific network requirements.
What barcode types can the Zebra DS9308 scanner read?
The Zebra DS9308 is a high-performance imager capable of reading 1D barcodes, 2D codes, and postal codes with excellent speed and accuracy. Its advanced imaging technology makes it ideal for fast-paced retail and QSR environments. Visit barcodesinc.com or contact us for detailed technical specifications.
Is the Catalyst 4500 Series backward and forward compatible?
Yes, the Cisco Catalyst 4500 Series is designed with backward and forward compatibility across generations, protecting your network investment over time. This compatibility approach allows you to upgrade and expand your infrastructure without obsoleting existing hardware. We can help you plan a migration strategy that maximizes your existing equipment investments—visit barcodesinc.com or contact us today.
Can the DS9308-PLK kit be used in high-volume retail environments?
Absolutely—the Zebra DS9308 is engineered for high-throughput scanning in demanding retail and quick-service restaurant settings. The scanner delivers fast read rates and reliable performance even in busy checkout lanes. We offer this kit specifically for commercial deployments; contact us today for enterprise pricing and support.
What network management and protocol standards does the Catalyst 4500 support?
The Catalyst 4500 Series supports extensive management capabilities including SNMP v3, embedded GUI management, RFC1213-MIB (MIB II), and RMON-MIB for comprehensive monitoring. It also implements critical networking standards such as IEEE 802.1q VLAN, IEEE 802.3ad LACP, IEEE 802.1x Port Access Authentication, and Spanning Tree Protocol variants for enterprise-grade network control. These features enable IT teams to deploy secure, manageable networks at scale across warehouse and logistics environments.
What's the difference between the DS9308 and older Zebra scanner models?
The DS9308 features advanced imaging technology with improved read speeds and accuracy compared to previous generations, making it faster and more reliable for modern retail operations. Its design reduces scanning errors and increases throughput in high-volume environments. Contact us today to discuss how this upgrade benefits your operation.
What are the key use cases for the Catalyst 4500 Series in warehouse and logistics?
The Catalyst 4500 Series is ideal for warehouse managers and logistics operations requiring high-resiliency unified communications, secure data networks, and simplified operations across distributed facilities. Its modular design supports scalable deployments from small wiring closets to enterprise backbone infrastructure, making it suitable for voice, video, and data convergence in demanding environments. We offer complete solutions and support to help you implement this platform—contact us today for a consultation.
Is the shielded USB cable included with this kit necessary?
Yes, the shielded USB cable (CBA-U21-S07ZBR) included in this kit provides electromagnetic interference protection, ensuring stable connectivity and reliable scanning performance in retail environments with multiple electronic devices. Using the correct cable prevents data transmission issues and extends scanner lifespan. We include it to guarantee optimal performance out of the box.
How does the modular design of the Catalyst 4500 benefit enterprise deployments?
The Catalyst 4500's modular platform architecture allows IT teams to customize configurations by selecting specific line cards and supervisor engines based on bandwidth and feature requirements, without over-provisioning unnecessary capacity. This flexibility supports both collapsed access deployments and enterprise backbone designs, with options ranging from 80 Gbps to 480 Gbps bandwidth per slot depending on supervisor choice. We can help you design a configuration that matches your specific performance and scalability needs—visit barcodesinc.com to explore options available from us.
The Unitech MS100-3PS/2 Barcode Scanner is also known as
UNI-MS1003PS2
or MS1003PS/2.
Full specifications (PDF)
