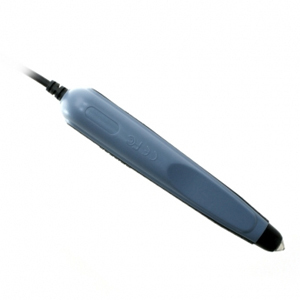

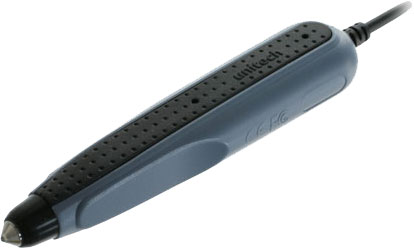

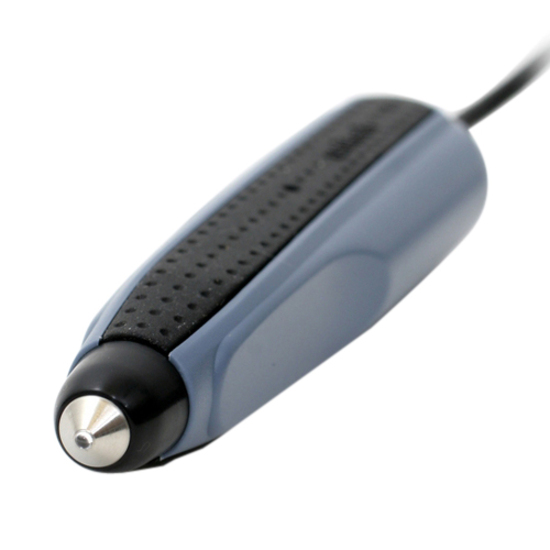

The Unitech MS100U Wand Scanner is an ideal solution for low reading volume environments where cost-effectiveness is key. Designed with advanced optics and electronic components, this scanner converts bar code labels—including faded and low-contrast ones—into high-quality digital signals. Its ergonomic shape allows for effortless handling, making it easy to sweep across bar codes in either direction. With its lightweight design, low power consumption, and quick reading capabilities, the MS100U is the perfect tool for efficient data collection. Key features:
Rugged, lightweight design
Easy to use and configure
USB interface
Low power consumption
High scan speed
1-year warranty
Specifications:
Optical:
Light Source: 650nm Red LED
Resolution: 5 mils (0.127mm)
Depth of Field: 0.04" (1.0mm)
Scan Rate: 24 inches/sec (10 - 60 cm/sec)
Reading Angle: 45 to 90°
Print Contrast Ratio: 0.6 minimum
Mechanical:
Dimensions: 5.5 Inches (140mm) length, 1.2 x .9 Inches (30 x 23mm)
Weight: 76g
Case Material: ABS plastic
Electrical:
Supply Voltage: 5V DC ±10%
Surge Power: < 500mA
Working Current: 60mA ±10mA
Decoder Symbologies:
UPC-E, UPC-A, EAN-8, EAN-13, JAN
Code 39, Code 128, Interleaved 2 of 5, Industrial 2 of 5
ABC Codabar, Telepen, and more
Environmental:
Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C)
Humidity: 0% to 95% RH non-condensing
Unitech MS100-2G Barcode Scanner Overview
MS100 Bar Code Reader is targeted toward low reading volume / cost effective solutions. The advanced optics and electronic design converts bar code labels into a high quality digital signal. Able to read color, faded, and low contrast bar codes quickly and accurately, the MS100 is a proven solution.
