You've just added this product to the cart:

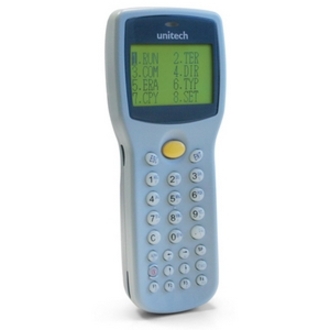

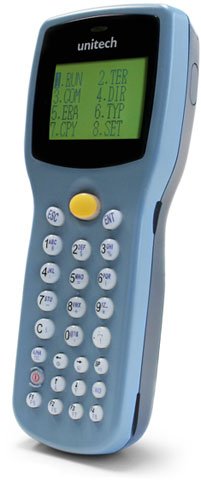

Unitech HT630-AC0A1G Mobile Handheld Computer

Unitech HT630 - 4.5MB RAM, Wide Angle Laser, Batch, DOS, Battery, RS-232 Cable, Power Adapter
27 key alphanumeric keypad

The Unitech HT630 Mobile Computer is designed to meet your demands in various applications, ranging from Transportation and Warehousing to Mobile Sales, Field Service, Retail, Meter Reading and more. Rugged and durable, yet weighing less than 250 grams, the HT630 is easy to handle. The HT630 is well-protected by a robust housing allowing multiple 4 ft. (1.2 meter) bounces off a concrete floor.

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • China Postal Code
    • Codabar
    • Code 39
    • Code 39 Full ASCII
    • Code 93
    • Code 128
    • EAN-8
    • EAN-13
    • EAN-128
    • Interleaved 2 of 5
    • ITF
    • UPC-A
    • UPC-E

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: PT630D
  • Product Name: PT630D Portable Terminal

Physical Characteristics

  • Height: 6.6"
  • Width: 2.6"
  • Length: 1.4"
  • Weight (Approximate): 8.64 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • PT630D Portable Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • JobGen Plus Software
    • PT630D Portable Terminal
    • A/C Adapter
    • Battery
    • RS232 Communication Cable
    • JobGen Plus Software
  • Certifications & Standards:
    • CE
    • FCC
  • Additional Information:
    • 16-bit 80188 compatible microprocessor
    • Interface: RS232 Via Proprietary Cable
    • Environmental sealing: IP54

Display & Graphics

  • Display Screen Type: LCD
  • Display Color: Monochrome
  • Screen Resolution: 128 x 64

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 27

Memory

  • Flash Memory: 256 KB
  • Standard Memory: 4.50 MB

Battery Information

  • Battery Capacity: 900 mAh
  • Battery Chemistry: Nickel Metal Hydride (NiMH)

Software

  • Operating System: DOS

Warranty

  • Limited Warranty: 1 Year

Full specifications (PDF)

Full specifications (PDF)

Brand Unitech
Model HT630
Style Basic

Recommended Accessories for Model: Unitech HT630 Mobile Handheld Computer
Unitech (1400-202501G)
Rechargeable Battery
In Stock: Ships Same Day
$27.70
+ Add to Quote
Unitech (PT063D-1G)
Cradle, Desktop, 1-Slot, USB and RS-232, Requires Interface Cable and Power Adapter (Sold Separately), Compatible with Unitech HT630.
In Stock: Ships Same Day
$66.00
+ Add to Quote
Unitech (PW201-2)
RS-232 to USB Adapter Cable, DB-9F to USB A Male, Straight, Gray
In Stock: Ships Same Day
$33.30
+ Add to Quote
Unitech (INVENLITE)
Lite Software for the HT630. The mobile device program allows for the following operations: Receiving, Item Transfer, Shipping, Audit, Asset Audit. The PC facing application allows you to upload batch collected data to the host PC and to generate simple reports. Includes installation and one hour of support.
$1,370.00
+ Add to Quote
Unitech (BARCOMPNH)
Barcode Compare (No History) Software for the HT630. Operator scans the first barcode and then the second barcode. Device will indicate whether the codes are a match or do not match. It does not retain a log of codes that are scanned - once the codes are compared simply move on to the next set of codes to analyze. Includes installation and one hour of support.
$661.00
