You've just added this product to the cart:

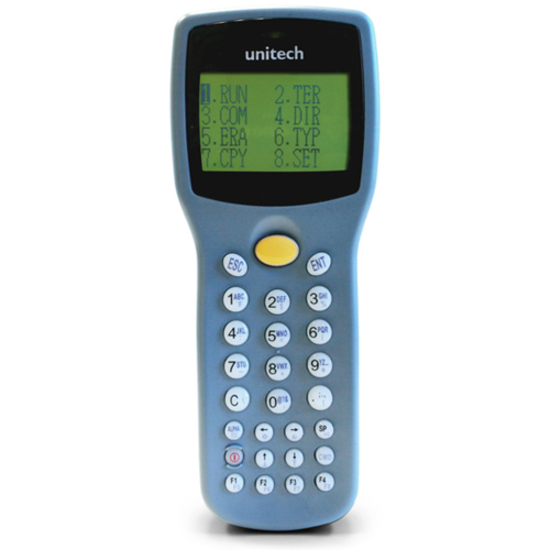

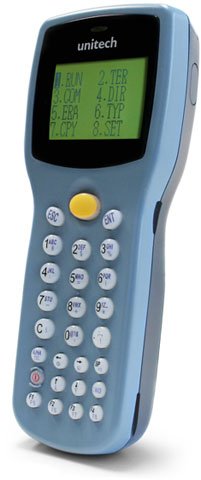

Unitech HT630-A000AADG Mobile Handheld Computer

Unitech HT630 - 512KB RAM, Wide Angle Laser, Batch, DOS, Battery, USB Cable, Power Adapter
27 key alphanumeric keypad

The Unitech HT630 Mobile Computer is designed to meet your demands in various applications, ranging from Transportation and Warehousing to Mobile Sales, Field Service, Retail, Meter Reading and more. Rugged and durable, yet weighing less than 250 grams, the HT630 is easy to handle. The HT630 is well-protected by a robust housing allowing multiple 4 ft. (1.2 meter) bounces off a concrete floor.

Technical Information

  • Connectivity Technology: Batch
  • Light Source: Laser
  • Drop Specification: 48" To Concrete
  • Barcode Symbology Supported:
    • UPC-A/E
    • EAN-8/13
    • Codabar
    • Code 39
    • Code 39 full ASCI
    • Code 93
    • Code 32
    • Interleaved 2 of 5
    • Standard 2 of 5
    • EAN 128
    • Code 11
    • Delta
    • MSI/Plessey
    • Code 128
    • Toshiba
    • EAN 128

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Unitech
  • Manufacturer: Unitech Electronics Co., Ltd
  • Product Model: HT630
  • Product Name: HT630 Mobile Computer

Physical Characteristics

  • Height: 6.6"
  • Width: 2.6"
  • Depth: 1.4"
  • Weight (Approximate): 8.60 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • HT630 Mobile Computer
    • USB Cable
    • AC Power
    • Battery
    • Manuals
    • Quick Start Guide
    • HT630 Mobile Computer
    • USB Cable
    • AC Power
    • Battery
    • Manuals
    • Quick Start Guide
  • Certifications & Standards:
    • Environmental Sealing: IP54
    • CE
    • FCC
  • Additional Information:
    • CPU: 16-bit 80188
    • LED Graphic

Battery Information

  • Battery Capacity: 900 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Memory

  • Flash Memory: 256 KB
  • Standard Memory: 512 KB

Keyboard/Keypad

  • Keyboard Type: Alphanumeric
  • Number of Keys: 27

Display & Graphics

  • Screen Size: 2.3"
  • Display Color: Monochrome

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: DOS

Full specifications (PDF)

Full specifications (PDF)

Brand Unitech
Model HT630
Style Basic
