Unitech HT630 – Mobile Computer – DOS – 4.5 MB, 4 MB

Part Number: HT630-9000CADG
Model: HT630
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

RAM Memory
4 MB, 4.5 MB
IP Rating
IP54
Operating System
DOS

Product Description:

  Mobile Computer, Unitech HT630, DOS, Bluetooth, Wi-Fi, Standard Range, 1D Laser, 4.5 MB RAM, 256 K Flash, IP54, Phone-size, Alphanumeric, Battery, USB, Power Adapter
Explore all Unitech HT630 Mobile Computers
Add to Quote

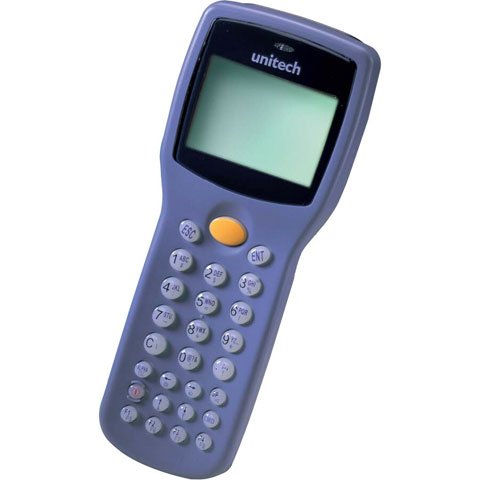

Unitech HT630-9000CADG Mobile Computer
Unitech HT630-9000CADG Mobile Computer
Unitech HT630-9000CADG Mobile Computer
Unitech HT630-9000CADG Mobile Computer Unitech HT630-9000CADG Mobile Computer

Full specifications (PDF)

Unitech HT630 Mobile Computer Model Overview

The Unitech HT630 Rugged Handheld Terminal is the one-stop shop for all 1D scanning. With either the 1D laser or CCD data collection solution, the HT630 is versatile, making it suitable in the supply chain, retail, and field service markets. All at an affordable price, the HT630 is both flexible and packs a high performance punch.
Unitech HT630-9000CADG Mobile Computer Overview

The HT630 mobile computer is designed to meet the demands of various applications, ranging from transportation and warehousing to mobile sales and retail. Rugged and durable, the HT630 can withstand multiple 4-foot drops to concrete and weighs less than 8 ounces.

The HT630 provides out-of-the-box functionality with five ready-made common applications. Its ergonomic design includes a 27-key keypad, backlit LCD screen and powerful bar code scanner, making data collection fast and easy.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Batch
Light Source:
Laser
Barcode Symbology Supported:
1D:
  • UPC-A/E
  • EAN-8/13
  • Codabar
  • Code 39
  • Code 39 full ASCI
  • Code 93
  • Code 32
  • Interleaved & Std. 2 of 5
  • EAN 128
  • Code 11
  • Delta
  • ISBN
  • MSI/Plessey
  • Code 128
  • Toshiba
  • EAN 128
Drop Specification:
59.06" To Concrete
Power Supply Included:
Yes
Processor & Chipset
Processor Speed:
80 MHz
Memory
Standard Memory:
4.50 MB
Flash Memory:
256 KB
Display & Graphics
Screen Resolution:
128 x 64
Display Screen Type:
LCD
Keyboard/Keypad
Number of Keys:
27
Keyboard Type:
Alphanumeric
Interfaces/Ports
USB:
Yes
Software
Operating System:
DOS
Battery Information
Battery Capacity:
900 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
1.4"
Width:
2.4"
Length:
6.5"
Weight (Approximate):
8.11 oz
Miscellaneous
Package Contents:
  • HT630 Mobile Computer
  • Power Supply
  • Battery
  • Cables
Certifications & Standards:
  • IP54
Regulatory:
  • BSMI
  • CCC
  • CE
  • FCC
  • VCCI
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0013271089094, 0851295001056
UPC: 013271089094, 851295001056
EAN: 0013271089094, 0851295001056
UNSPSC: 43211715

Recommended Accessories

Category

  • Batteries (2)
  • Cables, Connectors, and Adapters (6)
  • Carrying and Protective Accessories (1)
  • Docks and Cradles (5)
  • General Software (1)
  • Mobile Computer Accessories (10)
  • Power Device (1)
  • Scan Engine (1)
  • Spare Parts (1)

Recommended Accessories for Model: Unitech HT630-9000CADG Mobile Computer

Top Batteries Purchased With Unitech HT630-9000CADG

Top Cables, Connectors, and Adapters Purchased With Unitech HT630-9000CADG

See All Cables, Connectors, and Adapters for Unitech HT630-9000CADG Mobile Computer >

Top Carrying and Protective Accessories Purchased With Unitech HT630-9000CADG

Top Docks and Cradles Purchased With Unitech HT630-9000CADG

See All Docks and Cradles for Unitech HT630-9000CADG Mobile Computer >

Top General Software Purchased With Unitech HT630-9000CADG

  • Unitech INVENLITE Software
    Unitech INVENLITE Software
    Lite Software for the HT630. The mobile device program allows for the following operations: Receiving, Item Transfer, Shipping, Audit, Asset Audit. The PC facing application allows you to upload batch collected data to the host PC and to generate simple reports. Includes installation and one hour of support.
