Unitech HT580-721AAG Mobile Computer

Unitech HT630-A000BADG Mobile Computer A newer version of this item is available.
It is replaced by the Unitech HT630-A000BADG Mobile Computer.
Unitech HT580 - Unitech HT580 Mobile Computer - 2MB RAM - 512MB Flash - 4"
  • Batch connectivity - Gathers data and uploads it back to the network all at once
  • 2 MB RAM / 512 MB flash
  • DOS OS offers free and complete DOS-compatible environment to run legacy softwares and support embedded systems
Read More
Discontinued See Replacement
Add to Quote
Unitech HT580 Mobile Computer Model Overview

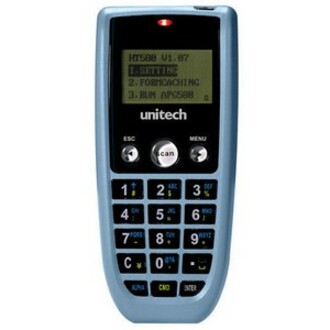

The Unitech HT580 portable barcode/data terminal incorporates a built-in CCD barcode scanner for convenient mobile scanning with a compact, lightweight terminal. A CCD scanning engine is used to make the terminal as robust as possible. HT580 has a DOS-based operating system and 512 KB of memory, allowing adequate space for user applications as well as recorded data. Flash-upgradeable firmware is included which provides a rich set of hardware support functions as well as high-level programming libraries and RS-232, USB or Bluetooth communication. These features make the HT580 well suited for warehouse management, transportation, field service, retail stock-taking, meter reading and many other applications.
Unitech HT580-721AAG Mobile Computer Overview

HT580 Mobile Computer is a great match for retail markets or other small businesses that need simple, straight forward data entry and bar code scanning. This versatile tool enhances your work effectiveness and efficiency with a compact design that is perfect for one-hand operation.

Technical Information
Connectivity Technology:
Batch
Image Sensor Type:
CCD
Barcode Symbology Supported:
  • China Postal Code
  • Codabar
  • Code 11
  • Code 32
  • Code 39
  • Code 93
  • Code 128
  • IATA 2 of 5
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Telepen
  • UK Plessey Code
  • UPC/EAN
Drop Specification:
48" To Concrete
Power Supply Included:
Yes
Memory
Standard Memory:
2 MB
Flash Memory:
512 MB
Display & Graphics
Screen Size:
4"
Screen Resolution:
128 x 64
Display Color:
Monochrome
Keyboard/Keypad
Number of Keys:
18
Software
Operating System:
DOS
Battery Information
Battery Capacity:
700 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
4.8"
Width:
2.1"
Depth:
1"
Weight (Approximate):
5.30 oz
Miscellaneous
Package Contents:
  • HT580 Mobile Computer
  • Battery
  • AC Power Supply
  • RS232 Cable
  • USB Cable
  • Protective Case
  • Hand Strap
  • CD with EZJob Software and Manuals
Additional Information:
CPU :STUPSD33554DV
Certifications & Standards:
  • IP42 electronic Enclosure
  • CE
  • FCC
  • BSMI
  • VCCI
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
Questions? Get Help from
a Mobile Expert!

What is your operating system?

The Unitech HT580-721AAG Mobile Computer is also known as UNI-HT580-701AA or HT580721AAG.
