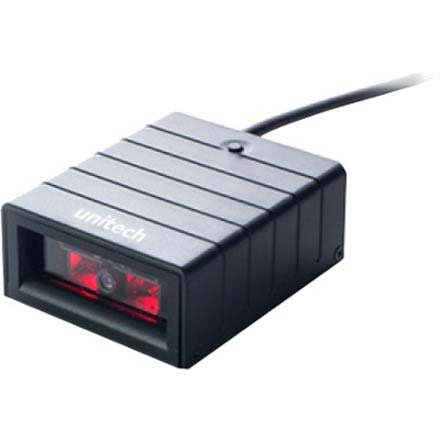

The FC75 Hands-Free Area Imager Scanner revolutionizes barcode scanning for your business with its compact design and powerful performance. This fixed mount imager efficiently reads all types of 1D and 2D barcodes, whether printed or digital, making it ideal for customer-facing environments such as retail counters or airport gates. Its durable construction ensures longevity, while both hands-free and trigger-activated scanning modes provide flexibility for your team's needs. Enhance your data collection processes with the FC75, designed to integrate seamlessly into any workspace.
Key Features
Reads printed and digital barcodes
Compact design
Scan trigger for on-demand scanning
Environmentally sealed against water and dust
Specifications
Electrical:
Power On: DC +5 V, 800mA (typical)
Operating Power: DC +5 V, 270mA (typical)
Standby Power: DC +5 V, 80mA (typical)
Optical & Performance:
Light Source: Visible red LED 625 nm
Resolution: 752 (H) x 480 (V) pixels
Scan Speed: 120 scans/sec in 1D mode, 60 scans/sec in 2D mode
Pitch: +60° (from front to back)
Skew: +60° (side to side)
Roll: 360°
Reading Indicator: Good read beep
Environmental:
Ambient Light Immunity: 100,000 lux
Operating Temperature: 0°C to 60°C (-4°F to 144°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
The tiny FC75 fixed mount imager can bring zero footprint, hands-free scanning to your business. The FC75 reads all types of barcodes on every medium efficiently and reliably.
The FC75 is a 2D area imager that reads all standard 1D and 2D symbologies, including UPC/EAN, Code 128, QR codes, and DataMatrix. It can also read mobile barcodes displayed on smartphone and tablet screens, making it ideal for coupons, loyalty cards, and boarding passes. This versatility makes it a powerful solution for modern retail and logistics environments.
Is the Unitech FC75 suitable for hands-free scanning applications?
Yes, the FC75 is a fixed mount imager designed specifically for hands-free, zero-footprint scanning operations. Its compact size (2.2" W x 2.72" D x 1.07" H) and powerful imaging capabilities allow it to be mounted in checkout lanes, conveyor systems, or other fixed locations where employees need to scan without holding a device.
What is the scan speed and reading capability of the FC75?
The FC75 delivers 120 scans per second in 1D mode and 60 scans per second in 2D mode, with a resolution of 752 (H) x 480 (V) pixels. It features a visible red LED light source at 625 nm and provides a good read beep indicator for successful scans. This performance ensures fast, reliable barcode capture in high-volume scanning environments.
What are the environmental operating conditions for the FC75?
The FC75 operates reliably in temperatures from 0°C to 60°C (-4°F to 144°F) and humidity levels of 5% to 95% RH (non-condensing). It offers excellent ambient light immunity up to 100,000 lux and can withstand a 4-foot drop. These specifications make it suitable for warehouse, retail, and logistics environments with varying conditions.
What power requirements does the Unitech FC75 have?
The FC75 requires DC +5V power input and draws 800mA during power-on, 270mA during typical operation, and 80mA in standby mode. This low power consumption makes it efficient for continuous use in fixed mounting applications. We offer the FC75 scanner only without cable, so you'll need to source compatible cabling for your installation.
What warranty and certifications does the FC75 include?
The Unitech FC75 comes with a 3-year warranty and holds CE and FCC Class B regulatory approvals, ensuring compliance with international standards. Contact us today to discuss warranty options and ensure the FC75 meets your facility's compliance requirements.
The Unitech FC75-2UCB00-SG Fixed Barcode Scanner is also known as
UNI-FC75-2UCB00-SG
or FC752UCB00SG.
Full specifications (PDF)
