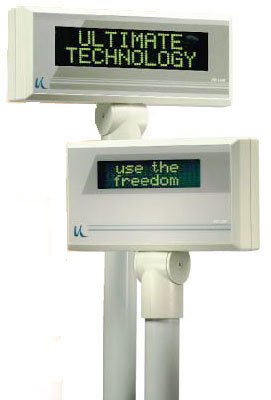

Ultimate Technology PD1100TS-11388 Customer Pole Display
Ultimate Technology PD1100TS-11388 Customer Pole Display
Ultimate Technology PD1100 -
2 line x 20 column Green vacuum fluorescent display, 10.5 MM character height, with 9-pin Serial with pass-through. Color: Black>
Designed to suit virtually any POS environment, the PD1100 Pole Displays from Ultimate Technology are as user-friendly as they are customer-friendly.
They're as user friendly as they are customer friendly, ideal for virtually any POS environment. All are US assembled and feature selectable baud rates, 360-degree pole rotation, 20-degree tilt, and menu-driven selectable parameters via external switches. Text flashing and vertical scrolling options are also available. All feature outstanding, field-proven performance, based on tens of thousands of installations.
Technical Information
- Display Method: Vacuum Fluorescent Display (VFD)
- Display Color: Green
- Number of Characters: 20x2
- Brightness: 690 cd/m2
- Character Font: 5 x 7 Dot Matrix
- Character Type: ASCII
- Character Size: 5.5mm x 10.5mm
- Interfaces/Ports: Serial Pass-Thru
- Connectors: DB-9 Female Connector
General Information
- Manufacturer: Ultimate Technology Corporation
- Product Name: PD1100TS Pole Display
Physical Characteristics
- Weight: 2.5 lb (1.13 kg) - Without Mount
- Color: Black
Environmental Conditions
- Temperature:
- 0°C (32°F) to 50°C (122°F) Operating
- -40°C (-40°F) to 70°C (158°F) Storage
- Humidity: 90% Non-condensing
Agency Approvals
- Agency Approvals:
- FCC Class A
- UL
- CUL
Warranty
- Manufacturer Warranty: 3 Year(s)
Full specifications (PDF)| Brand | Ultimate Technology |
| Model | PD1100 |
The Ultimate Technology PD1100TS-11388 is also known as PD1100TS-11388 or PD1100TS11388 .
