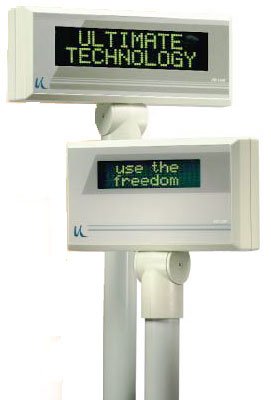

Ultimate Technology PD1100S-11343 Customer Pole Display

Ultimate Technology PD1100 - 2x20 display, 10.5 mm character height, with serial interface. Includes 9-pin cable & power supply. Color: black.
Designed to suit virtually any POS environment, the PD1100 Pole Displays from Ultimate Technology are as user-friendly as they are customer-friendly.

They're as user friendly as they are customer friendly, ideal for virtually any POS environment. All are US assembled and feature selectable baud rates, 360-degree pole rotation, 20-degree tilt, and menu-driven selectable parameters via external switches. Text flashing and vertical scrolling options are also available. All feature outstanding, field-proven performance, based on tens of thousands of installations.

Technical Information

  • Display Method: Vacuum Fluorescent Display (VFD)
  • Display Color: Green
  • Number of Characters: 20x2
  • Brightness: 690 cd/m2
  • Character Font: 5 x 7 Dot Matrix
  • Character Type: ASCII
  • Character Size: 5.5mm x 10.5mm
  • Character Pitch: 7.4 mm
  • Interfaces/Ports: RS-232
  • Connectors: DB-9 Female Connector
  • Input Voltage: 9 V DC

General Information

Physical Characteristics

  • Dimensions:
    • 23" (584mm) x 8.75" (222mm) x 1.80" (46mm)
    • 23" (584mm) x 8.75" (222mm) x x 1.80" (46mm)
  • Weight: 2.50 lb (1.13 kg)
  • Color: Black

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 90% Non-condensing

Agency Approvals

  • Agency Approvals: FCC Class A, Part 15

Full specifications (PDF)



The Ultimate Technology PD1100S-11343 is also known as PD1100S-11343 or PD1100S11343 .
