UIC MSR280-33RMDTBBR Credit Card Swiper

Overview

Full specifications (PDF)

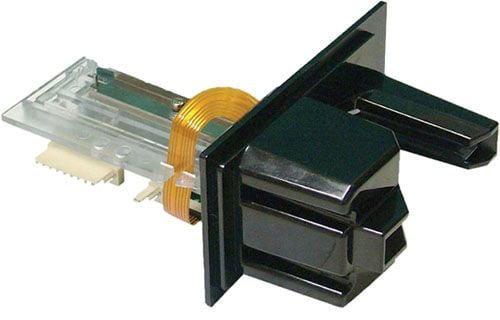

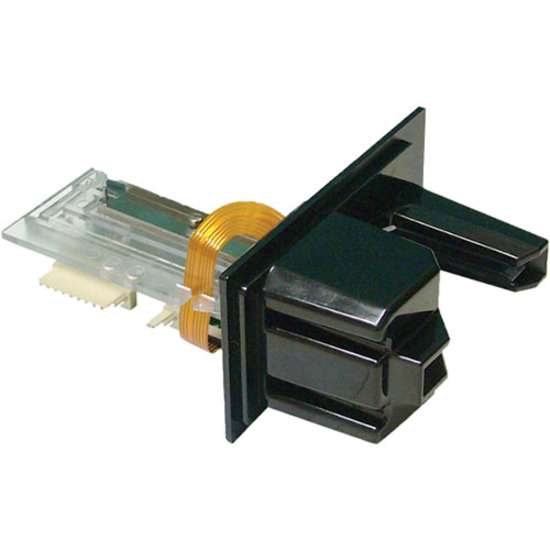

UIC MSR280 Credit Card Reader Model Overview

The MSR280 is a special designed waterproof reader. It can be installed in retail system, time keeping systems, security systems and other card reader related systems, which require moisture resistance in a harsh outdoor location. The model is designed to offer user a card reader solution that will complement many applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Number of Read Heads:

Magnetic Stripe Coercivity:

Low Coercivity (LoCo)
High Coercivity (HiCo)

Magnetic Stripe Track Configuration:

Triple Track

Magnetic Stripe Track Number:

Track 1
Track 2
Track 3

Minimum Swipe Speed:

4 in/s

Maximum Swipe Speed:

40 in/s

Number of Swipes (Head Life):

500000

Magnetic Stripe Format:

ISO 7811

Bi-directional Reading:

Yes

Interfaces/Ports

Serial:

Yes

Reliability

MTBF:

100000 Hour

Power Description

Input Voltage:

5 V DC

Physical Characteristics

Height:

Width:

3.7"

Length:

4.8"

Weight (Approximate):

4.23 oz

Miscellaneous

Additional Information:

Read magnetic stripe cards comply with ISO 7811
Read high and low coercivity magnetic stripes (300-4000Oe)
Manual full insert
Bi-directiional sends data when insert or withdraw card
Dual heads design provides user friendly operation

Certifications & Standards:

FCC Class B
CE Class B

Environmentally Friendly:

Yes

Item Numbers

UNSPSC: 43211702

Reviews

Q&A

Questions? Get help from
a POS Expert!

The UIC MSR280-33RMDTBBR Credit Card Reader is also known as MSR28033RMDTBBR

UIC MSR280-33RMDTBBR Credit Card Reader

Need a different version? See all UIC MSR280 Credit Card Readers
