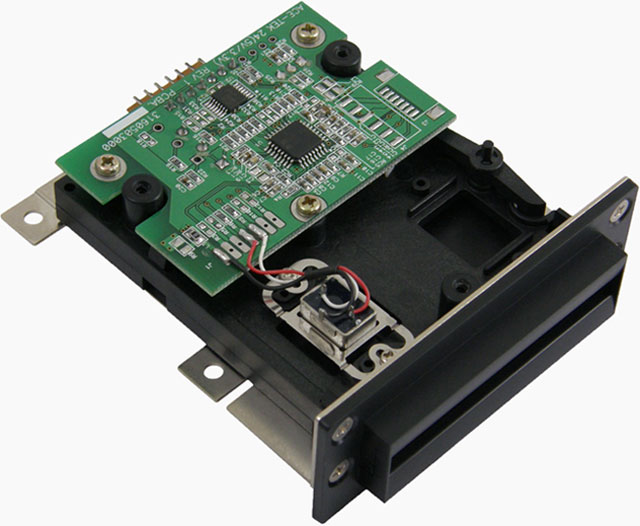

UIC MSR240-02TMRNWWBR Credit Card Reader

The MSR240 Magnetic Card Reader is specifically designed for effortless data capture, making it an ideal choice for gaming systems, access control systems, and various card reader-related applications. With its manual insertion capability and compatibility with ISO7811 cards, it simplifies transactions and ensures reliable performance. The reader operates with low power consumption and is engineered to read high and low coercivity magnetic stripes ranging from 300 to 4000 Oe. Built to withstand a wide range of environmental conditions, the MSR240 promises durability and efficiency in all operational settings.

• Reads ISO7811 compatible cards
• Supports high and low coercivity magnetic stripes (300-4000 Oe)
• Power efficient with low consumption
• Designed for varied applications including gaming and access control

• Power Requirement: +3.0VDC
• Interface: TTL, RS232, USB
• Body Material: ABS+10%GF
• Dimensions: 78L x 60W x 21H mm
• Weight: Approx. 50g
• Operation Temperature: -10°C to +50°C
• Storage Temperature: -30°C to +70°C
• Operation Humidity: 15% to 90% non-condensing
• Storage Humidity: 10% to 90%
• Read Speed: 4-40 ips (standard card)
• Read Capability: Supports single, dual, or triple track
• Card Thickness: 0.76±0.08mm
• Magnetic Head Life: 500K minimum insertion cycles
