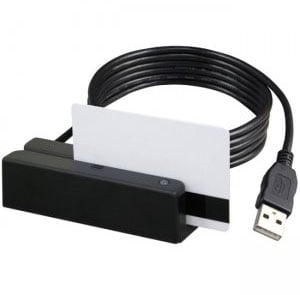

UIC MSR213U-33AUKNR Credit Card Reader

Part Number: MSR213U-33AUKNR
Model: MSR213U
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$57.85
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Magnetic Stripe Coercivity
High Coercivity (HiCo)Low Coercivity (LoCo)
Magnetic Stripe Track Configuration
Triple Track
Magnetic Stripe Track Number
Track 1Track 3Track 2
Minimum Swipe Speed
5 in/s

Product Description:

  MSR reader, Swipe type, USB interface, triple tracks, buzzer/LED, Black
Explore all UIC MSR213U Credit Card Readers
Add to Quote
UIC MSR213U-33AUKNR Credit Card Reader
UIC MSR213U-33AUKNR Credit Card Reader
UIC MSR213U-33AUKNR Credit Card Reader UIC MSR213U-33AUKNR Credit Card Reader
Full specifications (PDF)

UIC MSR213U Credit Card Reader Model Overview

The USB Magnetic Stripe Card Reader, MSR213U Series, is a high-performance device designed for efficient card reading. Perfect for retail and service environments, it effortlessly reads magnetic stripe cards that conform to ISO 7811 and AAMVA standards. With support for both high and low coercivity magnetic stripes, this reader is versatile and reliable, capable of over 1,000,000 card swipes. Its compact design and USB interface make it easy to integrate into existing systems without the need for additional drivers. The LED and beeper provide real-time reading status, ensuring smooth operation at all times.


Key Features
  • Multi-Interface Options: Configurable as USB HID or USB keyboard emulation.
  • Efficient Design: Low power consumption with a maximum of 35mA.
  • Durability: Reliable for over 1,000 swipes with ESD protection up to 15 kV.
  • Ease of Use: Manual swipe with bi-directional reading capability.
  • Built-in Notifications: LED and beeper indicate reading status.

Specifications
  • Model: MSR213U Series
  • Power Requirement: 5VDC ± 5% from USB Port
  • Dimensions: 100L x 34W x 28H mm
  • Weight: Approx. 120g
  • Card Handling Method: Manual swipe, bi-directional
  • Operating Temperature: -10°C to +55°C
  • Storage Temperature: -40°C to +70°C
  • Humidity: 5% to 95% (operating & storage)
  • Read Capability: Single, dual, or triple track magnetic cards
  • Magnetic Head Life: 1M Swipes
Full specifications (PDF)
Technical Information
Magnetic Stripe Coercivity:
  • High Coercivity (HiCo)
  • Low Coercivity (LoCo)
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 3
  • Track 2
Minimum Swipe Speed:
5 in/s
Maximum Swipe Speed:
55 in/s
Number of Swipes (Head Life):
1000000
Bi-directional Reading:
Yes
Interfaces/Ports
Keyboard Wedge:
Yes
USB:
Yes
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Product Color:
Black
Height:
1.1"
Width:
1.3"
Length:
3.9"
Weight (Approximate):
4.23 oz
Miscellaneous
Additional Information:
  • Firmware downloadable
  • Manual swipe, bi-directional with USB interface output.
  • Read high and low coercivity magnetic stripes (300- 4000 Oe)
Certifications & Standards:
  • BSMI
  • CE class A
  • ISO 7811
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0778889964057, 4963273133515
UPC: 778889964057
EAN: 0778889964057, 4963273133515
UNSPSC: 43211702
