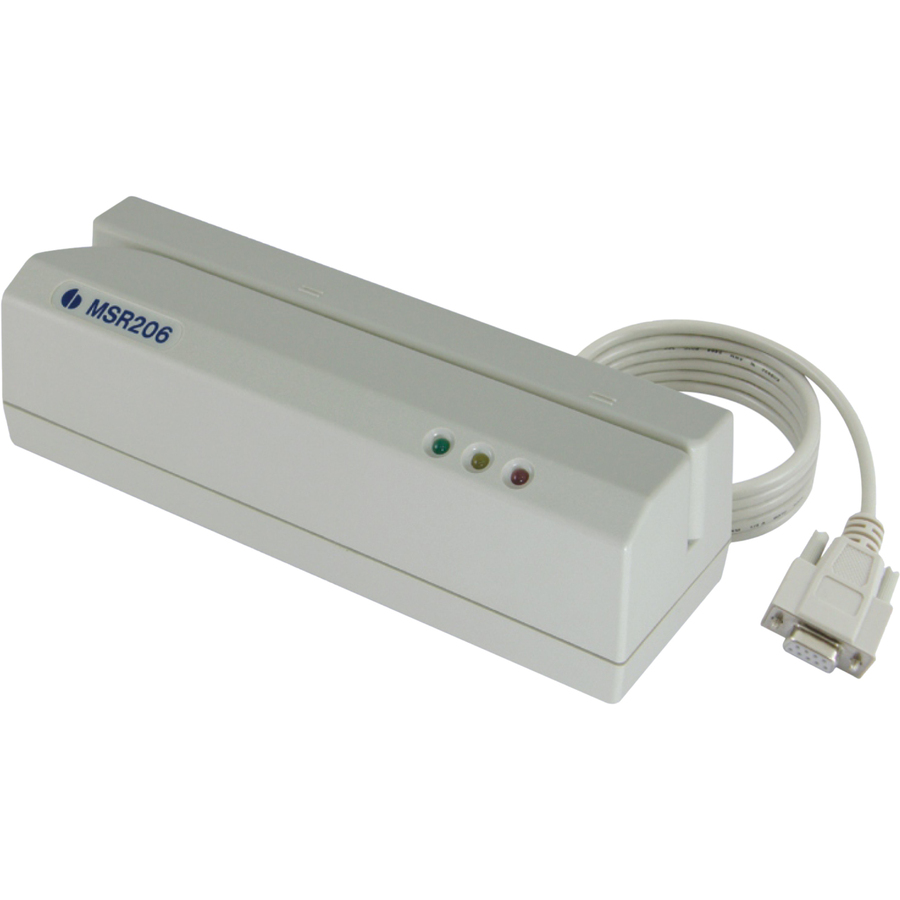

Manual swipe read/write with RS-232 interface

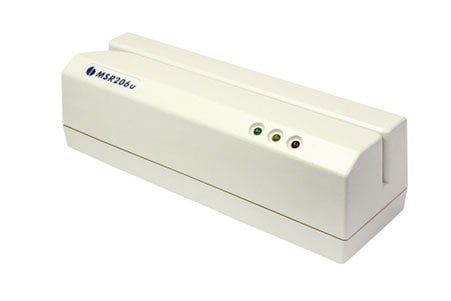

The UIC MSR206U magnetic stripe reader and writer conforms to ISO 7811 1 to 6 formats. It reads and writes up to 3 tracks of data (i.e. decoding/ encoding and verifying data) simultaneously and achieves this in one swipe for single, dual or triple tracks. It writes high or high & low coercivity magnetic stripes.
Technical Information
- Magnetic Stripe Track Configuration: Triple Track
- Magnetic Stripe Coercivity:
- High Coercivity (HiCo)
- Low Coercivity (LoCo)
- Minimum Swipe Speed: 5 in/s
- Maximum Swipe Speed: 35 in/s
- Magnetic Stripe Track Number:
- Magnetic Head Life: 1000000 Swipe
General Information
- Product Type: Magnetic Stripe Reader
- Product Series: MSR206
- Brand Name: Uniform Industrial
- Manufacturer: Uniform Industrial Corporation
- Product Model: MSR206U
- Product Name: MSR206U Magnetic Stripe Reader
Physical Characteristics
- Height: 2.4"
- Width: 2.6"
- Length: 8.3"
- Weight (Approximate): 3.31 lb
Interfaces/Ports
- Interfaces/Ports:
- 1 x RS-232 Serial
- 1 x USB
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- Package Contents:
- MSR206U Magnetic Stripe Reader
- Switch Power Supply
- Power Cord
- Signal Cable
- Utility Disk
- Blank Hi-Co Test Card
- Programmers Value
- MSR206U Magnetic Stripe Reader
- Switch Power Supply
- Power Cord
- Signal Cable
- Utility Disk
- Blank Hi-Co Test Card
- Programmers Value
- Certifications & Standards:
- ISO 7811/1-6
- CE
- FCC
- UL
- cUL
- EN 50 082-1: 1992
- EN 55 022: 1994 Class B
- IEC 801-2: 1984
- EN 61000-3-2: 1995 Class A
- IEC 801-3: 1984
- EN 61000-3-3: 1995
- IEC 801-4: 1988
- Additional Information:
- Manual swipe read/write with RS-232 interface or USB interface
- Write high or high & low coercivity magnetic stripes
- Full featured WIN98/2000/XP utility Domo program
- Programmable data format
Environmental Conditions
- Humidity:
- 10% to 85% Operating
- 10% to 90% Storage
- Temperature:
- 14°F (-10°C) to 131°F (55°C) Operating
- -22°F (-30°C) to 158°F (70°C) Storage
Full specifications (PDF)
