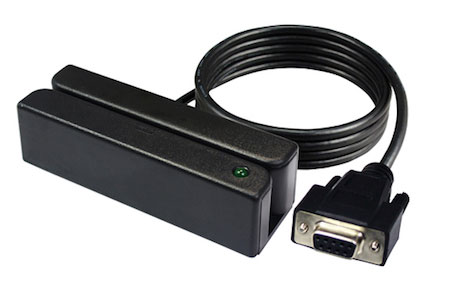

UIC MSR112A-33WBKNR Credit Card Reader

The MSR110, MSR112, and MSR210 Magnetic Stripe Card Readers are essential tools for seamless data management. Designed for versatility, these card readers ensure quick and efficient scanning of magnetic stripe cards conforming to ISO 7811, AAMVA, and custom data formats. Featuring bi-directional manual swipe capability and a user-friendly interface, these readers are perfect for various applications, from retail to access control systems. With robust build quality and multiple interface options, they are engineered to deliver reliable performance in diverse environments.

• Multiple models optimized for different interfaces: RS232 (MSR110 & MSR112), Keyboard (MSR210)
• Programmable track data output for tailored usage
• Read capacity: Dual and triple track magnetic stripes (300-4000 Oe)
• LED and beeper for real-time read status feedback
• Compact and lightweight: Approx. 120g for portability

• MSR110
• Power Requirement: +5VDC±10%
• Power Consumption: 90mA Max
• Dimensions: 100L x 34W x 28H mm
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% to 90%
• MSR112
• Power Requirement: Port powered
• Power Consumption: 6mA Max
• Dimensions: 100L x 34W x 28H mm
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% to 90%
• MSR210
• Power Requirement: +5VDC from PC KB port
• Power Consumption: 90mA Max
• Dimensions: 100L x 34W x 28H mm
• Operating Temperature: -10°C to +55°C
• Operating Humidity: 10% to 90%
• Performance
• Read Speed: 5-55 ips
• Error Rate: <0.5%
• Magnetic Head Life: 500K Swipes, 1M life optional
