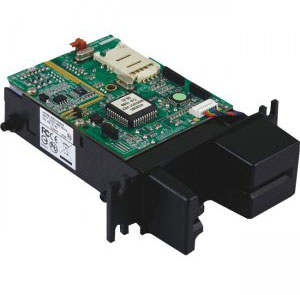

UIC HCR360-33UH1TUNNR Credit Card Reader

UIC HCR360 - Hybrid reader, Full insert, USB interface, triple tracks, T Bezel, Cable, RoHS
$174.14
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
UIC HCR360 Credit Card Reader Model Overview
The HCR360 is an intelligent manually operated insert reader for magnetic stripe card and smart cards (ICC). The modules can simultaneously read up to three tracks of magnetic data and interface with asynchronous card types (CPU cards) and many types of synchronous ICCs (memory cards).
Technical Information
Magnetic Stripe Coercivity:
  • Low Coercivity (LoCo)
  • High Coercivity (HiCo)
Magnetic Stripe Track Configuration:
Triple Track
Magnetic Stripe Track Number:
  • Track 1
  • Track 2
  • Track 3
Minimum Swipe Speed:
4 in/s
Maximum Swipe Speed:
40 in/s
Number of Swipes (Head Life):
500000
Interfaces/Ports
USB:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Height:
1.2"
Width:
3.9"
Length:
4.7"
Weight (Approximate):
4.41 oz
Miscellaneous
Additional Information:
  • EMV Level 1 certificated
  • PC/SC compliance
  • IC Card landing contact
  • Program firmware upgradeable
  • Coin Drop
  • Card Latching capability
  • Power fail auto unlatching
Certifications & Standards:
  • FCC class B
  • CE class B
  • BSMI class B
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
14 Month
Item Numbers
UNSPSC: 43211702
Questions? Get help from
a POS Expert!

What is your POS application?

The UIC HCR360-33UH1TUNNR Credit Card Reader is also known as HCR36033UH1TUNNR
