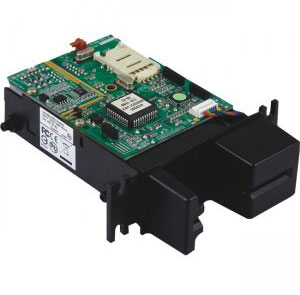

UIC HCR360-33RH1TWWBR Credit Card Reader


0.0

(No reviews)

Be the first to

Write a Review
UIC HCR360 - Hybrid reader, Full insert, RS-232 interface, triple tracks, T Bezel, No Cable, No PS
$126.40
Ships in 3-5 Days
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Card latching capability and power fail auto unlatching

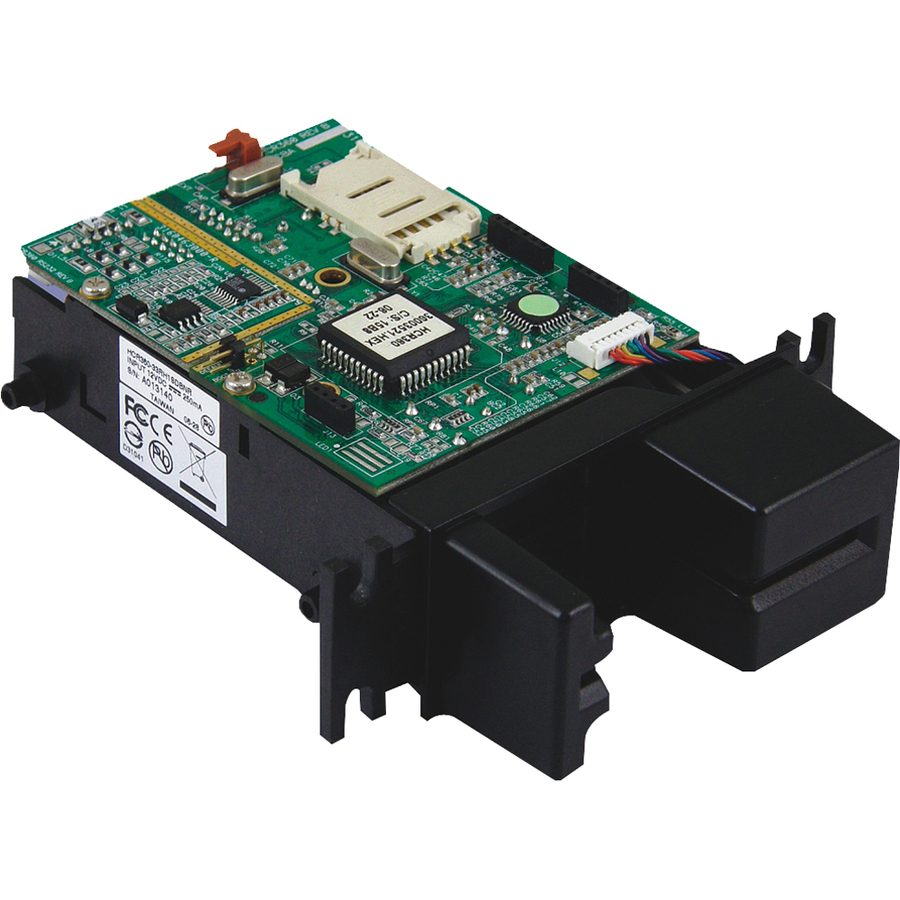

The HCR360 is an intelligent manually operated insert reader for magnetic stripe card and smart cards (ICC). The modules can simultaneously read up to three tracks of magnetic data and interface with asynchronous card types (CPU cards) and many types of synchronous ICCs (memory cards).

Technical Information

  • Magnetic Stripe Track Configuration: Triple Track
  • Magnetic Stripe Coercivity:
    • Low Coercivity (LoCo)
    • High Coercivity (HiCo)
  • Minimum Swipe Speed: 4 in/s
  • Maximum Swipe Speed: 40 in/s
  • Magnetic Stripe Track Number:
    • Track 1
    • Track 2
    • Track 3
  • Magnetic Head Life: 500000 Swipe

General Information

  • Product Type: Magnetic Stripe Reader
  • Brand Name: Uniform Industrial
  • Manufacturer: Uniform Industrial Corporation
  • Product Model: HCR360
  • Product Name: HCR360 Magnetic Stripe Reader

Physical Characteristics

  • Height: 1.2"
  • Width: 3.9"
  • Depth: 4.7"
  • Weight (Approximate): 4.41 oz

Interfaces/Ports

  • Interfaces/Ports: RS-232 Serial

Other

  • Certifications & Standards:
    • FCC Class A
    • CE Class A
    • UL
    • cUL
    • BSMI Class B
  • Additional Information:
    • EMV 2000 Level 1 Certified
    • PC/SC compliance
    • Read/write smart cards conform to ISO 7816
    • Read magnetic stripe cards conform to ISO 7811, AAMVA, DMV
    • Support Memory and CPU cards T=1 / T=0
    • IC Card landing contact
    • Built-in one SAM (Security Access Module) socket
    • Program firmware upgrade able
    • Coin Drop
    • Card Latching capability
    • Power fail auto unlatching
    • Support USI2, TLP-224 & TLP-224 Turbol protocol
    • Optional Bi-color LED indication
    • Optional gate
    • Optional 4 SAM module

Environmental Conditions

  • Humidity:
    • 15% to 90% Operating
    • 10% to 90% Storage
  • Temperature:
    • 14°F (-10°C) to 122°F (50°C) Operating
    • -22°F (-30°C) to 158°F (70°C) Storage

Power Description

  • Input Voltage: 12 V DC

Full specifications (PDF)
