Recording Formats:
HD
HD Recording:
Yes

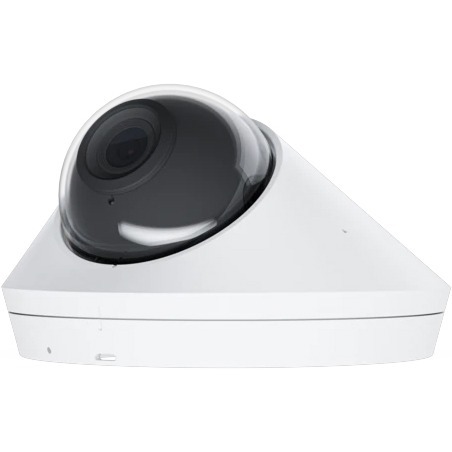

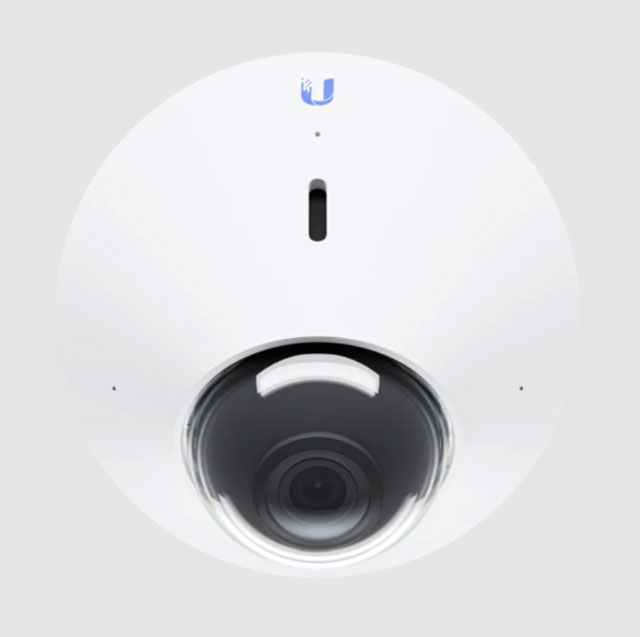

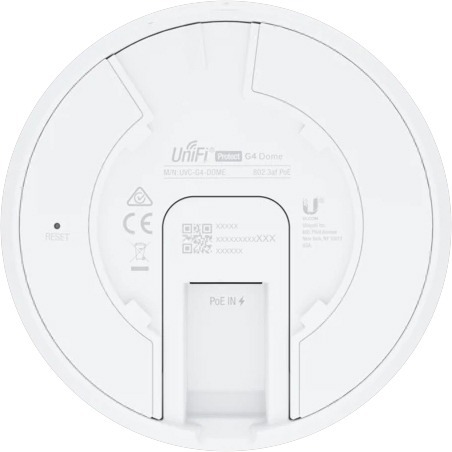

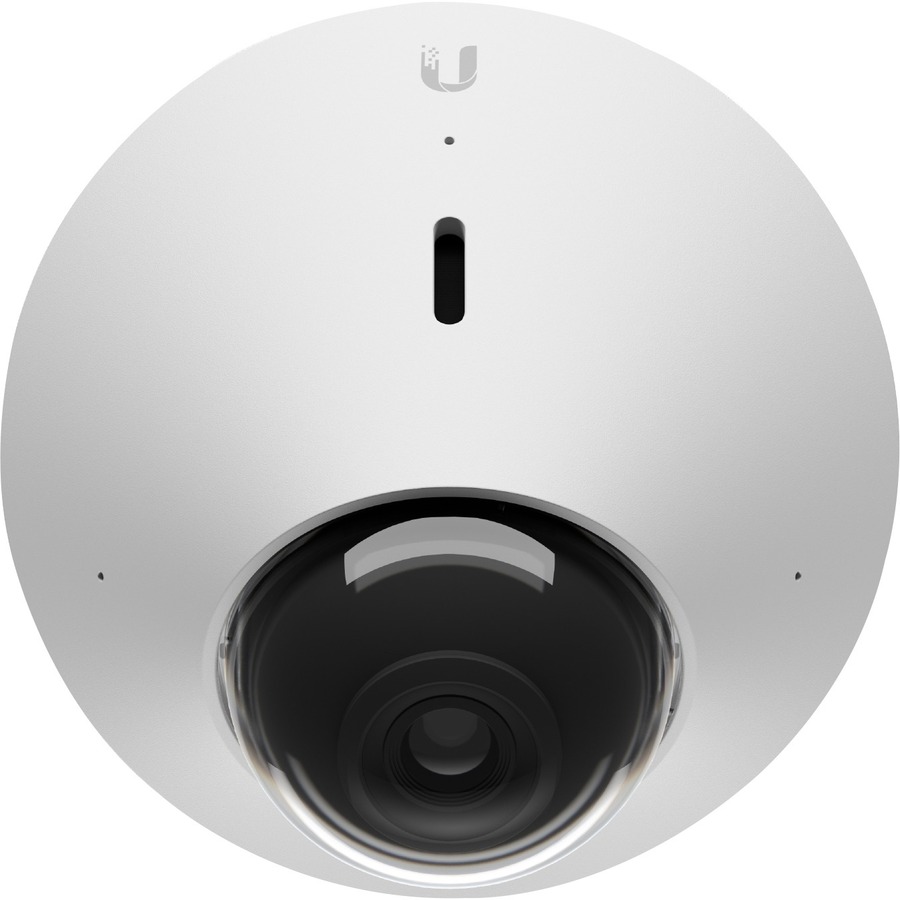

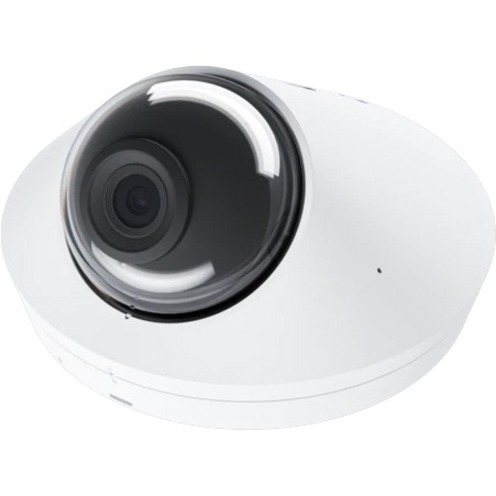

Ubiquiti Networks UVC-G4-DOME Security Camera
Part Number:
UVC-G4-DOME
Model:
Parts
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H: 86°, V: 60°, D: 111°
Effective Camera Resolution:
4 Megapixel
Video
Video Formats:
H.264
Maximum Video Resolution:
2688 x 1512
Maximum Frame Rate:
24 fps
Lens
Lens Type:
Fixed
Lens Included:
Yes
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Form Factor:
Dome
Durability:
- Vandal Resistant
- Weather Proof
Diameter:
4.3"
Weight (Approximate):
13.05 oz
Environmental Conditions
Minimum Operating Temperature:
-4°F (-20°C)
Maximum Operating Temperature:
104°F (40°C)
Maximum Operating Humidity:
90%
Miscellaneous
Features:
- Built-in Microphone
- Built-in Speaker
- Light Sensor
- Built-in IR LED
- Noise Reduction
- Motion Detection
Indoor/Outdoor:
Indoor/Outdoor
Impact Protection Rating:
IK08
Ingress Protection Rating:
IPX4
Item Numbers
GTIN:
0810010073013
UPC:
810010073013
EAN:
0810010073013
UNSPSC:
46171610
Frequently Asked Questions
What is the video resolution and frame rate of the Ubiquiti UVC-G4-DOME camera?
The UVC-G4-DOME delivers 1080p Full HD video at 1920x1080 resolution with a maximum frame rate of 30 FPS. This combination provides clear, smooth surveillance footage suitable for most security monitoring applications. We offer this camera as part of our comprehensive UniFi Protect line available from us at barcodesinc.com.
What power options does the UVC-G4-DOME support?
The UVC-G4-DOME supports both 802.3af PoE (Power over Ethernet) and 24V Passive PoE, with maximum power consumption of just 4W. A 24V, 0.5A PoE adapter is included with single-pack purchases, making installation flexible for various network environments. Contact us today for guidance on powering multiple cameras in your deployment.
Does the UVC-G4-DOME have night vision capability?
Yes, the UVC-G4-DOME includes IR LEDs with a mechanical IR cut filter for night mode operation. This allows the camera to capture video in low-light and dark conditions without requiring additional lighting infrastructure.
What are the operating temperature and humidity ranges for this camera?
The UVC-G4-DOME operates reliably in temperatures from -30 to 70°C (-22 to 158°F) and humidity levels between 20-90% noncondensing. These specifications make it suitable for both indoor and outdoor installations across diverse climate conditions. Visit barcodesinc.com to verify environmental compatibility for your specific deployment location.
What are the viewing angle specifications for the UVC-G4-DOME?
The UVC-G4-DOME offers a 100.4° horizontal, 59.1° vertical, and 117.3° diagonal viewing angle before lens correction, and 87.8° horizontal, 55.4° vertical, and 96.4° diagonal after lens correction. These wide angles provide comprehensive coverage for most surveillance scenarios.
What UniFi Video system requirements are needed to support this camera?
The UVC-G4-DOME requires UniFi Video 3.2 or newer and a 64-bit system running Windows 10/8/7, Ubuntu 12.04/14.04, or Debian 7.0 with an Intel or compatible 1.86 GHz processor and minimum 2 GB RAM. Contact us today if you need assistance determining system compatibility for your infrastructure.
The Ubiquiti Networks UVC-G4-DOME Security Camera is also known as
UBI-UVCG4DOME
