Recording Formats:
HD
HD Recording:
Yes

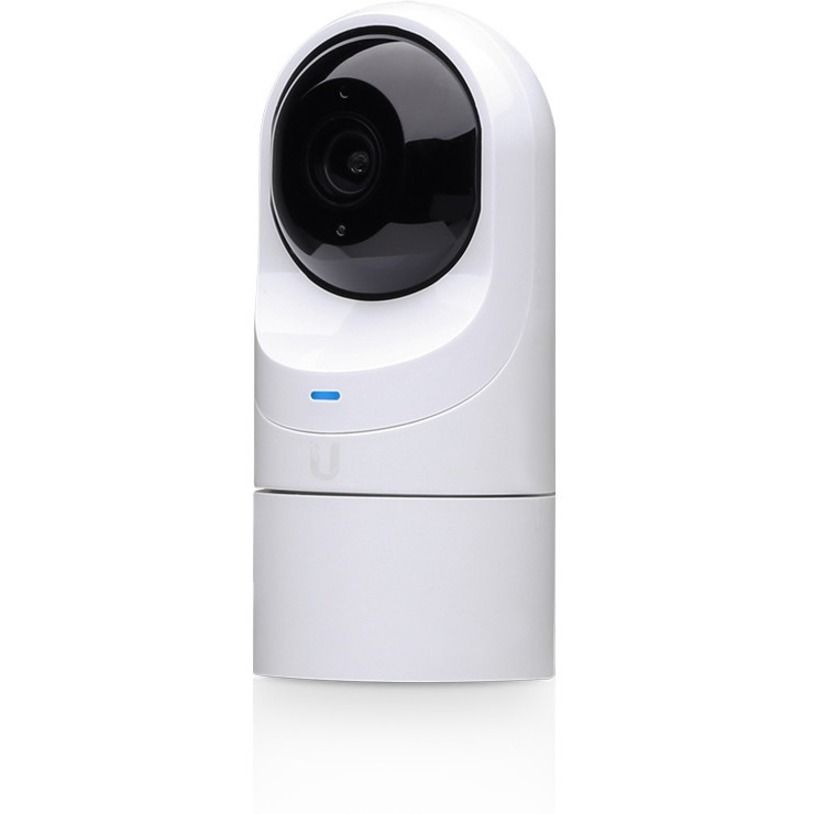

Ubiquiti Networks UVC-G3-FLEX Security Camera
Part Number:
UVC-G3-FLEX
Model:
Parts
Technical Information
Display & Graphics
Color Supported:
Color
Effective Camera Resolution:
2.1 Megapixel
Video
Maximum Video Resolution:
1920 x 1080
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Surface Mount
- Pole Mount
- Wall Mount
Height:
48"
Miscellaneous
Package Contents:
- UniFi Protect G3-FLEX Camera
- Wall Mount
- Pole Mount
- Flat Surface Mount
Item Numbers
GTIN:
0085783298998, 0696552178030, 0817882024327, 0818241716815, 0818243642808, 0818249430959, 0818254520874, 0818287669731, 0996589502205, 0997966561884
UPC:
085783298998, 696552178030, 817882024327, 818241716815, 818243642808, 818249430959, 818254520874, 818287669731, 996589502205, 997966561884
EAN:
0085783298998, 0696552178030, 0817882024327, 0818241716815, 0818243642808, 0818249430959, 0818254520874, 0818287669731, 0996589502205, 0997966561884
UNSPSC:
46171610
Frequently Asked Questions
What is the resolution and frame rate of the Ubiquiti UVC-G3-FLEX camera?
The UVC-G3-FLEX delivers 1080p Full HD video at 1920x1080 resolution with a maximum frame rate of 30 FPS, making it suitable for clear surveillance in warehouses and logistics facilities. The camera uses H.264 video compression to optimize bandwidth and storage efficiency.
What power supply and connectivity options does this camera require?
The UVC-G3-FLEX operates on 24V Passive PoE (Power over Ethernet) with a maximum power consumption of just 4W, and includes a 24V, 0.5A PoE adapter with the single-pack purchase. It features one 10/100 Ethernet port for network connectivity and integrates seamlessly with UniFi Video systems.
What mounting options are available for the UVC-G3-FLEX?
The camera supports multiple mounting configurations including wall, ceiling, and pole mounting, giving you flexibility to position it optimally in your facility. The compact design with dimensions of 75 x 140 mm (2.95 x 5.51") makes it suitable for various installation scenarios.
Does the UVC-G3-FLEX have night vision capability?
Yes, the camera includes IR LEDs with a mechanical IR cut filter for night mode operation, enabling surveillance in low-light conditions. This feature is essential for 24/7 monitoring in warehouses and logistics environments.
What are the operating temperature and humidity ranges for this camera?
The UVC-G3-FLEX operates reliably in temperatures ranging from -30 to 70°C (-22 to 158°F) and humidity levels of 20-90% noncondensing. The injection-molded polycarbonate and die-cast aluminum enclosure provides durability for both indoor and outdoor deployments.
Is the UVC-G3-FLEX compatible with existing UniFi Video systems?
The camera is compatible with UniFi Video 3.2 or newer and works with 64-bit Windows systems (10/8/7), Ubuntu (12.04 or 14.04), or Debian 7.0 running on a processor of 1.86 GHz or above with a minimum of 2 GB RAM. Contact us today to ensure compatibility with your specific infrastructure setup.
The Ubiquiti Networks UVC-G3-FLEX Security Camera is also known as
UBI-UVCG3FLEX
