Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.

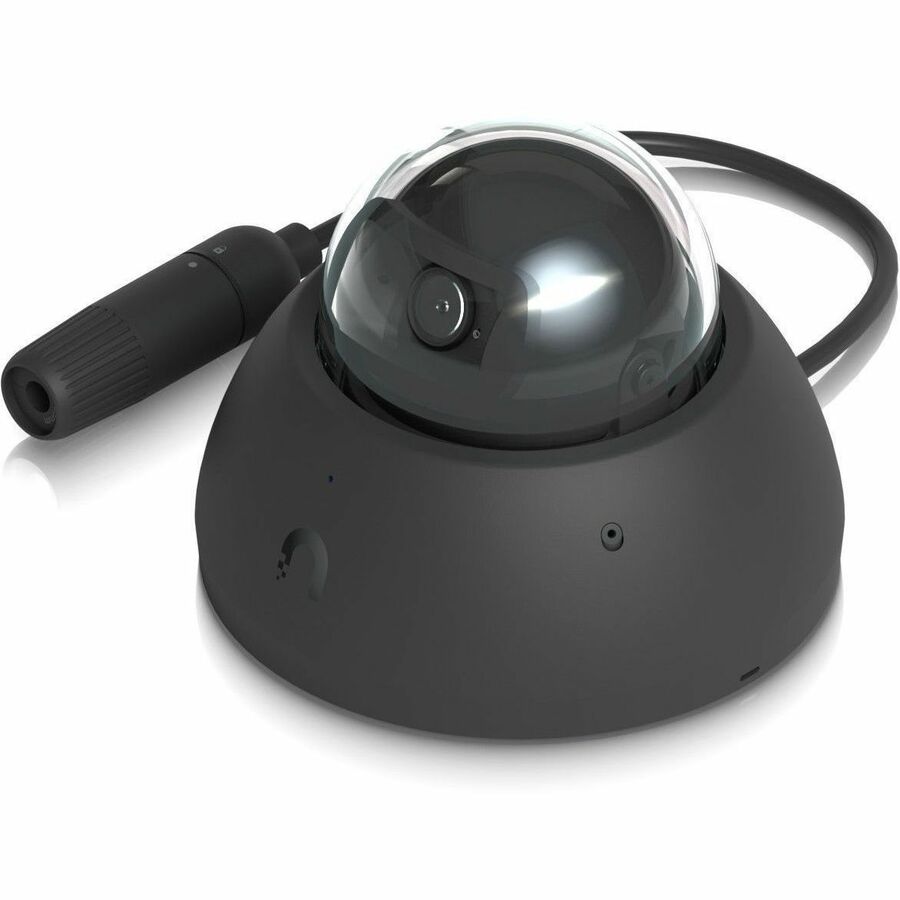

What resolution and frame rate does the Ubiquiti UVC-AI-DOME-B camera support?
The UVC-AI-DOME-B delivers 1080p Full HD resolution (1920x1080) at a maximum frame rate of 30 FPS, making it suitable for clear surveillance in warehouse and logistics environments. This combination provides sharp image quality for monitoring inventory and access points.
How is the Ubiquiti UVC-AI-DOME-B powered?
The camera is powered via 802.3af PoE (Power over Ethernet) or 24V Passive PoE, with a maximum power consumption of just 4W. A 24V, 0.5A PoE adapter is included with single-pack purchases, simplifying deployment in facilities without dedicated PoE infrastructure.

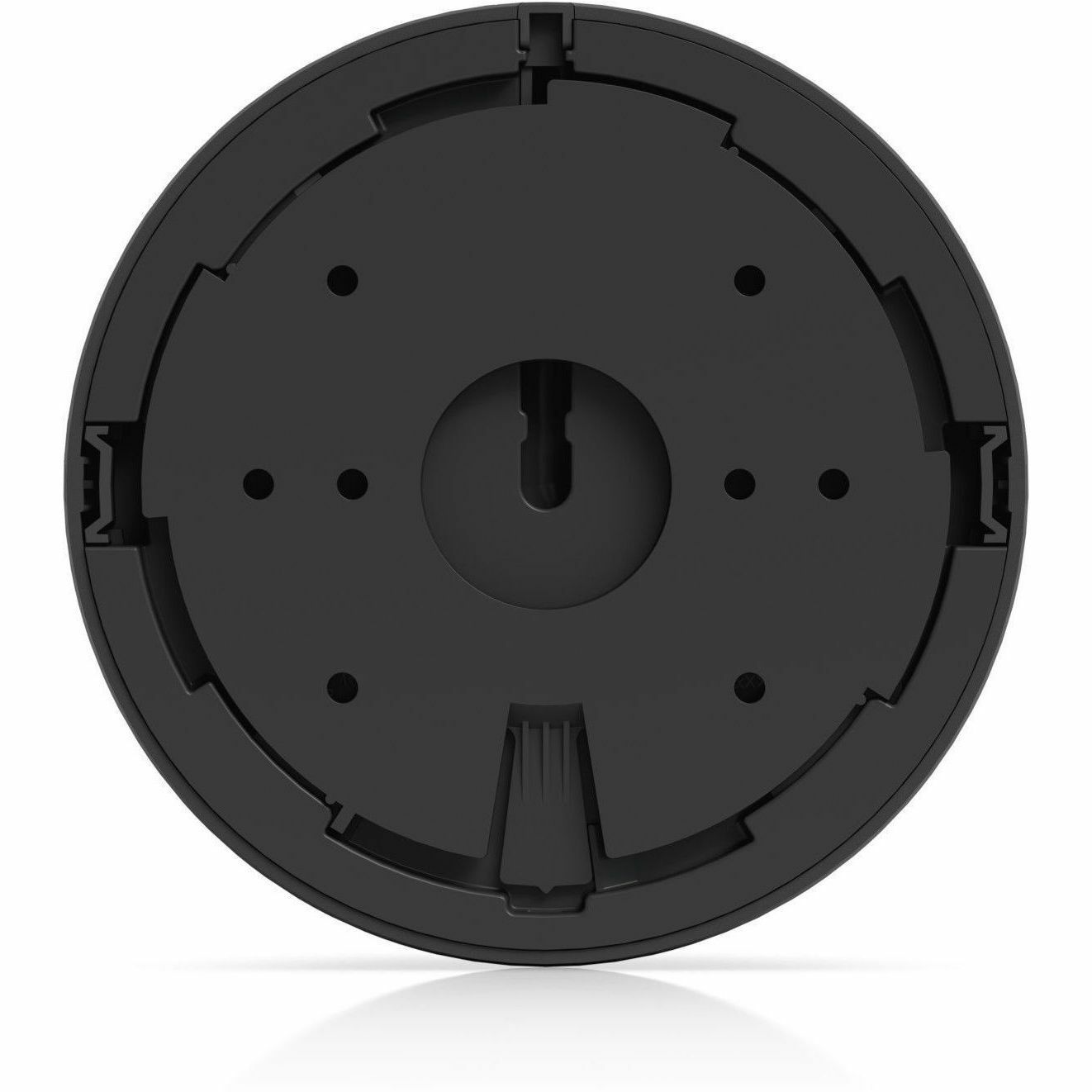

What mounting options are available for the UVC-AI-DOME-B?
The UVC-AI-DOME-B supports wall and ceiling mounting, making it flexible for warehouse ceiling grids, pendant installations, or surface-mounted configurations. This versatility allows IT teams to position cameras for optimal coverage in storage areas and receiving docks.
Does the UVC-AI-DOME-B have night vision capability?
Yes, the camera features IR LEDs with a mechanical IR cut filter for night mode operation, enabling surveillance in low-light warehouse environments. This built-in infrared capability eliminates the need for supplemental lighting in dark storage areas.
What are the operating temperature and humidity ranges for the UVC-AI-DOME-B?
The camera operates reliably between -30 to 70°C (-22 to 158°F) and in humidity levels of 20-90% noncondensing, making it suitable for climate-controlled warehouses and indoor logistics facilities. These specifications ensure consistent performance across seasonal temperature variations.
What video compression format does the UVC-AI-DOME-B use?
The camera uses H.264 video compression, a widely supported standard that balances video quality with bandwidth efficiency for network transmission and storage. This format is compatible with most modern surveillance management systems and NVR platforms.
The Ubiquiti Networks UVC-AI-DOME-B Wireless Access Points is also known as
UBI-UVCAIDOMEB
