Features:
- DHCP Relay
- DHCP Snooping
- Broadcast Storm Control
- Reset Button
Ubiquiti Networks USW-PRO-XG-24-POE Wireless Access Points
Part Number:
USW-PRO-XG-24-POE
Model:
Parts
Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
Ubiquiti Networks USW-PRO-XG-24-POE Wireless Access Points Overview

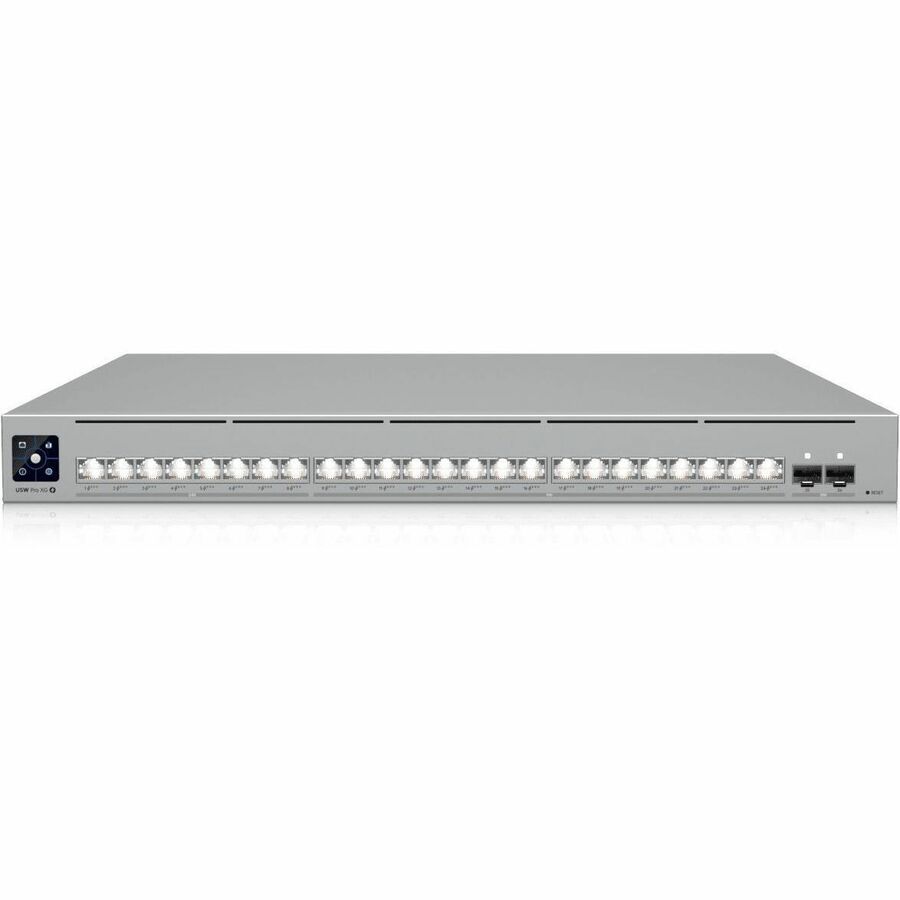

Professional-grade, 24-port Layer 3 Etherlighting PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
24
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 8 x 1/2.5 Gigabit Ethernet PoE+++ RJ-45 Network Port
- 16 x 1/2.5/5/10 Gigabit Ethernet PoE+++ RJ-45 Network Port
- 2 x 1/10/25 Gigabit Ethernet SFP28 Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- 25 Gigabit Ethernet
Network Technology:
- 10/100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 1000Base-X
- 10GBase-X
- 25GBase-X
Maximum Data Transfer Rate:
3.13 GB/s
I/O Expansions
Total Number of Expansion Slots:
2
Expansion Slot Type:
SFP28
Network & Communication
Layer Supported:
3
Networking Standards:
IEEE 802.1x
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
720 W
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
- AC/DC
- Power Supply
Redundant Power Supply Supported:
Yes
Power Consumption:
870 W
Physical Characteristics
Product Material:
SGCC Steel
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
18.9"
Weight (Approximate):
17.42 lb
Miscellaneous
Application/Usage:
Network
Item Numbers
GTIN:
0810177160663
UPC:
810177160663
EAN:
0810177160663
UNSPSC:
43222612
Frequently Asked Questions
What are the key networking capabilities of the Ubiquiti Networks USW-PRO-XG-24-POE?
The USW-PRO-XG-24-POE is a managed Layer 3 switch featuring 24 ports with support for multiple speed tiers: Gigabit Ethernet (10/100/1000Base-T), 2.5 Gigabit Ethernet (2.5GBase-T), 5 Gigabit Ethernet (5GBase-T), 10 Gigabit Ethernet (10GBase-T), and 25 Gigabit Ethernet (25GBase-X). It also supports optical fiber connectivity via 1000Base-X, 10GBase-X, and 25GBase-X ports, making it ideal for high-bandwidth enterprise and data center environments.
How much PoE power does the USW-PRO-XG-24-POE provide?
The USW-PRO-XG-24-POE delivers a total PoE budget of 720W, allowing you to power multiple networked devices such as access points, IP cameras, and wireless controllers directly through the network connection. This eliminates the need for separate power supplies for compatible PoE-enabled equipment.
Is the Ubiquiti USW-PRO-XG-24-POE suitable for rack-mount installation?
Yes, the USW-PRO-XG-24-POE is designed for rack-mount installation in a 1U form factor, making it ideal for deployment in standard server racks and network closets. The compact 1U design allows efficient use of rack space in data centers and enterprise network environments.
What is the power consumption of the USW-PRO-XG-24-POE?
The USW-PRO-XG-24-POE has a maximum power consumption of 870W, with 720W dedicated to the PoE budget for powering connected devices. This specification is important for capacity planning when deploying the switch in your network infrastructure.
What connection options are available for the USW-PRO-XG-24-POE?
The USW-PRO-XG-24-POE supports both twisted pair copper cabling and optical fiber connections across its 24 ports. The multi-speed port configuration allows you to connect legacy Gigabit devices alongside modern 25G fiber connections, providing flexibility for mixed-speed network deployments.
Where can I purchase the Ubiquiti Networks USW-PRO-XG-24-POE?
We offer the Ubiquiti Networks USW-PRO-XG-24-POE as part of our comprehensive selection of enterprise networking equipment. Contact us today or visit barcodesinc.com to check availability, pricing, and to discuss how this switch fits into your network infrastructure needs.
The Ubiquiti Networks USW-PRO-XG-24-POE Wireless Access Points is also known as
UBI-USWPROXG24POE
