Features:
- Reset Button
- Fanless

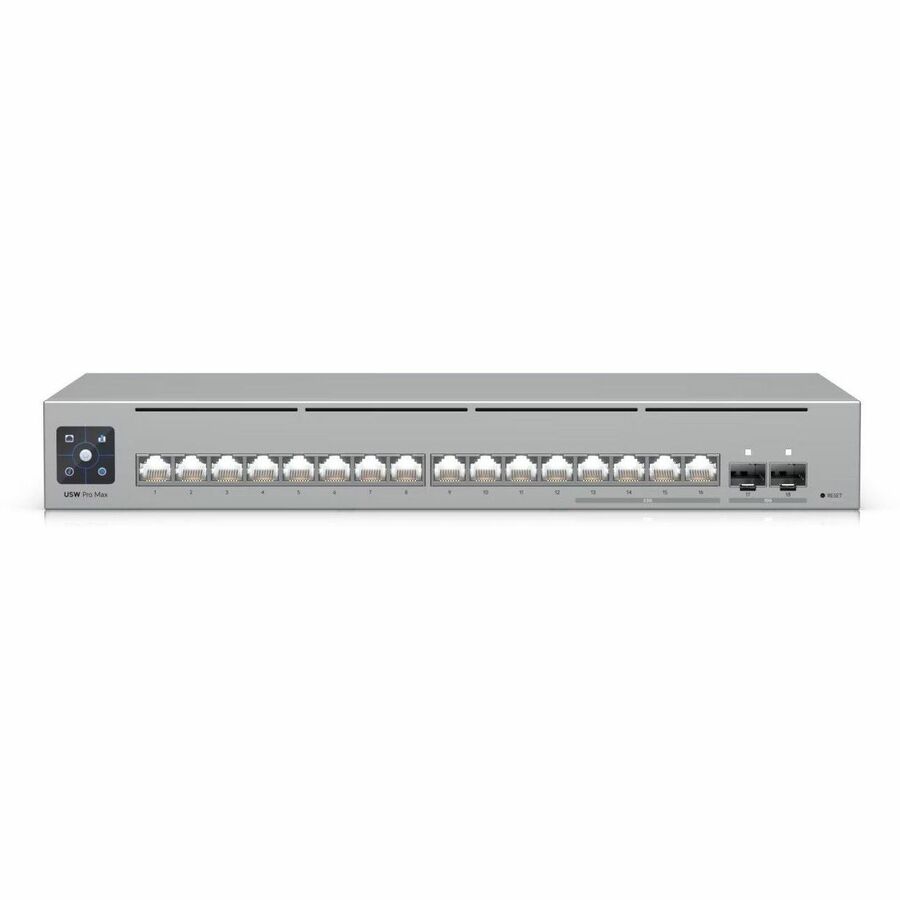

Ubiquiti Networks USW-PRO-MAX-16-POE Wireless Access Points
Part Number:
USW-PRO-MAX-16-POE
Model:
Parts
Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
16
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 12 x Gigabit Ethernet PoE+ RJ-45 Network Port
- 4 x 2.5 Gigabit Ethernet PoE++ RJ-45 Network Port
- 2 x 10 Gigabit Ethernet SFP+ Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
Network Technology:
- 1000Base-T
- 10GBase-X
- 2.5GBase-T
Maximum Data Transfer Rate:
1.25 GB/s
I/O Expansions
Total Number of Expansion Slots:
2
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
2
Network & Communication
Layer Supported:
3
Networking Standards:
IEEE 802.1x
Management & Protocols
Manageable:
Yes
Power Description
PoE (RJ-45) Port:
Yes
PoE Budget:
180 W
Input Voltage:
54 V
Power Source:
- Power Adapter
- PoE+
- PoE++
Power Consumption:
30 W
Physical Characteristics
Product Material:
Galvanized Cold Rolled Steel (SGCC)
Form Factor:
- Desktop
- Wall Mountable
- Rack-mountable
Height:
1.7"
Width:
12.8"
Depth:
6.3"
Weight (Approximate):
4.63 lb
Item Numbers
GTIN:
0810084694558, 0810084694572, 0810084694619
UPC:
810084694558, 810084694572, 810084694619
EAN:
0810084694558, 0810084694572, 0810084694619
UNSPSC:
43222612
Frequently Asked Questions
What is the PoE budget and power consumption of the Ubiquiti USW-PRO-MAX-16-POE?
The Ubiquiti USW-PRO-MAX-16-POE offers a 180 W PoE budget with a maximum power consumption of 30 W for the switch itself. This substantial PoE allocation allows you to power multiple connected devices such as access points and IP cameras simultaneously. We offer this model as part of our comprehensive Ubiquiti networking solutions.
What networking interfaces and speeds does the USW-PRO-MAX-16-POE support?
The USW-PRO-MAX-16-POE features 16 ports supporting multiple speed standards including Gigabit Ethernet (1000Base-T), 2.5 Gigabit Ethernet (2.5GBase-T), and 10GBase-X connectivity. This multi-speed architecture provides flexibility for connecting devices with varying bandwidth requirements across your network infrastructure. Contact us today for deployment guidance on this enterprise-grade switch.
Is the Ubiquiti USW-PRO-MAX-16-POE suitable for different mounting environments?
Yes, the USW-PRO-MAX-16-POE is designed with flexible deployment options—it supports desktop, wall-mounted, and rack-mountable installations. This versatility makes it ideal for various warehouse, data center, and office environments where space and accessibility requirements differ. Available from us with full technical support for your installation needs.
What Layer 3 capabilities does the USW-PRO-MAX-16-POE provide?
The USW-PRO-MAX-16-POE is a Layer 3 managed switch, enabling advanced routing and network segmentation capabilities beyond basic switching. This allows you to implement VLANs, static routing, and other sophisticated network policies for improved security and traffic management. Visit barcodesinc.com to explore how this switch can enhance your network architecture.
What media types does the USW-PRO-MAX-16-POE support for connectivity?
The USW-PRO-MAX-16-POE supports both twisted pair and optical fiber connectivity, providing options for different cabling infrastructure and distance requirements. The combination of copper and fiber ports allows you to integrate legacy systems with modern fiber-based backbone networks. We offer this model with comprehensive compatibility across Ubiquiti ecosystem devices.
Can the USW-PRO-MAX-16-POE be managed remotely?
Yes, the USW-PRO-MAX-16-POE is a manageable switch that integrates with Ubiquiti's UniFi Controller for centralized network administration and monitoring. Remote management capabilities enable you to configure, monitor, and troubleshoot the switch from anywhere with network access. Contact us today to discuss implementation of this managed switching solution for your organization.
The Ubiquiti Networks USW-PRO-MAX-16-POE Wireless Access Points is also known as
UBI-USWPROMAX16POE
