Features:
- DHCP Snooping
- Loop Protection

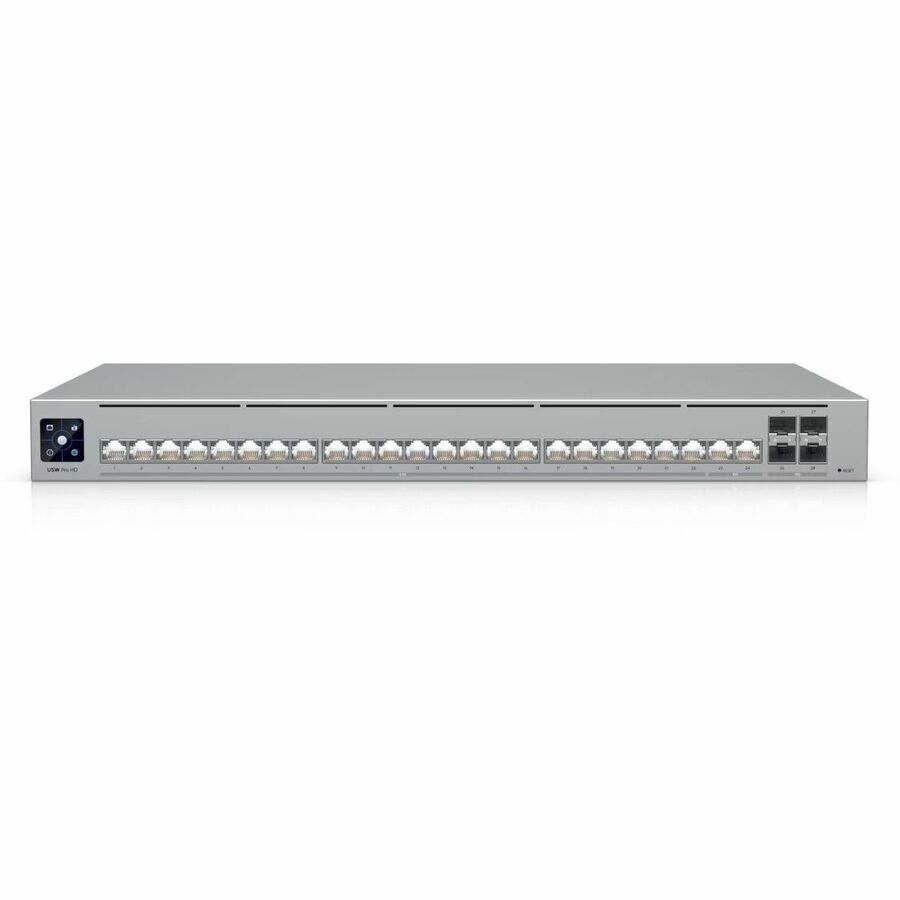

Ubiquiti Networks USW-PRO-HD-24 Wireless Access Points
Part Number:
USW-PRO-HD-24
Model:
Parts
Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
Technical Information
Interfaces/Ports
Total Number of Network Ports:
24
Network (RJ-45):
Yes
Port/Expansion Slot Details:
- 22 x 2.5 Gigabit Ethernet Network
- 2 x 10 Gigabit Ethernet Network
- 4 x 10 Gigabit Ethernet Expansion Slot
Media & Performance
Media Type Supported:
- Twisted Pair
- Optical Fiber
Ethernet Technology:
- 2.5 Gigabit Ethernet
- 10 Gigabit Ethernet
Network Technology:
- 2.5GBase-T
- 10GBase-T
- 10GBase-X
I/O Expansions
Total Number of Expansion Slots:
4
Expansion Slot Type:
SFP+
Number of SFP+ Slots:
4
Network & Communication
Layer Supported:
3
Networking Standards:
IEEE 802.1x
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Frequency:
- 50 Hz
- 60 Hz
Power Source:
- AC/DC
- Power Supply
Power Consumption:
60 W
Physical Characteristics
Product Material:
- Galvanized Cold Rolled Steel (SGCC)
- Steel
Compatible Rack Unit:
1U
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
11.2"
Weight (Approximate):
9.20 lb
Miscellaneous
Application/Usage:
- Server
- Enterprise
Item Numbers
GTIN:
0810084696552
UPC:
810084696552
EAN:
0810084696552
UNSPSC:
43222612
Frequently Asked Questions
What are the key specifications of the Ubiquiti Networks USW-PRO-HD-24 switch?
The USW-PRO-HD-24 is a 24-port managed Ethernet switch featuring 2.5 Gigabit and 10 Gigabit Ethernet connectivity with support for 2.5GBase-T, 10GBase-T, and 10GBase-X standards. It operates as a Layer 3 switch with a power consumption of 60W and is designed for rack-mount installation in a 1U form factor, supporting both twisted pair and optical fiber connections.
Is the Ubiquiti USW-PRO-HD-24 compatible with UniFi access points?
Yes, the USW-PRO-HD-24 is compatible with Ubiquiti's UniFi access point ecosystem, including models such as UAP, UAP-LR, UAP-PRO, UAP-AC series, and UAP-AC-HD. This makes it an ideal choice for organizations deploying unified Ubiquiti networking infrastructure across their facilities.
What types of connections does the USW-PRO-HD-24 support?
The USW-PRO-HD-24 supports multiple connection types including twisted pair Ethernet cables and optical fiber connections. With its mix of 2.5 Gigabit and 10 Gigabit ports, it provides flexible connectivity options for both standard and high-speed network requirements in warehouse and logistics environments.
Can the USW-PRO-HD-24 be mounted in a standard server rack?
Yes, the USW-PRO-HD-24 is rack-mountable in a 1U form factor, making it ideal for deployment in standard 19-inch equipment racks commonly found in data centers and network closets. This compact design allows for efficient space utilization in enterprise installations.
What power requirements does the Ubiquiti USW-PRO-HD-24 have?
The USW-PRO-HD-24 has a maximum power consumption of 60W, making it energy-efficient for continuous operation in warehouse and logistics facilities. This moderate power draw reduces operational costs while maintaining full performance across all 24 ports.
Why should we choose the USW-PRO-HD-24 for our network infrastructure?
We offer the USW-PRO-HD-24 as a professional-grade switching solution that combines high-speed connectivity (up to 10 Gigabit), extensive port density (24 ports), and seamless integration with UniFi access points and cameras. Its Layer 3 capabilities, low power consumption, and rack-mount design make it ideal for logistics and warehouse environments requiring reliable, scalable network infrastructure. Contact us today to discuss how this switch can enhance your facility's connectivity.
The Ubiquiti Networks USW-PRO-HD-24 Wireless Access Points is also known as
UBI-USWPROHD24
