Total Number of Network Ports:
1

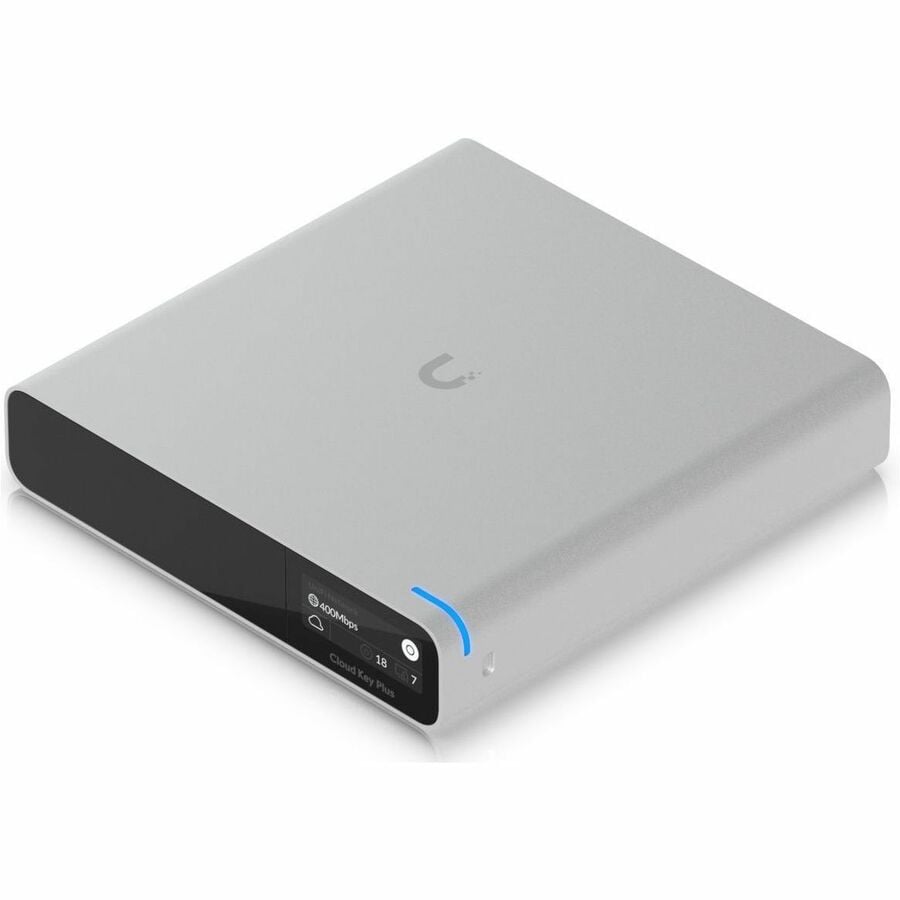

Ubiquiti Networks UCK-G2-SSD Wireless Access Points
Part Number:
UCK-G2-SSD
Model:
Parts
Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
Interfaces/Ports
Physical Characteristics
Height:
1.1"
Width:
5.2"
Depth:
5.3"
Weight (Approximate):
1.23 lb
Miscellaneous
Additional Information:
- Enclosure material: Anodized aluminum
- Processor: Octa-core Arm® Cortex®-A53 based chip
- Management interface: Ethernet/Bluetooth
- Memory: 32 GB eMMC / 3 GB RAM
- SSD capacity: 1 TB 2.5" SATA SSD (user-upgradeable)
- Power method: PoE/Quick charge 2.0/3.0 Power Adapter, 9V DC, 2A
- Max. power consumption: 9.6W
- Display: 1.42" gray-scale OLED
Application/Usage:
Network Monitoring
Item Numbers
GTIN:
0810084698426
UPC:
810084698426
EAN:
0810084698426
UNSPSC:
43232801
Frequently Asked Questions
What is the Ubiquiti Networks UCK-G2-SSD and what does it do?
The Ubiquiti Networks UCK-G2-SSD is a CloudKey+ Network Monitoring Appliance designed to manage and monitor UniFi network infrastructure. It functions as a centralized controller for UniFi access points, switches, cameras, and other networked devices, providing enterprise-grade network management capabilities from a compact, easy-to-deploy form factor. We offer this appliance as part of our comprehensive Ubiquiti product lineup for organizations requiring robust network oversight.
What are the key specifications and memory capacity of the UCK-G2-SSD?
The UCK-G2-SSD features 3 GB of DDR3 RAM and includes onboard flash storage for local data retention and backup capabilities. The device weighs 675 g without the SSD and 734 g with the SSD installed, making it lightweight and portable for deployment across various network environments. Its compact design allows for flexible placement in server rooms, network closets, or remote locations. Contact us today for detailed specification information and deployment recommendations.
What networking capabilities does the CloudKey+ provide?
The UCK-G2-SSD includes Ethernet connectivity for integration into your network infrastructure and supports management of 50+ UniFi devices simultaneously. It can manage up to 15 HD, 8 2K, and 5 4K cameras, and support 500+ simultaneous connected users across your UniFi ecosystem. This makes it suitable for enterprise deployments requiring centralized control of large-scale wireless and security infrastructure. Visit barcodesinc.com to explore compatible UniFi products and complete solutions.
What are the operating temperature and environmental specifications?
The UCK-G2-SSD operates reliably in temperatures from 0 to 40°C (32 to 104°F) with humidity levels between 5 to 95% noncondensing. These specifications ensure stable operation in standard indoor environments including climate-controlled server rooms and network closets. The device is certified by CE, FCC, and IC standards for global deployment. Contact us today if you need guidance on environmental requirements for your specific deployment location.
Is the UCK-G2-SSD compatible with existing UniFi infrastructure?
Yes, the CloudKey+ is designed as the central management platform for the entire UniFi ecosystem, including UniFi Access Points, UniFi Switches, UniFi Cameras, and UniFi Security Gateways. It provides unified control and monitoring across all UniFi Network, Protect, Access, Talk, and Connect product lines through the UniFi application suite. We offer complete UniFi solutions and can help you integrate the UCK-G2-SSD with your existing or new network infrastructure.
What power options are available for the UCK-G2-SSD?
The UCK-G2-SSD supports flexible power delivery options including 802.3af PoE (Power over Ethernet) and Micro-USB 5V power input with a minimum 1A requirement. This dual power capability allows for deployment in various network environments—either powered directly from a PoE-capable switch or via standard USB power adapter. Contact us today to discuss power infrastructure requirements and optimal deployment configurations for your facility.
The Ubiquiti Networks UCK-G2-SSD Wireless Access Points is also known as
UBI-UCKG2SSD
