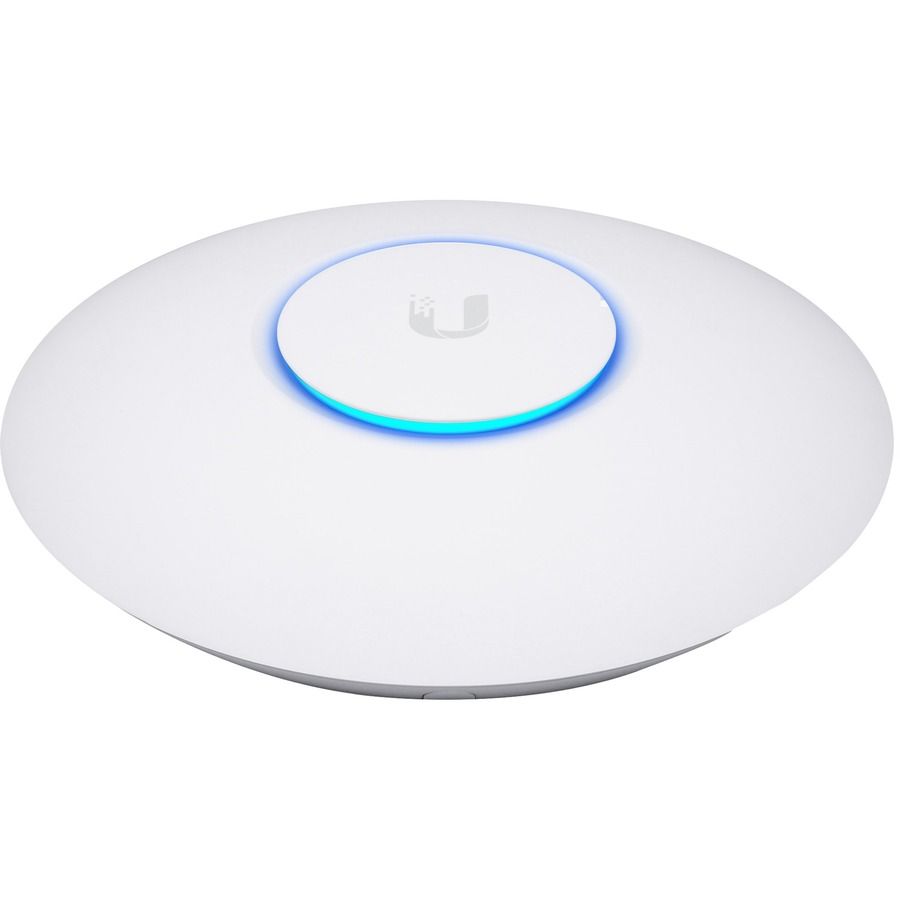

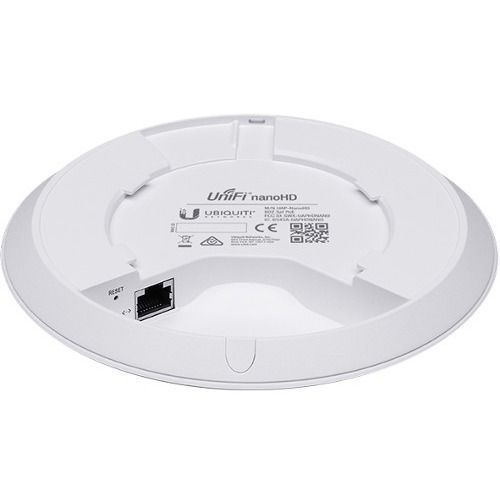

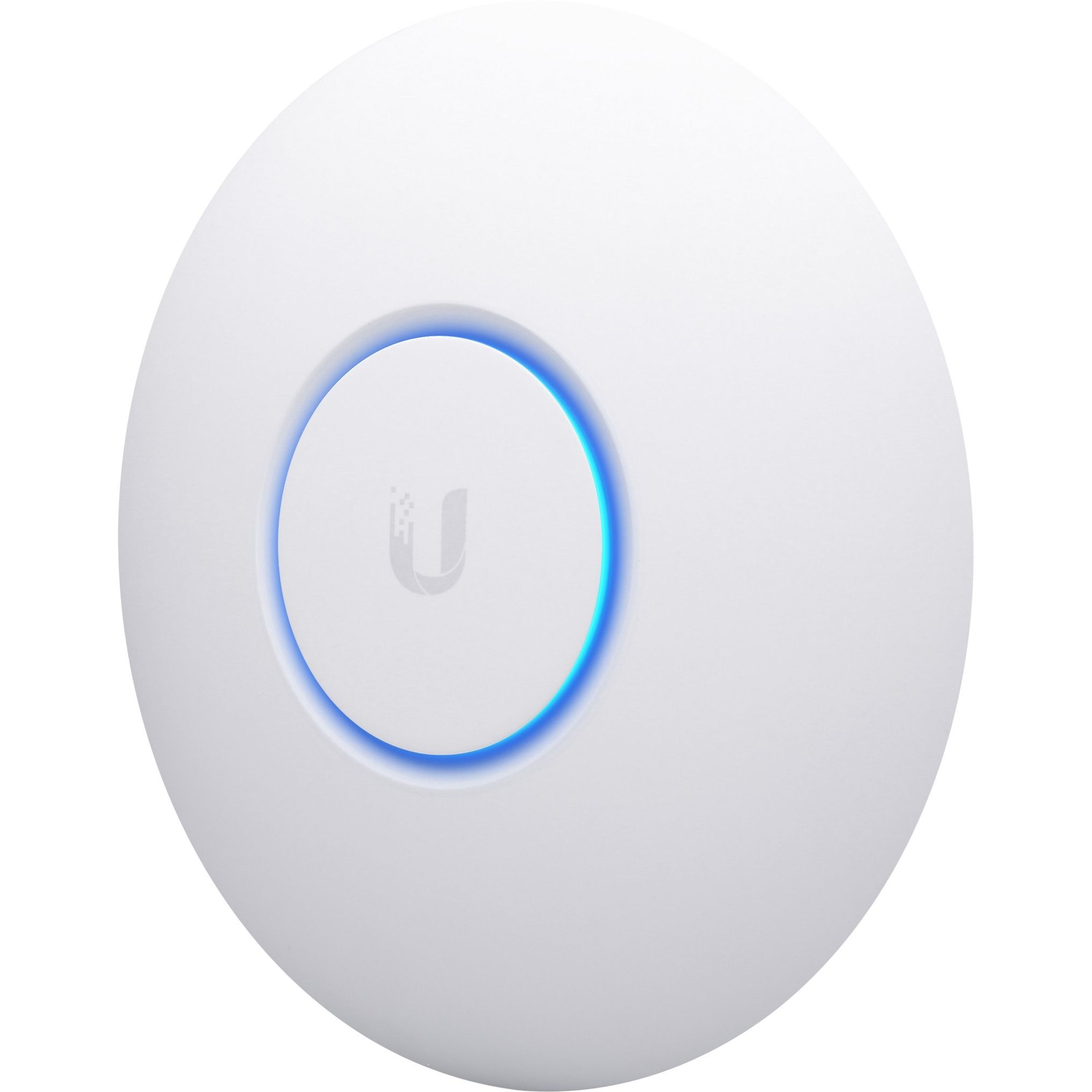

The UAP-nanoHD supports 802.11 a/b/g/n/ac/ac-wave2 wireless standards, operating simultaneously on both 2.4 GHz and 5 GHz frequency bands. This dual-band capability with MIMO technology delivers speeds up to 1.73 Gbit/s for high-density deployments.
The UAP-nanoHD is powered via Power over Ethernet (PoE), supporting both 802.3af standard PoE and 802.3at PoE+ with a supported voltage range of 44 to 57VDC. Maximum power consumption is 17W, making it efficient for ceiling and wall-mounted installations.
The UAP-nanoHD is designed for both ceiling and wall mounting, with included mounting kits for flexible deployment in indoor environments. This versatility makes it suitable for various warehouse, office, and facility configurations.
The UAP-nanoHD supports comprehensive wireless security including WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2), TKIP/AES encryption, and 802.11w/PMF (Protected Management Frames). It also supports advanced traffic management features including VLAN (802.1Q), per-user rate limiting, and guest traffic isolation.
The UAP-nanoHD supports 500+ concurrent clients, making it suitable for high-density wireless deployments in warehouses, logistics facilities, and enterprise environments. It can be configured with up to four BSSIDs per radio for advanced network segmentation.
The UAP-nanoHD operates reliably in temperatures ranging from -10 to 70°C (14 to 158°F) and humidity levels of 5 to 95% noncondensing. It carries CE, FCC, and IC certifications for global deployment. Contact us today to discuss installation requirements for your specific environment.
