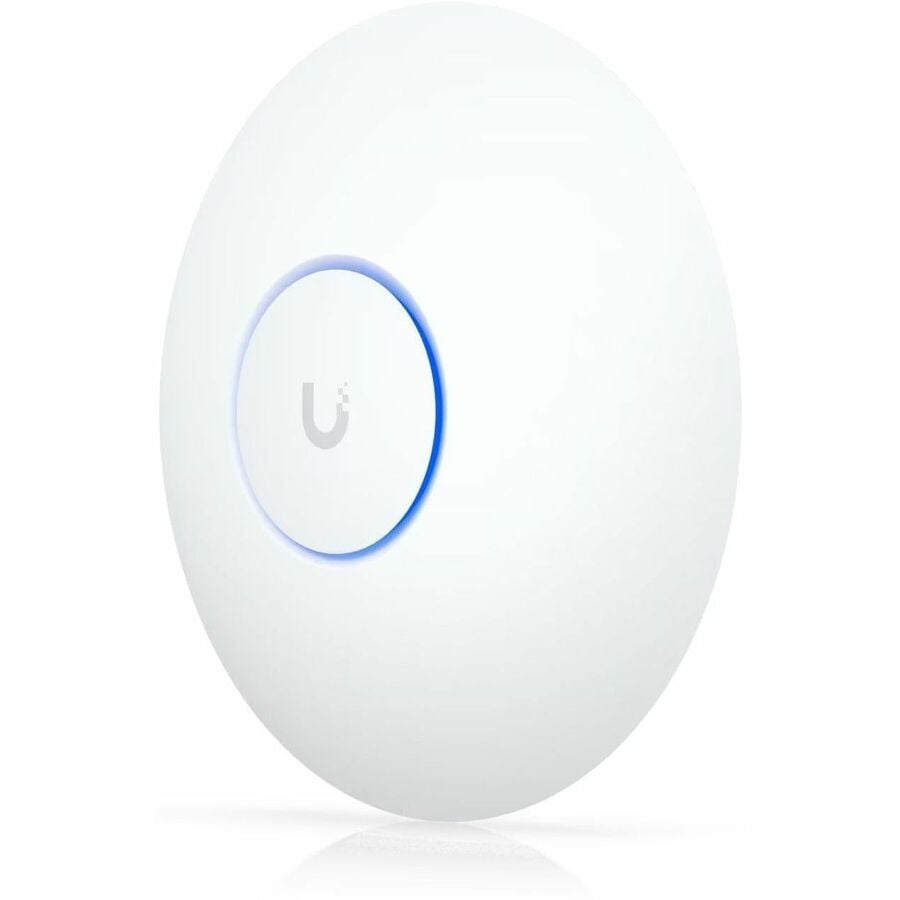

Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
What are the key wireless specifications of the Ubiquiti U7-LR-US access point?
The U7-LR-US is a WiFi 7 access point with 5 spatial streams designed for compact ceiling-mount deployment. We offer this model as a high-performance solution for enterprise wireless coverage. For detailed technical specifications including throughput and frequency band support, contact us today or visit barcodesinc.com to speak with our wireless networking team.
What power requirements does the U7-LR-US have?
The U7-LR-US is powered via PoE+ or Passive PoE at 48V, with a maximum power consumption of 16.5W. It supports a voltage range of 44 to 57VDC and can be powered by a UniFi PoE Switch or a 48V, 0.5A PoE adapter. We have compatible power solutions available from us to ensure seamless deployment in your environment.
Is the Ubiquiti U7-LR-US suitable for outdoor or semi-outdoor installations?

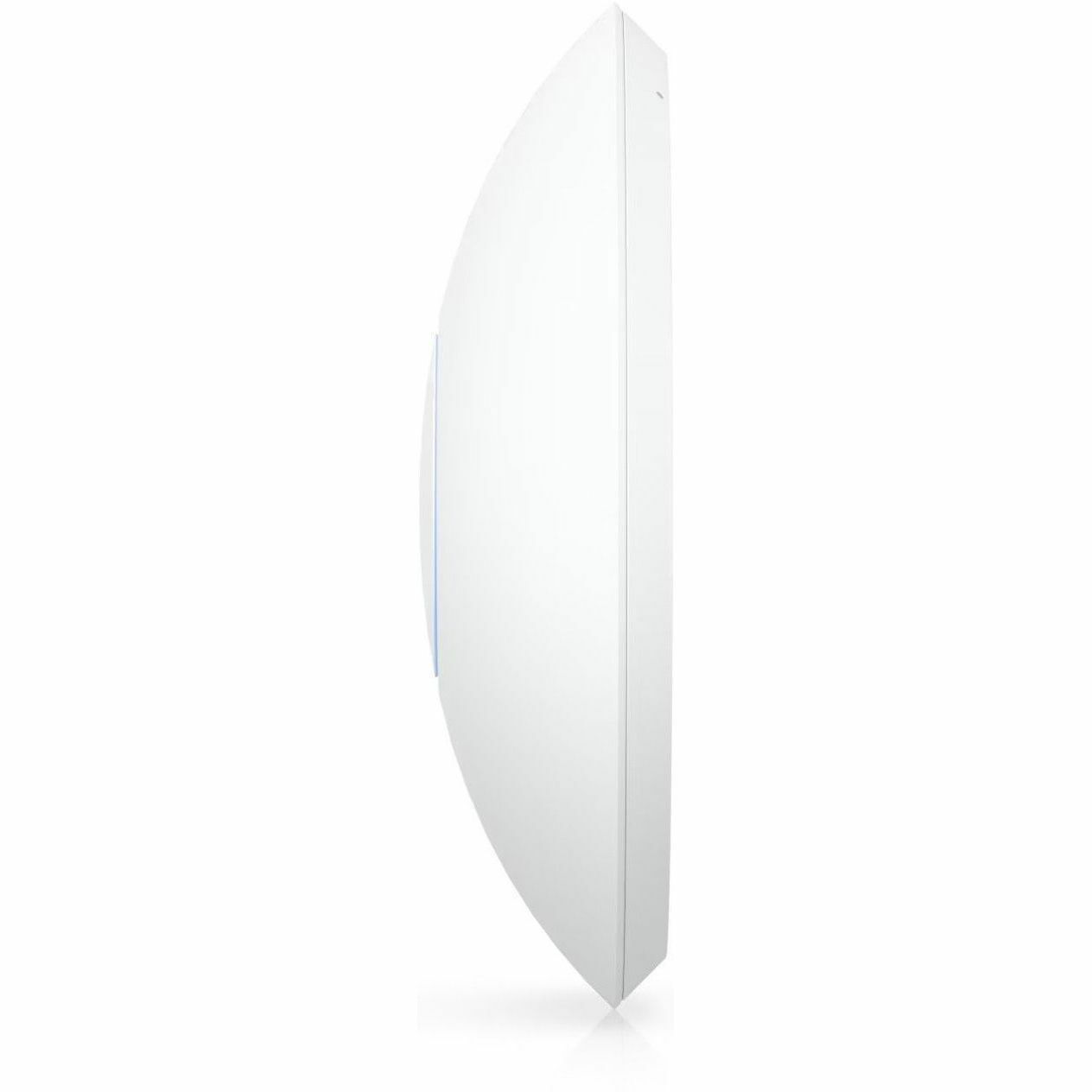

Yes, the U7-LR-US features an IP54 weatherproofing rating, making it suitable for semi-outdoor environments. It has a compact ceiling-mount design with dimensions of Ø220 x 48 mm and can operate reliably in temperatures ranging from -30 to 60°C and humidity levels of 5-95% noncondensing. Contact us today if you need guidance on outdoor deployment scenarios.
What mounting options are available for the U7-LR-US?
The U7-LR-US is designed for wall and ceiling mounting, with mounting kits included. The unit weighs 800g without the mount and 930g with the mount, making it lightweight for flexible installation options. We can assist you with proper installation planning—visit barcodesinc.com or contact us today for deployment support.
What are the processor and memory specifications of this access point?
The U7-LR-US features a Dual-Core Cortex A53 processor running at 1.35 GHz with 512 MB of memory. This configuration provides the processing power needed for enterprise-grade wireless performance and concurrent client management. Our team can help you evaluate whether this meets your network capacity requirements.
What management and connectivity interfaces does the U7-LR-US offer?
The U7-LR-US includes one 1 Gbps Ethernet RJ45 port for management and networking, along with Bluetooth Low Energy radio for location-based services. It features an RGB LED indicator and factory reset button for easy administration. We offer comprehensive support for integrating this access point into your existing network infrastructure—contact us today for configuration assistance.
The Ubiquiti Networks U7-LR-US Wireless Access Points is also known as
UBI-U7LRUS
