Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
What Wi-Fi standards does the Ubiquiti U7-LITE-US support?
The Ubiquiti U7-LITE-US supports IEEE 802.11n, 802.11ac, 802.11ax, and 802.11be standards, delivering dual-band Wi-Fi 7 connectivity across both 2.4 GHz and 5 GHz frequencies. This multi-standard support ensures compatibility with a wide range of wireless devices while providing next-generation performance for modern networks.
What is the maximum throughput of the U7-LITE-US access point?
The U7-LITE-US delivers up to 4.30 Gbit/s of wireless throughput, making it suitable for high-density environments and bandwidth-intensive applications in warehouses and logistics facilities. This performance is achieved through MIMO and Multi-User MIMO technology.
How should the U7-LITE-US be mounted, and what are the power requirements?
The U7-LITE-US is ceiling and wall mountable, providing flexible deployment options for warehouse and facility environments. It requires 13 W of power and connects via a 2.5 Gigabit Ethernet port, supporting modern high-speed network infrastructure.
Is the U7-LITE-US suitable for outdoor use?
Based on the product specifications provided, the U7-LITE-US is designed as an indoor access point. For outdoor deployment in logistics and warehouse environments, we recommend consulting with our team to identify appropriate outdoor-rated alternatives from Ubiquiti Networks.

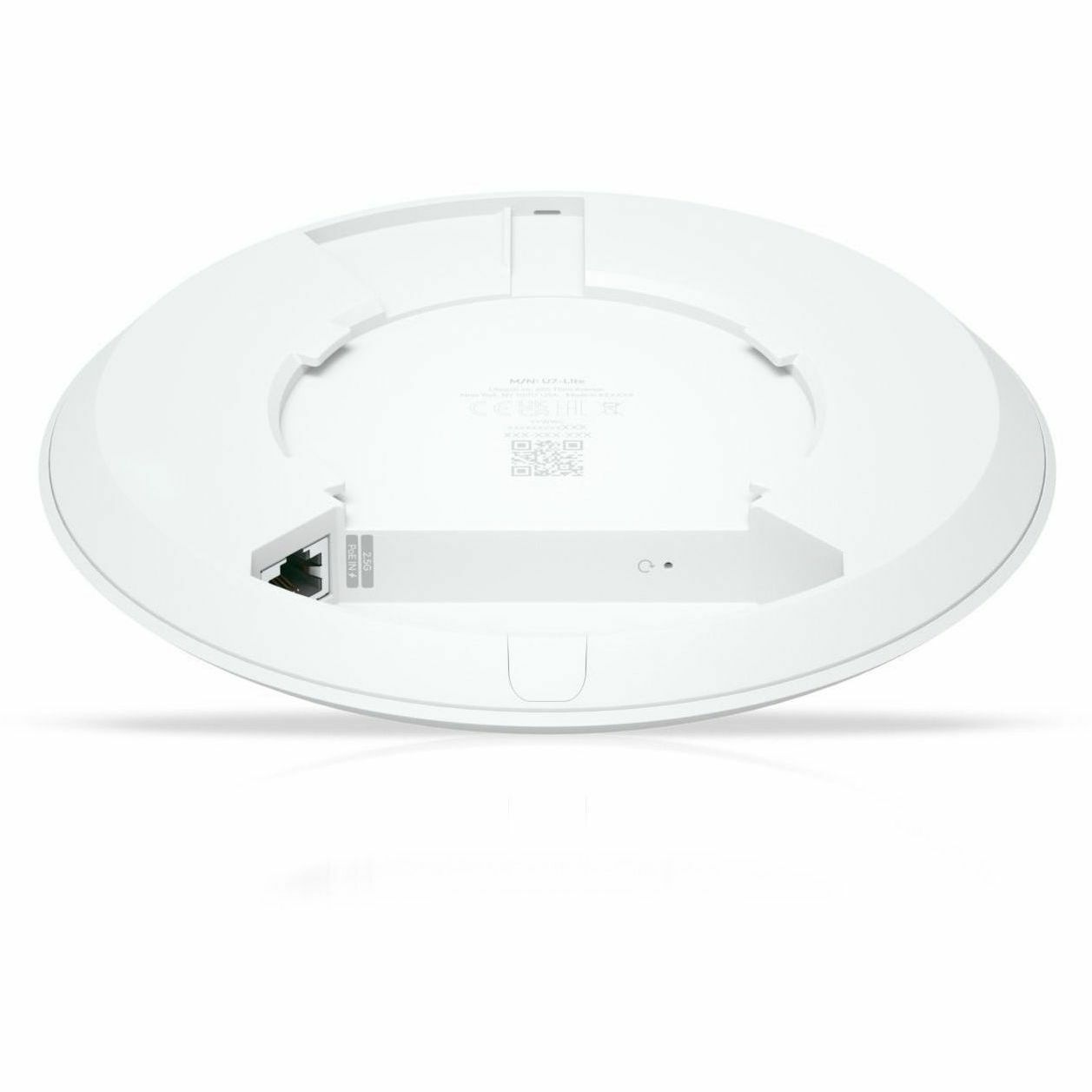

What networking interfaces does the U7-LITE-US include?
The U7-LITE-US features one 2.5 Gigabit Ethernet (RJ-45) network port, enabling fast wired connectivity to your network infrastructure. This high-speed interface supports modern enterprise networking requirements for seamless integration with warehouse management systems.
Can the U7-LITE-US handle multiple simultaneous wireless clients?
Yes, the U7-LITE-US incorporates Multi-User MIMO technology, which allows it to efficiently handle multiple concurrent client connections. This capability makes it ideal for high-density warehouse and logistics environments where numerous devices require simultaneous network access. Contact us today to discuss deployment sizing for your facility.
The Ubiquiti Networks U7-LITE-US Wireless Access Points is also known as
U7-LITE-US
