Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.
Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.

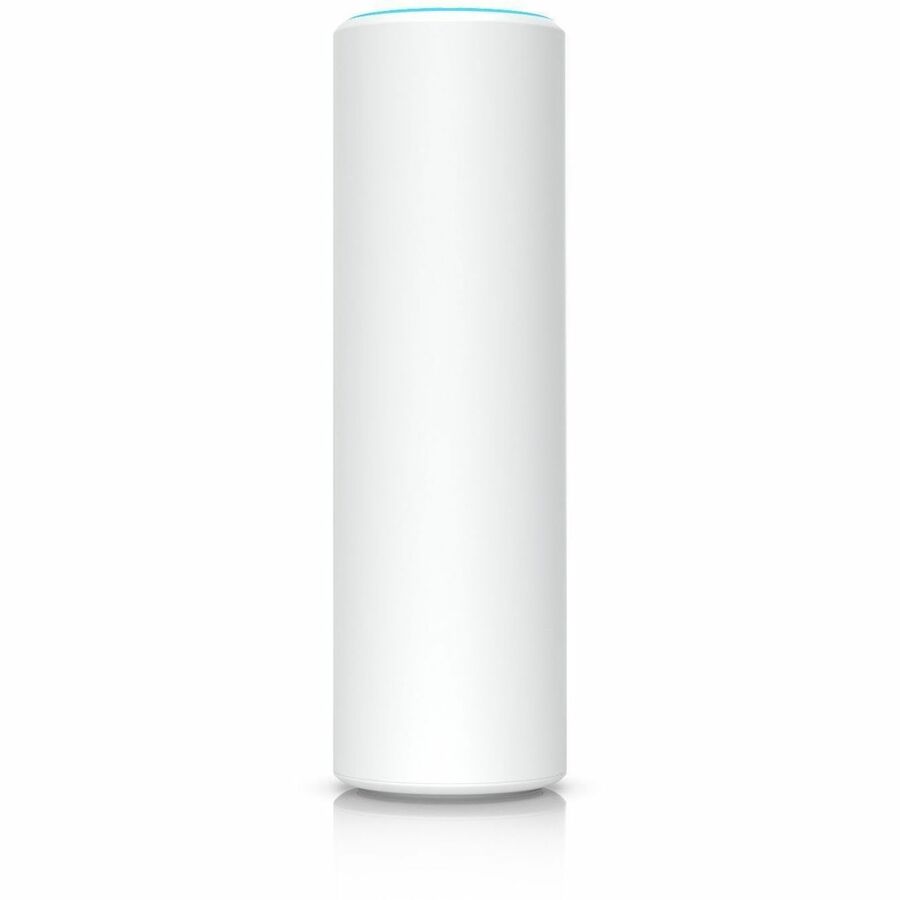

The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access pointthat provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates atfull 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or ofce, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app
What wireless standards and frequency bands does the Ubiquiti U6-MESH-US support?
The U6-MESH-US is a dual-band access point that supports 802.11a/b/g/n standards operating on both 2.4 GHz and 5 GHz frequency bands simultaneously. It delivers aggregate throughput of up to 5.30 Gbps with MIMO technology for enhanced coverage and capacity in enterprise environments.
What power options are available for the U6-MESH-US?
The U6-MESH-US supports multiple power delivery methods including PoE+ and passive PoE (48V), with a maximum power consumption of 11.40 W. It can be powered through a UniFi PoE Switch or compatible 802.3af PoE adapter, making it flexible for various network infrastructure setups.
Where can the Ubiquiti U6-MESH-US be mounted and used?
The U6-MESH-US is designed for both indoor and outdoor deployment with multiple mounting options including wall, ceiling, desktop, and pole-mount configurations. All necessary mounting kits and accessories are included to support flexible installation in diverse environments.
What networking connectivity does the U6-MESH-US provide?
The U6-MESH-US features one Gigabit Ethernet RJ-45 port with PoE support for reliable wired connectivity to your network infrastructure. This allows seamless integration with existing enterprise network environments while maintaining high-speed data throughput.
Is the U6-MESH-US suitable for outdoor environments?
Yes, the U6-MESH-US is rated for both indoor and outdoor use with an IP54 weatherproofing rating, allowing it to withstand environmental exposure. The device operates across a temperature range of -30 to 60°C, making it suitable for deployment in various climate conditions.
What should I know about the U6-MESH-US antenna configuration?
The U6-MESH-US features built-in dual-band omnidirectional antennas with 4 dBi gain on 2.4 GHz and 5.5 dBi gain on 5 GHz, delivering expanded range coverage for enterprise deployments. The antenna design is integrated into the access point for a clean, professional appearance suitable for any environment.
The Ubiquiti Networks U6-MESH-US Wireless Access Points is also known as
UBI-U6MESHUS
