Ubiquiti Networks UniFi Data Networking Model Overview
Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.

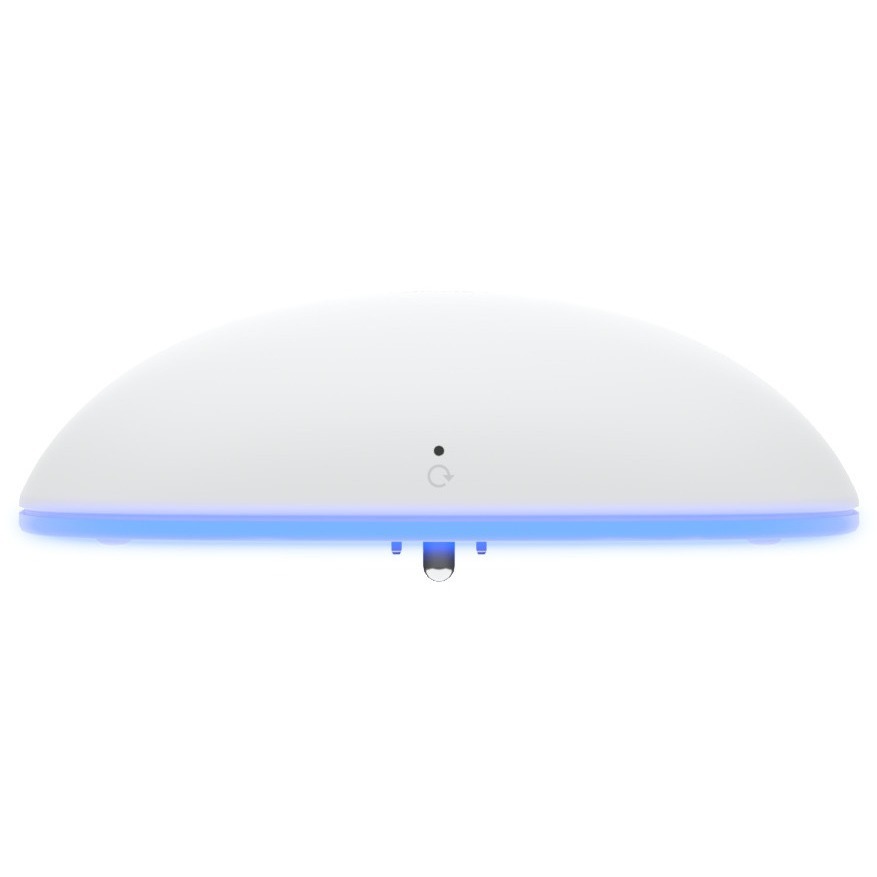

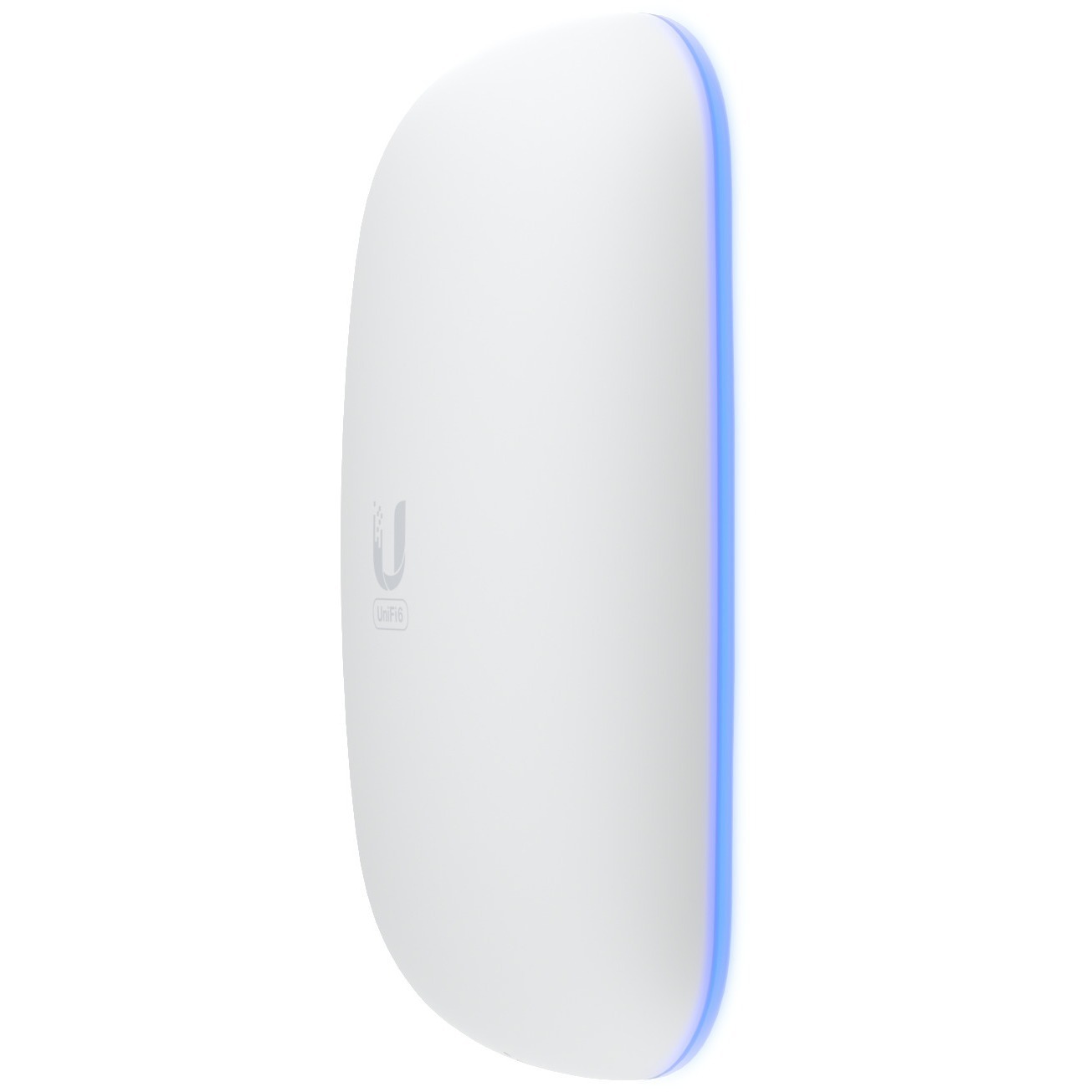

Easy-to-deploy WiFi 6 coverage extender that fits standard US duplex outlets.
The UniFi6 Extender (U6 Extender) is a portable, easy-to-deploy WiFi 6 access point that can instantly broaden your home or office's wireless coverage. With its dual-band design and 5.3+ Gbps aggregate throughput rate, the U6 Extender delivers the strong, reliable connectivity needed to support even the most device-dense networks. Engineered for plug-and-play simplicity, this access point fits any standard US duplex wall outlet and its compact frame allows you to strengthen your signal without cluttering your space or disrupting its aesthetic. The U6 Extender can be adopted to your network in a matter of minutes and centrally managed with either the UniFi Network web application or mobile app.
Features:
Dual-band WiFi 6 connectivity
5 GHz band (4x4 MU-MIMO and OFDMA) with up to a 4.8 Gbps throughput rate
2.4 GHz band (2x2 MU-MIMO and OFDMA) with up to a 573.5 Mbps throughput rate
Fits any standard US duplex wall outlet
Easily extends wireless coverage across large homes or offices
What wireless standards and frequencies does the Ubiquiti U6-EXTENDER-US support?
The U6-EXTENDER-US is a dual-band wireless access point that supports IEEE 802.11 a/b/g/n/ac/ax standards operating on both 2.4 GHz and 5 GHz frequencies. This simultaneous dual-band capability allows it to handle multiple devices and applications across both frequency bands for optimal performance in your network environment.
What is the maximum throughput speed of this Ubiquiti UniFi 6 extender?
The U6-EXTENDER-US delivers aggregate wireless speeds of up to 5.30 Gbit/s, combining performance from both the 2.4 GHz and 5 GHz bands. This high-speed capability makes it suitable for bandwidth-intensive warehouse operations, inventory management systems, and mobile device connectivity.
How is the U6-EXTENDER-US powered, and what are the power requirements?
The U6-EXTENDER-US is powered via PoE (Power over Ethernet), which simplifies installation by delivering both power and data through a single Ethernet cable. The unit consumes 11 W of power, making it energy-efficient for extended deployment in warehouses and logistics facilities.
What mounting options are available for the Ubiquiti U6-EXTENDER-US?
The U6-EXTENDER-US is wall-mountable and portable, providing flexible deployment options for warehouse environments where you need to extend wireless coverage to specific zones or adapt to changing facility layouts. Its compact design allows for both permanent and temporary installation scenarios.
Does the U6-EXTENDER-US use internal or external antennas?
The U6-EXTENDER-US features internal antennas integrated into its design, which contributes to its compact, portable form factor while maintaining MIMO technology for improved signal strength and coverage reliability across your facility.
Is the Ubiquiti U6-EXTENDER-US suitable for outdoor or harsh environments?
The U6-EXTENDER-US is designed as an indoor/portable access point extender. For outdoor or harsh environment deployments in logistics facilities, we offer other Ubiquiti UniFi models with weatherproofing ratings. Contact us today to discuss which access point solution best matches your specific environmental requirements.
