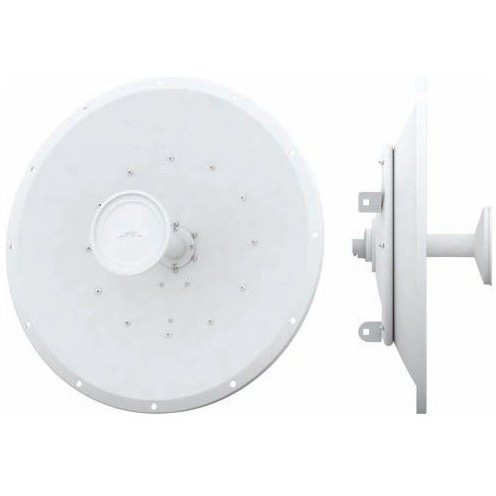

Ubiquiti Networks RD-3G26 Wireless Antenna
Ubiquiti Networks RocketDish Antenna -
Ubiquiti AirMax Carrier Class 2x2 PtP Bridge Dish Antenna - Up to 31.1 Mile Range - SHF - 3.30 GHz to 3.80 GHz - 26 dBi - Wireless Data NetworkPole.
DUE TO GLOBAL MANUFACTURE SUPPLY CHAIN ISSUES, EXPECT EXTENDED LEAD TIMES FOR UBIQUITI PRODUCTS.
DUE TO GLOBAL MANUFACTURE SUPPLY CHAIN ISSUES, EXPECT EXTENDED LEAD TIMES FOR UBIQUITI PRODUCTS.
- Powerful Performance for Long-Range Links
- Robust Design and Construction for Outdoor Use
- Seamless Integration with Rocket Radios
Need a different version? See all Ubiquiti Networks RocketDish Antenna <<wireless_antenna-short>>s
$229.00
Full specifications (PDF)airMAX 2x2 PtP Bridge Dish Antenna
Pair a RocketDish antenna with a Rocket basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately). The RocketDish antenna delivers 2x2, dual-polarity performance. The RocketDish with Rocket can be deployed in a backhaul link to deliver bandwidth from an ISP network out to a neighborhood tower. From there, an airMAX Sector with Rocket delivers bandwidth to the ISP"s customers. Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.
Ubiquiti Networks RD-3G26 Overview
Rocket M combines the "brains" in one robust unit; pair Rocket M with RocketDish to create powerful 2x2 MIMO PtP bridging applications. This seamless integration gives network architects unparalleled flexibility and convenience.
Technical Information
Maximum Antenna Range:
31.1 Mile
Frequency Band Type:
SHF
Operating Frequency Range:
3.3 GHz to 3.8 GHz
Antenna Gain:
26 dBi
Polarization:
Dual Linear
Survival Wind Speed:
2112 in/s
Features:
- MIMO Technology
- Noise Reduction
Interfaces/Ports
Number of Connectors:
1
USB:
No
Physical Characteristics
Height:
11.81"
Width:
25.59"
Diameter:
25.51"
Form Factor:
Pole
Weight (Approximate):
21.61 lb
Miscellaneous
Application/Usage:
Wireless Data Network
Package Contents:
- AirMax Carrier Class 2x2 PtP Bridge Dish Antenna
- Universal Pole Mount
- Rocket M Bracket
- Weatherproof RF Jumpers
Certifications & Standards:
ETSI: EN 302 326 DN2
Item Numbers
GTIN:
0037477339128, 0688474349841, 0810354021275
UPC:
037477339128, 688474349841, 810354021275
EAN:
0037477339128, 0688474349841, 0810354021275
UNSPSC:
43221706
Loading...
The Ubiquiti Networks RD-3G26 is also known as Ubiquiti UBI-RD3G26 or RD3G26 .
