What are the key specifications of the Ubiquiti PS-5AC wireless bridge?

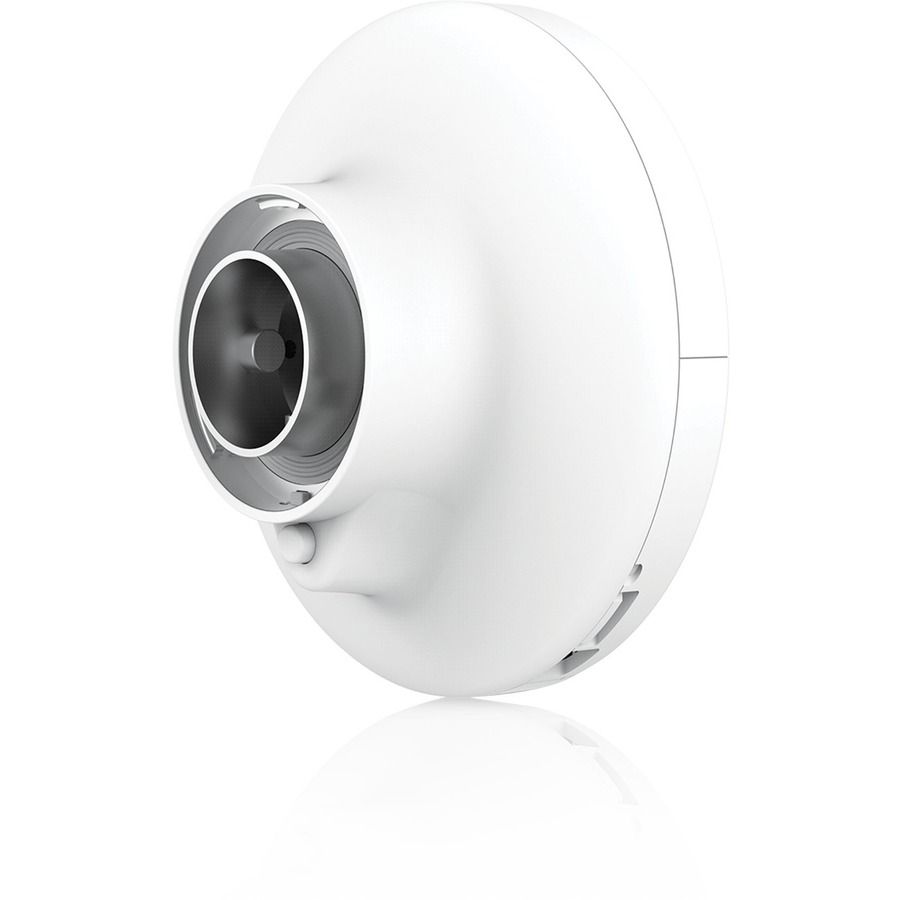

The Ubiquiti PrismStation AC PS-5AC is an IEEE 802.11ac wireless bridge operating at 5 GHz and 2.4 GHz with 500 Mbit/s throughput. It features MIMO technology, a single 10/100/1000 Ethernet port, pole-mountable design, and includes a 24V 1A Gigabit PoE adapter for power delivery via passive PoE on pairs 4, 5+ and 7, 8 return.
What operating conditions does the PS-5AC support?
The PS-5AC operates reliably in temperatures from -40 to 80°C (-40 to 176°F) and humidity levels of 5 to 95% noncondensing. It includes ±24 kV ESD/EMP protection for both contact and air discharge, and meets ETSI300-019-1.4 shock and vibration standards for outdoor deployment.
What channel sizes and modes does the PS-5AC support?
The PS-5AC supports flexible channel sizing in Point-to-Point (PtP) mode with 10/20/30/40/50/60/80 MHz options, and Point-to-Multipoint (PtMP) mode with 10/20/30/40 MHz options. It operates in Access Point or Station modes with software-adjustable power and dynamic ACK/Ackless mode for distance optimization.
What security and network management features are included?
The PS-5AC provides WPA2 AES encryption for wireless security and supports advanced networking features including VLAN support, QoS with packet-level classification and WMM, NAT, bridging, and routing. Management utilities include web server, SNMP, SSH, and tools for antenna alignment, site survey, and speed testing.
What is the power consumption and supported voltage range?
The PS-5AC has a maximum power consumption of 9.5W and supports a voltage range of 18-26VDC. It uses passive PoE delivery, making it compatible with standard PoE infrastructure available from us for streamlined deployment in warehouse and logistics environments.
Is the PS-5AC compliant with environmental and industry standards?
Yes, the PS-5AC is RoHS compliant and built with die-cast aluminum and white powder coating for durability. It meets stringent environmental testing standards including shock, vibration, and temperature specifications, making it suitable for demanding outdoor and industrial networking applications. Contact us today to verify compatibility with your specific deployment requirements.
The Ubiquiti Networks PS-5AC Data Networking is also known as
UBI-PS5AC
