Protection Type:
Surge Protection

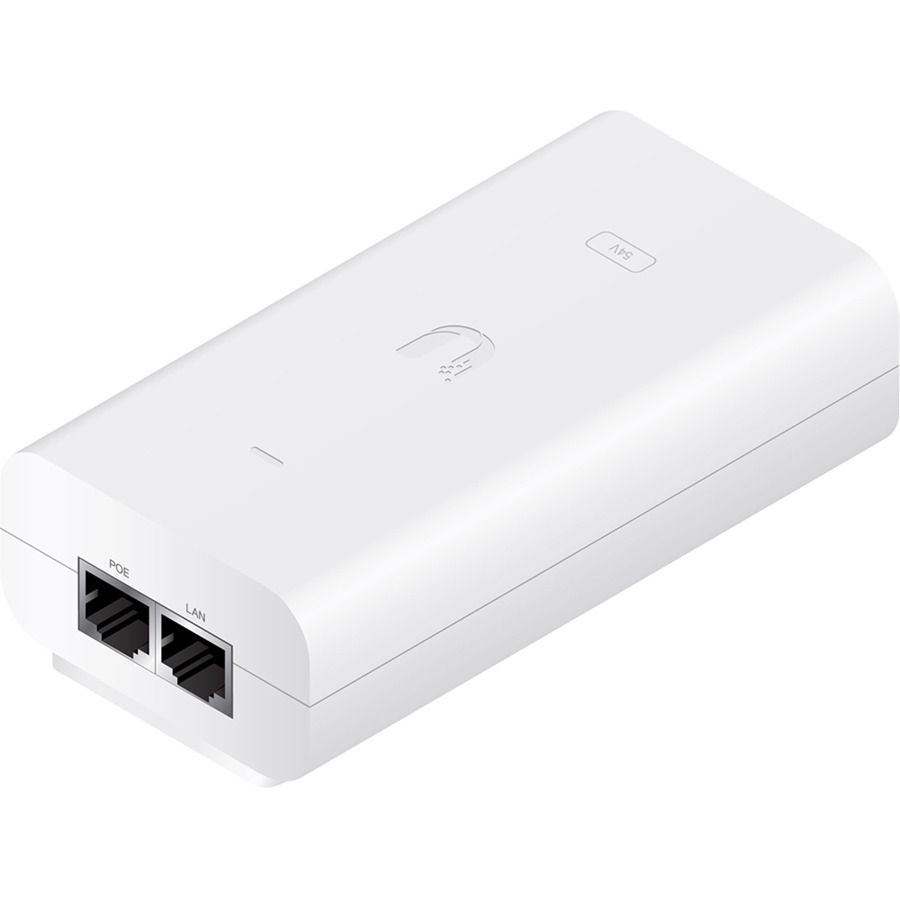

Ubiquiti Networks POE-54V-80W PoE Injectors
Part Number:
POE-54V-80W
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
54 V DC
Minimum Input Current:
400 mA
Maximum Input Current:
800 mA
Maximum Output Current:
1.50 A
Minimum Frequency:
50 Hz
Maximum Frequency:
60 Hz
Maximum Output Power:
80 W
Interfaces/Ports
Input Ports:
10/100/1000Base-T
Output Ports:
10/100/1000Base-T
Physical Characteristics
Height:
1.3"
Width:
4.8"
Depth:
2.6"
Weight (Approximate):
10.55 oz
Miscellaneous
Compatibility:
Ubiquiti EdgePoint Switches:
- EP-R8
- EP-S16
Certifications & Standards:
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010
- EN55024:2010
- FCC Class B
- RCM
Country of Origin:
China
Item Numbers
GTIN:
0029628498563, 0688474340800, 0696555023962, 0810354024580, 0810354024597, 0817882026642, 0818240250822, 0991429083883, 4250605554620
UPC:
029628498563, 688474340800, 696555023962, 810354024580, 810354024597, 817882026642, 818240250822, 991429083883
EAN:
0029628498563, 0688474340800, 0696555023962, 0810354024580, 0810354024597, 0817882026642, 0818240250822, 0991429083883, 4250605554620
UNSPSC:
39121004
Frequently Asked Questions
What is the power output specification of the Ubiquiti POE-54V-80W injector?
The Ubiquiti POE-54V-80W delivers 54V DC at 1.50A output, providing up to 80W of power delivery. This injector accepts 120V AC or 230V AC input and features greater than 86% efficiency to minimize power loss during conversion.
What type of network ports does this PoE injector support?
The POE-54V-80W features both input and output ports that support 10/100/1000Base-T Gigabit Ethernet connectivity. This allows it to inject power while maintaining full gigabit data rates across your network infrastructure.
How does the POE-54V-80W handle voltage regulation and output stability?
This injector maintains excellent power stability with line regulation under 1% and load regulation under 3%, ensuring consistent 54V output across varying network loads. The output ripple is specified at 200mVpp, providing clean power delivery to connected devices.
What are the operating temperature and humidity ranges for this PoE injector?
The POE-54V-80W operates reliably in environments from -20°C to 60°C (-4°F to 140°F) with operating humidity between 5% to 90% noncondensing. Storage temperature range extends from -30°C to 70°C (-22°F to 158°F), making it suitable for varied deployment conditions.
Does the Ubiquiti POE-54V-80W provide surge protection?
Yes, this injector includes 4kV surge immunity for both difference and common mode protection, safeguarding connected network equipment from electrical surges and transient voltage spikes.
What wiring configuration does this PoE injector use for power delivery?
The POE-54V-80W uses 4-pair powering, delivering power across pins 1, 2, 4, 5 (positive) and pins 3, 6, 7, 8 (negative), which allows it to utilize all four pairs of standard Ethernet cabling for maximum power delivery capability.
The Ubiquiti Networks POE-54V-80W PoE Injectors is also known as
UBI-POE54V80W
