Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current

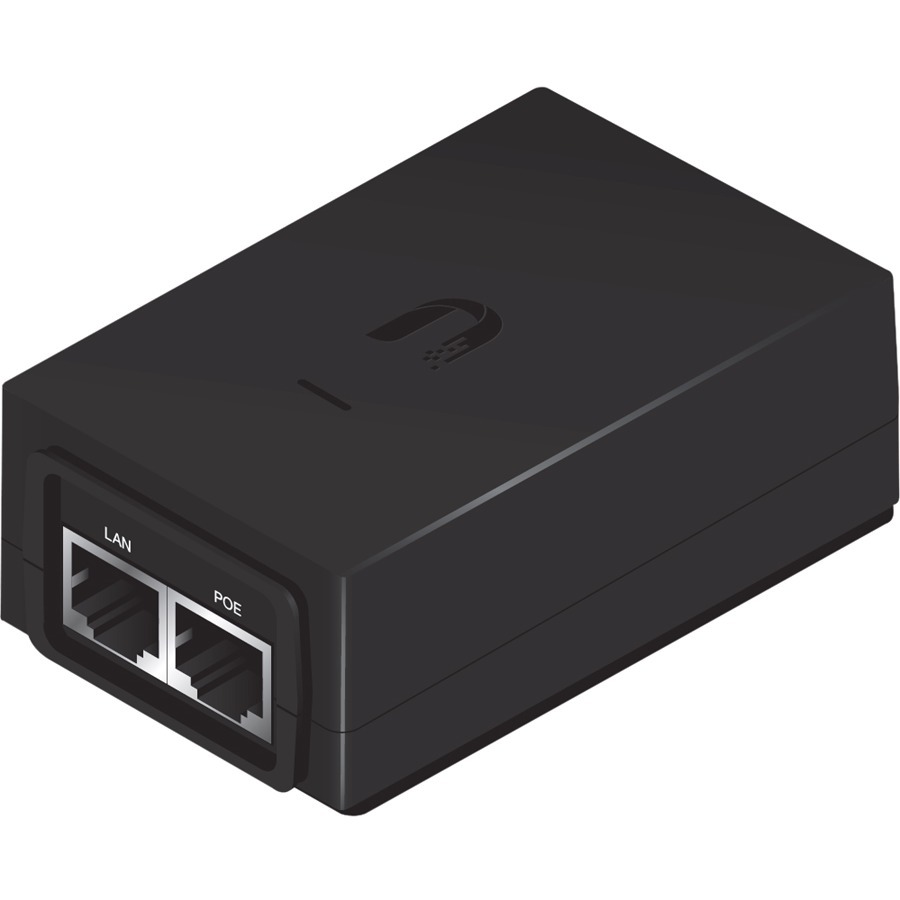

Ubiquiti Networks POE-48-24W PoE Injectors
Part Number:
POE-48-24W
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
48 V DC
Maximum Input Current:
600 mA
Maximum Output Current:
500 mA
Minimum Frequency:
47 Hz
Maximum Frequency:
63 Hz
Maximum Output Power:
24 W
Interfaces/Ports
Input Ports:
1 x Ethernet
Output Ports:
1 x Ethernet
Physical Characteristics
Height:
1.3"
Width:
3.5"
Depth:
2.2"
Weight (Approximate):
4.78 oz
Miscellaneous
Certifications & Standards:
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010
- EN55024:2010
- FCC Class B
Country of Origin:
China
Item Numbers
GTIN:
0017430516940, 0685239716948, 0810354021213, 0817882026574, 0818213997143, 0818239129634, 0818240857212, 0818254659291, 0818275835568, 0991430989303
UPC:
017430516940, 685239716948, 810354021213, 817882026574, 818213997143, 818239129634, 818240857212, 818254659291, 818275835568, 991430989303
EAN:
0017430516940, 0685239716948, 0810354021213, 0817882026574, 0818213997143, 0818239129634, 0818240857212, 0818254659291, 0818275835568, 0991430989303
UNSPSC:
39121004
Frequently Asked Questions
What is the power output specification of the Ubiquiti POE-48-24W injector?
The Ubiquiti POE-48-24W delivers 48V DC output at 500mA, providing up to 24W of power per port. This passive PoE injector is designed to power compatible Ubiquiti networking devices through standard Ethernet cabling. We offer this injector as part of our complete Ubiquiti product lineup available from barcodesinc.com.
What input voltage does the POE-48-24W require?
The POE-48-24W accepts both 120V AC and 230V AC input, making it suitable for deployment in different geographic regions and electrical environments. This universal voltage input capability simplifies installation across diverse warehouse and facility locations. Contact us today for integration assistance with your existing power infrastructure.
How many Ethernet ports does the Ubiquiti POE-48-24W have?
The POE-48-24W features one Ethernet input port and one Ethernet output port, allowing it to inject power into a single connected device. This single-port design makes it ideal for powering individual Ubiquiti access points or other compatible PoE devices in point-to-point deployments.
Is the Ubiquiti POE-48-24W compatible with standard PoE devices?
The POE-48-24W uses passive PoE technology with a 48V DC output, which is compatible with Ubiquiti devices designed for this voltage specification. It is not compatible with standard IEEE 802.3af/at PoE devices that expect 48-57V input on specific pin pairs. We recommend verifying device compatibility before deployment—contact us today for guidance on your specific setup.
What are the operating temperature specifications for the POE-48-24W?
According to the available technical documentation, the POE-48-24W is designed for standard indoor operating conditions. For complete environmental specifications including temperature and humidity ranges, we recommend contacting our team at barcodesinc.com to access the full datasheet.
Can I use the POE-48-24W to power multiple devices simultaneously?
No, the POE-48-24W is designed as a single-port injector with one Ethernet input and one Ethernet output, allowing it to power only one device at a time. For deployments requiring power distribution to multiple devices, you may need multiple injectors or a managed PoE switch. Visit barcodesinc.com to explore our full range of Ubiquiti PoE solutions for your network architecture.
The Ubiquiti Networks POE-48-24W PoE Injectors is also known as
UBI-POE4824W
