Protection Type:
- ESD Protection
- Surge Protection

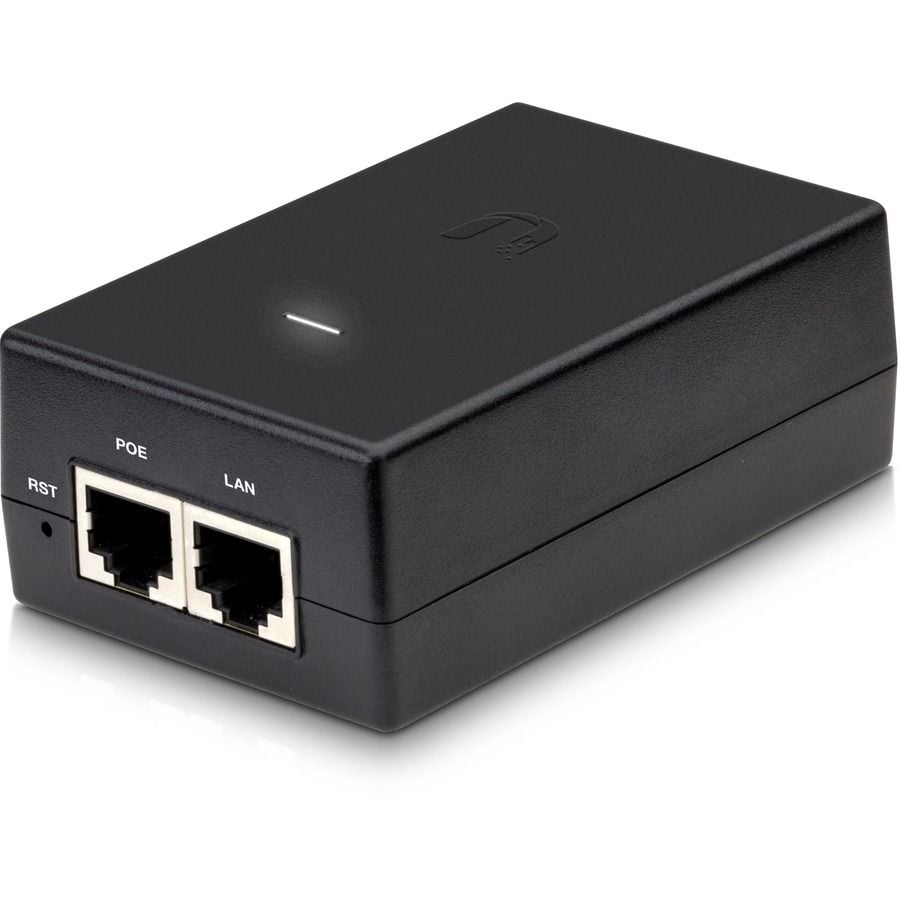

Ubiquiti Networks POE-24-24W-5P Data Networking
Part Number:
POE-24-24W-5P
Model:
Parts
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
24 V DC
Minimum Input Current:
200 mA
Maximum Input Current:
300 mA
Maximum Output Current:
1 A
Minimum Frequency:
47 Hz
Maximum Frequency:
63 Hz
Maximum Output Power:
24 W
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.2"
Width:
1.7"
Depth:
3.4"
Miscellaneous
Compatibility:
Ubiquiti airGateway Wireless Access Points
Item Numbers
GTIN:
0817882024914
UPC:
817882024914
EAN:
0817882024914
UNSPSC:
39121004
Frequently Asked Questions
What is the power output specification of the Ubiquiti POE-24-24W PoE Injector?
The Ubiquiti POE-24-24W delivers 24V DC output at 1A, providing a maximum of 24W of power. This injector accepts both 120V and 230V AC input, making it suitable for diverse installation environments.
What is the maximum PoE wattage per port on this Ubiquiti PoE injector?
The POE-24-24W provides a maximum of 12W per data/PoE output port at 24V DC. The combined maximum PoE wattage across all 5 data ports is 50W, allowing you to power multiple devices simultaneously.
Does the Ubiquiti POE-24-24W support passive PoE?
Yes, the POE-24-24W uses passive PoE technology for power delivery. The output voltage range is 22-24VDC, which is compatible with Ubiquiti devices and other equipment designed for 24V passive PoE.
How many data ports does the Ubiquiti POE-24-24W have?
The POE-24-24W features 5 data ports for connecting powered devices. It also includes 1 x 100/1000 SFP port for additional network connectivity options.
What input voltage options are available for the Ubiquiti POE-24-24W?
The POE-24-24W accepts both 120V AC and 230V AC input power, providing flexibility for installation in different regions and facilities without requiring separate models or converters.
Is the Ubiquiti POE-24-24W suitable for outdoor installations?
Yes, Ubiquiti PoE injectors are designed for professional network installations. We recommend consulting the product datasheet and installation guidelines, and our team can help you determine the best deployment approach for your specific environment. Contact us today for installation support and guidance.
The Ubiquiti Networks POE-24-24W-5P Data Networking is also known as
UBI-POE2424W5P
