Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current

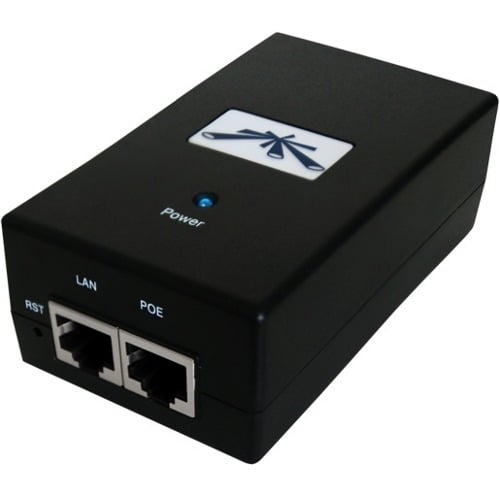

Ubiquiti Networks POE-24-12W PoE Injectors
Part Number:
POE-24-12W
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
24 V DC
Maximum Input Current:
300 mA
Maximum Output Current:
500 mA
Minimum Frequency:
47 Hz
Maximum Frequency:
63 Hz
Maximum Output Power:
12 W
Interfaces/Ports
Input Ports:
1 x Ethernet
Output Ports:
1 x Ethernet
Physical Characteristics
Height:
1.2"
Width:
3.4"
Depth:
3.3"
Weight (Approximate):
3.25 oz
Miscellaneous
Certifications & Standards:
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010 (CISPR22) Class B
- EN55024:2010
- FCC Class B
- CE
Country of Origin:
China
Item Numbers
GTIN:
0123798488031, 0609728685409, 0810354021183, 0810354022982, 0817882021975, 0817882026635, 0818203157595, 0818213968525, 0818213994708, 0818231487312
UPC:
123798488031, 609728685409, 810354021183, 810354022982, 817882021975, 817882026635, 818203157595, 818213968525, 818213994708, 818231487312
EAN:
0123798488031, 0609728685409, 0810354021183, 0810354022982, 0817882021975, 0817882026635, 0818203157595, 0818213968525, 0818213994708, 0818231487312
UNSPSC:
39121004
Frequently Asked Questions
What is the power output specification of the Ubiquiti POE-24-12W injector?
The Ubiquiti POE-24-12W delivers 24V DC output at 500 mA, providing a maximum of 12W per port. This passive PoE injector maintains an output voltage range of 22-24VDC, making it suitable for powering compatible Ubiquiti network devices over a single Ethernet connection.
What input voltage does the POE-24-12W PoE injector accept?
The POE-24-12W accepts both 120V AC and 230V AC input, providing flexibility for deployment in different regional power environments. This dual-voltage capability makes it adaptable to various facility power standards without requiring separate units.
How many Ethernet ports does this Ubiquiti PoE injector have?
The POE-24-12W features 1 Ethernet input port and 1 Ethernet output port. This single-port design is ideal for injecting power into individual devices that require 24V passive PoE connectivity.
Is the Ubiquiti POE-24-12W compatible with standard PoE devices?
The POE-24-12W uses passive PoE methodology with 24V DC output, which is compatible with Ubiquiti devices designed for passive 24V power over Ethernet. It is not compatible with standard IEEE 802.3af/at PoE devices, which require different voltage and power delivery methods.
What are the operating temperature and humidity specifications for the POE-24-12W?
According to Ubiquiti's specifications, the POE-24-12W operates in temperature ranges and humidity conditions suitable for network infrastructure environments. We recommend consulting the detailed datasheet or contacting our team for specific environmental operating parameters to ensure proper deployment in your facility.
Where can I purchase the Ubiquiti POE-24-12W PoE injector?
We offer the Ubiquiti POE-24-12W PoE injector as part of our comprehensive AIDC and networking solutions. Visit barcodesinc.com or contact us today to check availability, pricing, and delivery options for your warehouse or logistics infrastructure needs.
The Ubiquiti Networks POE-24-12W PoE Injectors is also known as
UBI-POE2412W
