Protection Type:
- ESD Protection
- Clamping Protection
- Surge Protection

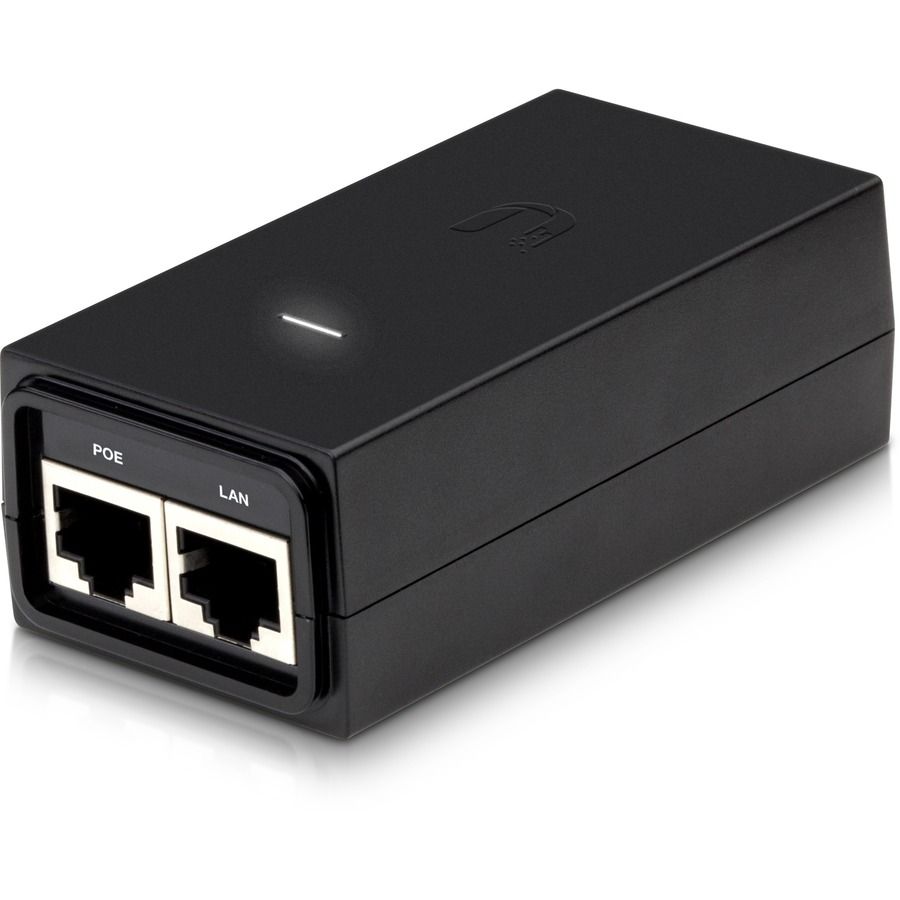

Ubiquiti Networks POE-24-12W-5P Data Networking
Part Number:
POE-24-12W-5P
Model:
Parts
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
24 V DC
Minimum Input Current:
200 mA
Maximum Input Current:
300 mA
Maximum Output Current:
500 mA
Maximum Output Power:
12 W
Interfaces/Ports
Input Ports:
Ethernet
Output Ports:
PoE
Physical Characteristics
Form Factor:
Wall Mountable
Height:
1.1"
Width:
1.7"
Depth:
2.3"
Weight (Approximate):
3.25 oz
Miscellaneous
Compatibility:
Ubiquiti airGateway Wireless Access Points
Item Numbers
GTIN:
0817882024877
UPC:
817882024877
EAN:
0817882024877
UNSPSC:
39121004
Frequently Asked Questions
What is the maximum PoE power output per port on the Ubiquiti POE-24-12W-5P?
The Ubiquiti POE-24-12W-5P delivers a maximum of 12W per data/PoE output port at 24V DC. The injector supports up to 50W combined across all 5 data ports, making it suitable for powering multiple lightweight network devices simultaneously.
What voltage does the Ubiquiti POE-24-12W-5P require for input power?
This PoE injector accepts both 120V AC and 230V AC input power, providing flexible installation options for different regional electrical standards. It converts the AC input to 24V DC output for passive PoE delivery to your network devices.
Is the Ubiquiti POE-24-12W-5P compatible with standard PoE devices?
The POE-24-12W-5P uses passive PoE technology with 24V DC output, which is not compatible with standard IEEE 802.3af/at PoE devices that require 48-57V. This injector is designed for Ubiquiti devices and other equipment specifically rated for 24V passive PoE input.
What PoE voltage range does this Ubiquiti injector maintain?
The Ubiquiti POE-24-12W-5P maintains a PoE output voltage range of 22-24V DC, ensuring stable power delivery within the operating specifications of compatible 24V passive PoE devices.
How many Ethernet ports does the Ubiquiti POE-24-12W-5P have?
The POE-24-12W-5P features one 100/1000 SFP port for data input and 5 data/PoE output ports for connecting powered devices. This configuration allows you to inject power into multiple network connections from a single injector unit.
What type of PoE method does the Ubiquiti POE-24-12W-5P use?
The Ubiquiti POE-24-12W-5P uses passive PoE technology, which delivers power directly over standard Ethernet cabling without requiring active negotiation between the injector and powered devices. This passive approach is ideal for outdoor and remote installations where simplicity and reliability are priorities.
The Ubiquiti Networks POE-24-12W-5P Data Networking is also known as
UBI-POE2412W5P
