Ubiquiti Networks PBE-M5-300-ISO-US Data Networking

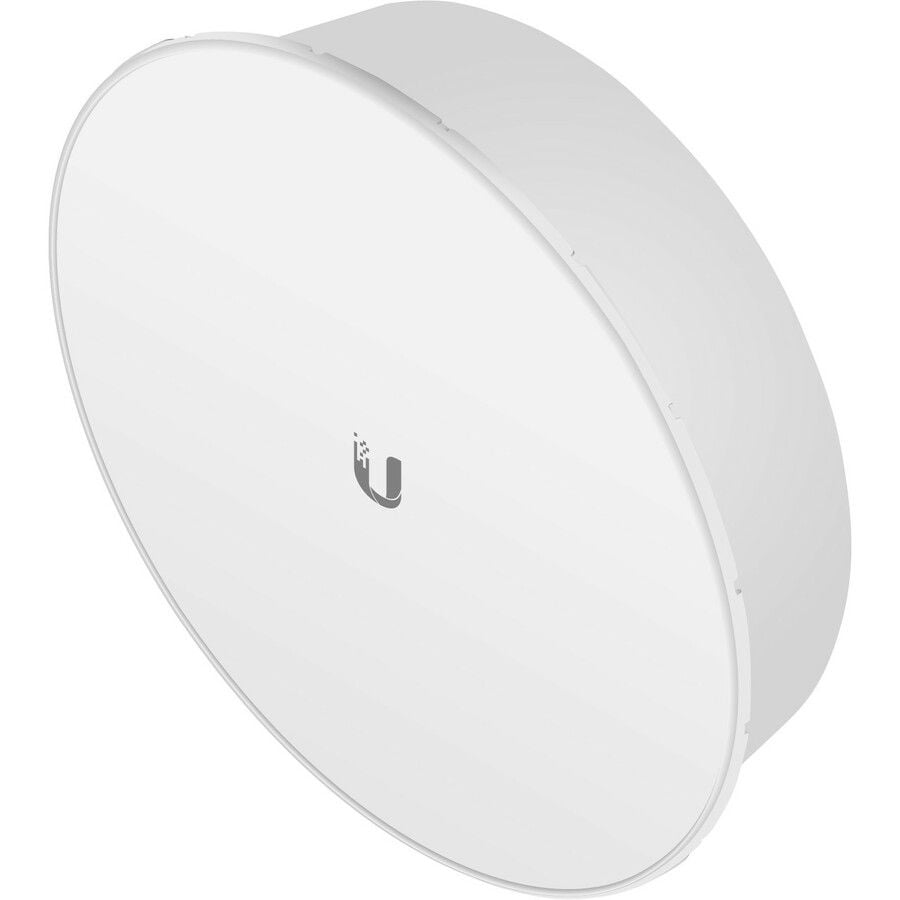

The Ubiquiti PowerBeam M5 PBE-M5-300-ISO delivers a maximum outdoor range of 12.4 miles, making it ideal for long-distance point-to-point wireless bridge applications. This extended range is achieved through its 22 dBi directional antenna gain and IEEE 802.11n 5 GHz transmission standard.

The PBE-M5-300-ISO requires a 24V, 0.5A PoE power supply using passive PoE on pairs 4, 5+ and 7, 8 return, with a supported voltage range of 20-26VDC. Maximum power consumption is only 6W, making it efficient for remote outdoor deployments.

Yes, the PBE-M5-300-ISO is built for harsh outdoor conditions with an outdoor UV-stabilized plastic enclosure, operating temperature range of -40 to 70°C, and operating humidity tolerance of 5 to 95% non-condensing. It also features wind survivability rated to 200 km/h (125 mph) and has passed salt fog testing per IEC 68-2-11 standards.

The PBE-M5-300-ISO features one 10/100 Ethernet port and delivers IEEE 802.11n wireless performance at 150 Mbit/s over the 5 GHz band. It supports flexible channel sizes of 5, 8, 10, 20, 30, and 40 MHz for optimized bandwidth allocation.

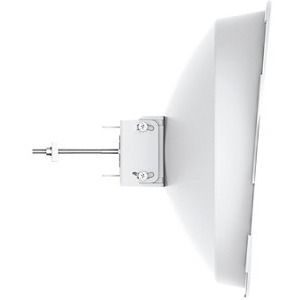

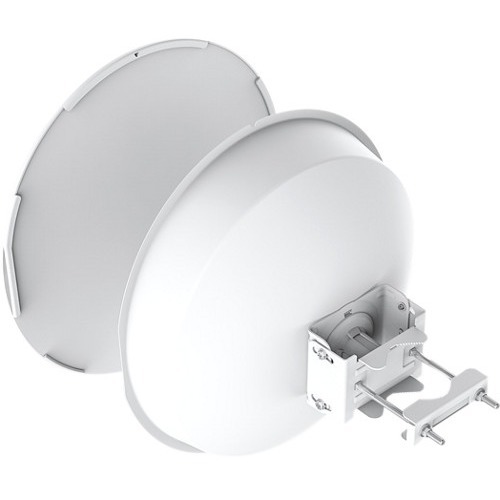

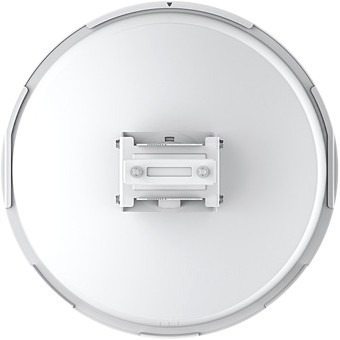

Yes, the PBE-M5-300-ISO comes with a pole-mount kit included and features a compact design measuring 364 x 364 x 276 mm and weighing only 2.55 kg (5.62 lb), making field installation and repositioning straightforward for warehouse and logistics applications.

The PBE-M5-300-ISO holds wireless approvals from the FCC, IC, and CE, and is fully RoHS compliant. It also meets rigorous environmental testing standards including vibration (IEC 68-2-6), temperature shock (IEC 68-2-14), and ESD/EMP protection rated at ±24 kV air and contact.
