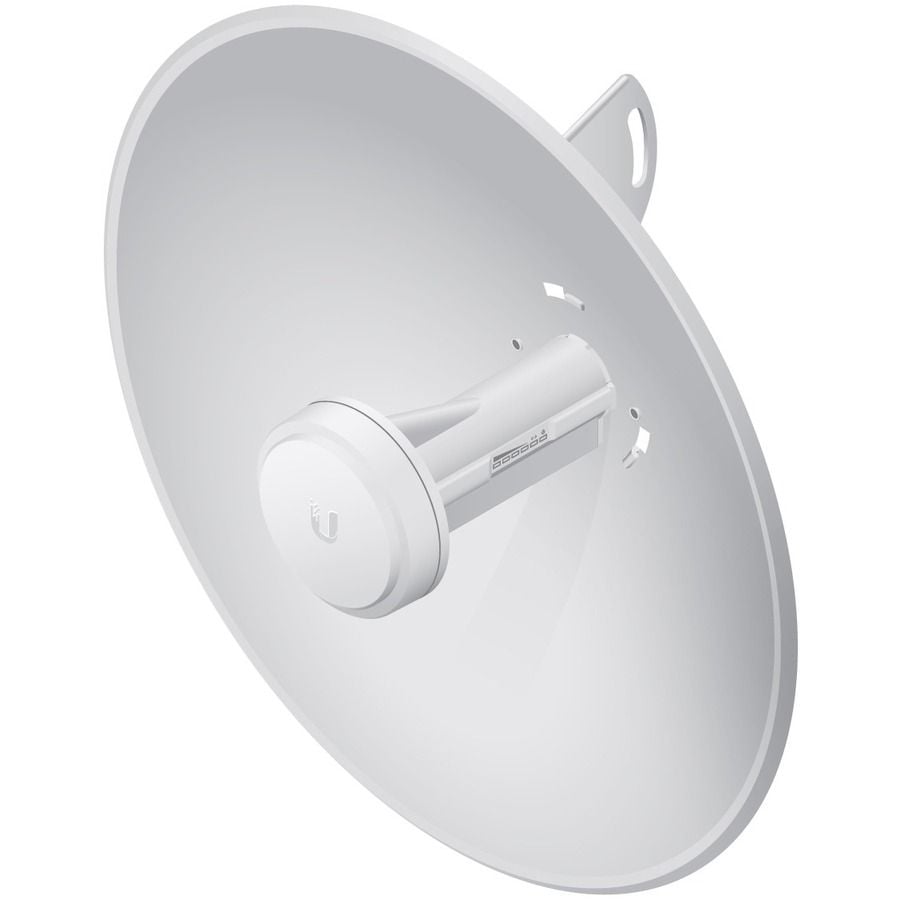

Ubiquiti Networks PBE-M2-400-US Data Networking

The Ubiquiti PowerBeam PBE-M2-400 offers a maximum outdoor range of 12.4 miles, making it suitable for long-distance point-to-point wireless bridge deployments. This extended range is achieved through its 18 dBi antenna gain and 2 GHz frequency band operation.

The PBE-M2-400 features one 10/100 Fast Ethernet network interface with an RJ-45 connector. It supports 150+ Mbps throughput and uses passive PoE (Power over Ethernet) for simplified deployment, requiring only a single Ethernet cable for both power and data.

The PBE-M2-400 features galvanized steel construction with powder-coating and GEOMET-coated fasteners for superior corrosion resistance. It includes a built-in mechanical tilt bracket offering 20° of uptilt and up to 20° of downtilt, plus an easy push-button antenna feed removal for quick maintenance and pole mounting.

Yes, the PBE-M2-400 can be managed through Ubiquiti's centralized management system, which allows operators to monitor device status, perform mass firmware upgrades, manage groups of devices, schedule tasks, and access the web UI. This enables efficient network-wide administration of multiple Ubiquiti devices.

The main differences are frequency band and antenna gain: the PBE-M2-400 operates at 2.4 GHz with 18 dBi antenna gain, while the PBE-M5-400 operates at 5 GHz with 25 dBi antenna gain. Both deliver 150+ Mbps throughput, but the PBE-M5-400 features a Gigabit Ethernet port compared to the PBE-M2-400's Fast Ethernet interface.

The PBE-M2-400 is rated for operating temperatures from -40 to 70°C and operating humidity from 5 to 95% non-condensing. Its outdoor UV-stabilized plastic enclosure and corrosion-resistant materials ensure reliable performance in harsh outdoor environments including salt fog conditions.
