Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points

Part Number: PBE-5AC-GEN2-US
Model: Parts
Add to My Shopping List Add to Compare
$91.72
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
5 GHz
Outdoor Antenna Range
15.5 Mile
Wireless Transmission Speed
450 Mbit/s

Product Description:

  Access Point, Ubiquiti Networks, Ubiquiti PowerBeam AC Gen2 PBE-5AC-Gen2 IEEE 802.11ac 450 Mbit/s Wireless Bridge, 5 GHz, 15.5 Mile Maximum Outdoor Range, 1 x Network (RJ-45), Gigabit Ethernet, Pole-mountable
Explore all Ubiquiti Networks UniFi Data Networkings
Add to Quote
Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points

Ubiquiti Networks UniFi Data Networking Model Overview

Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.

Ubiquiti Networks PBE-5AC-GEN2-US Wireless Access Points Overview

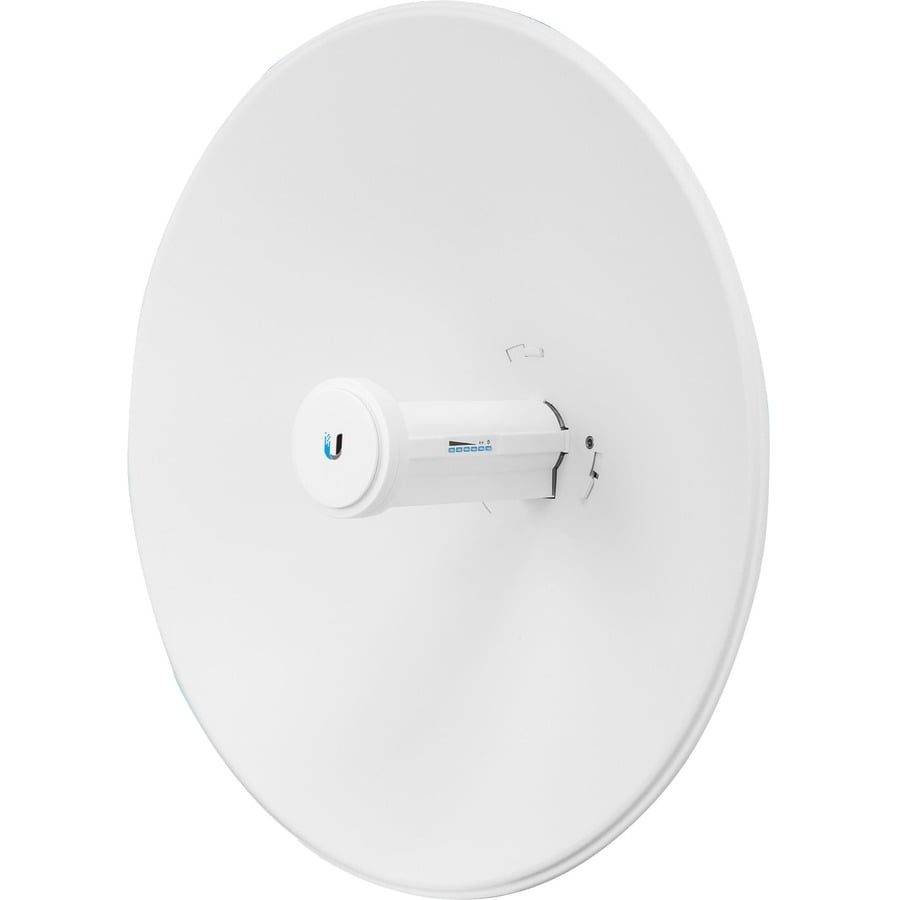

High-Performance airMAX® ac Bridge

Incorporating a dish reflector design with proprietary airMAX® ac technology, the PowerBeam® AC is ideal for CPE deployments requiring maximum performance.

Management Wi-Fi Radio

The PowerBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection

Featuring enhanced protection against ESD events, the PowerBeam® AC offers a more robust mount with a convenient lifting loop or handle.

Integrated Radio Design

Ubiquiti's InnerFeed® technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.

Plug and Play Installation

The PowerBeam® AC requires no tools for assembly; only a single wrench is required for pole-mounting.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna "Beam" Performance

The form factor of the PowerBeam® AC features the highest gain for its size. The PowerBeam AC's excellent beam directivity provides the best performance in high-noise environments.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
5 GHz
Outdoor Antenna Range:
15.5 Mile
Wireless Transmission Speed:
450 Mbit/s
Interfaces/Ports
Ethernet Technology:
Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
Pole-mountable
Height:
9.1"
Width:
16.5"
Depth:
16.5"
Weight (Approximate):
4.89 lb
Miscellaneous
Package Contents:
  • PowerBeam AC Gen2 PBE-5AC-Gen2 Wireless Bridge
  • 24V, 0.5A Gigabit PoE Adapter
  • Pole-Mounting Kit
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0696552126246, 0703624197612, 0810354026782, 0818203256151
UPC: 696552126246, 703624197612, 810354026782, 818203256151
EAN: 0696552126246, 0703624197612, 0810354026782, 0818203256151
UNSPSC: 43222631

Frequently Asked Questions

The PowerBeam 5AC Gen2 delivers up to 450+ Mbps throughput, making it suitable for high-performance point-to-multipoint wireless deployments. This performance is achieved through Ubiquiti's airMAX ac processor and optimized antenna design.

The PowerBeam 5AC Gen2 supports IEEE 802.11ac with airMAX ac protocol support, Access Point PtMP airMAX Mixed Mode, and long-range Point-to-Point link mode. It runs on airOS 8, Ubiquiti's revolutionary operating system for airMAX ac products.

The PowerBeam 5AC Gen2 directs RF energy in a tighter beamwidth, which focuses transmission in one direction and blocks or spatially filters out noise from other RF signals. This improved noise immunity is especially important in areas crowded with other RF signals of the same or similar frequency.

The PowerBeam 5AC Gen2 offers a maximum outdoor range of 15.5 miles, making it ideal for long-distance wireless bridge and point-to-multipoint applications.

The PowerBeam 5AC Gen2 supports selectable channel widths of 10, 20, 30, 40, 50, 60, and 80 MHz for Point-to-Point links, and 10, 20, 30, and 40 MHz for Point-to-Multipoint mode. This flexibility allows optimization for different deployment scenarios and interference conditions.

The PowerBeam 5AC Gen2 includes a dedicated Wi-Fi radio for management, automatic channel selection, transmit power control (automatic or manual), and automatic distance selection with ACK timing. It also features WPA2 security for secure network management and data transmission.
