What is the maximum outdoor range of the Ubiquiti PBE-5AC-620?
The Ubiquiti PowerBeam ac PBE-5AC-620 delivers a maximum outdoor range of 18.6 miles, making it ideal for long-distance point-to-point wireless bridge deployments in warehouse and logistics networks. This extended range is achieved through its 25 dBi gain antenna and 5 GHz operating frequency.
What power supply and consumption specifications does the PBE-5AC-620 require?
The PBE-5AC-620 uses a 24V, 0.5A Gigabit PoE adapter (included) with passive PoE on pairs 4, 5+ and 7, 8 return. Maximum power consumption is 8.5W, and the supported voltage range is 20 to 26VDC, making it efficient for remote outdoor installations.
Is the PBE-5AC-620 suitable for harsh outdoor environments?
Yes, the PBE-5AC-620 is engineered for demanding outdoor conditions with UV-stabilized plastic enclosure, powder-coated SPCC housing, and wind survivability rated to 200 km/h (125 mph). It also features ESD/EMP protection (±24 kV air and contact), operates across -40 to 70°C, and passes salt fog, UV, vibration, and wind-driven rain testing standards.
What networking interface and data rates does the PBE-5AC-620 support?
The PBE-5AC-620 features one 10/100/1000 Gigabit Ethernet (RJ-45) port and delivers IEEE 802.11a/b wireless speeds up to 450 Mbit/s. It supports channel sizes from 10 to 80 MHz in point-to-point mode and 10 to 40 MHz in point-to-multipoint mode.
What mounting and installation hardware is included with the PBE-5AC-620?

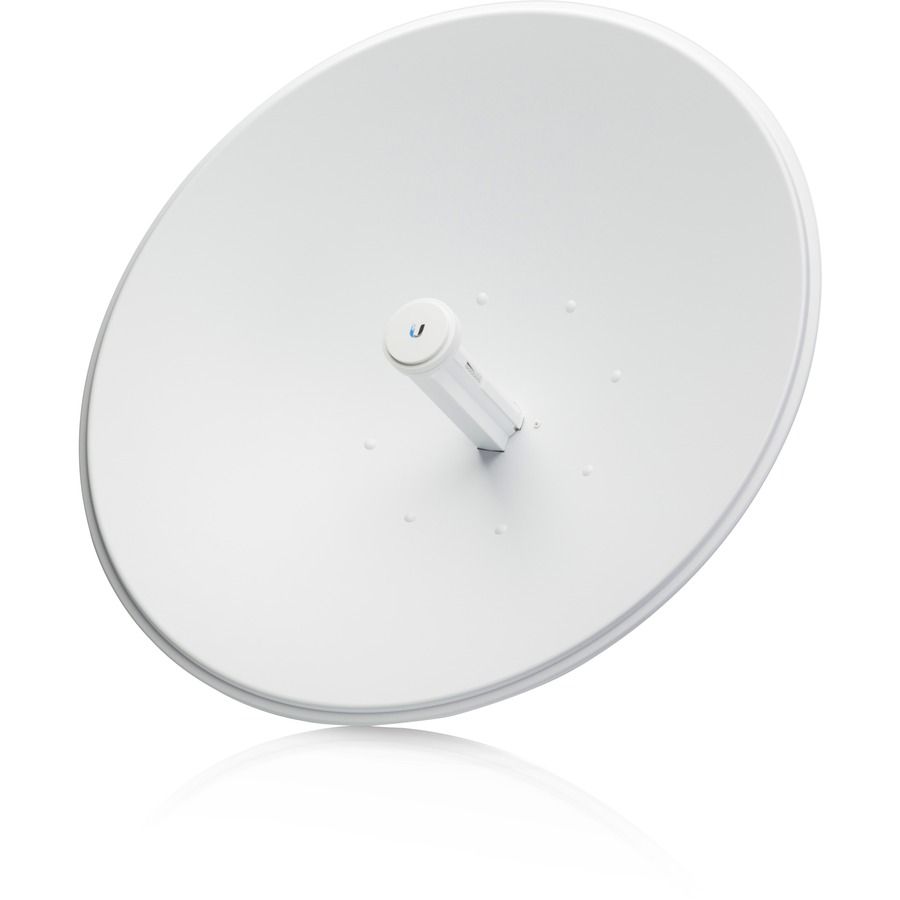

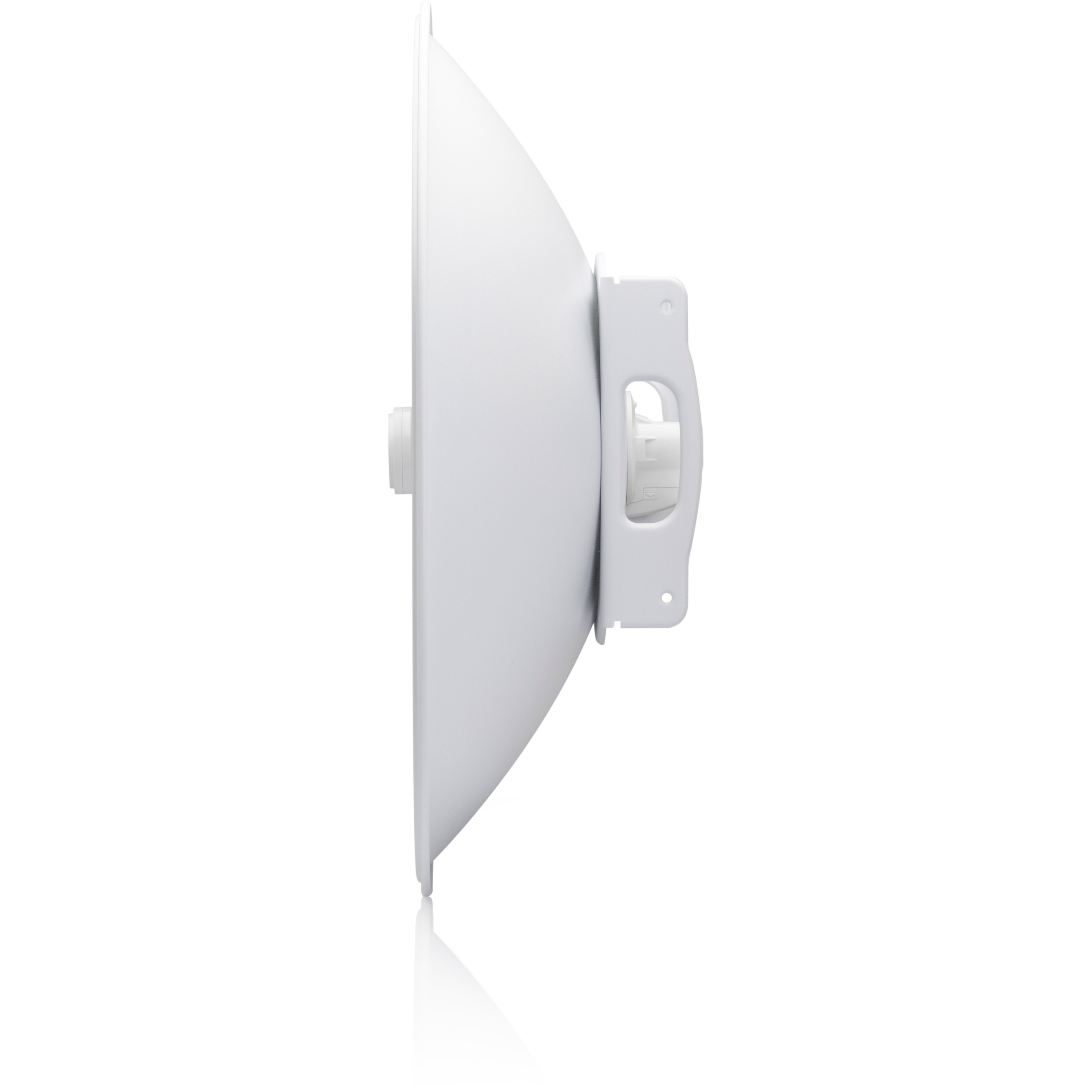

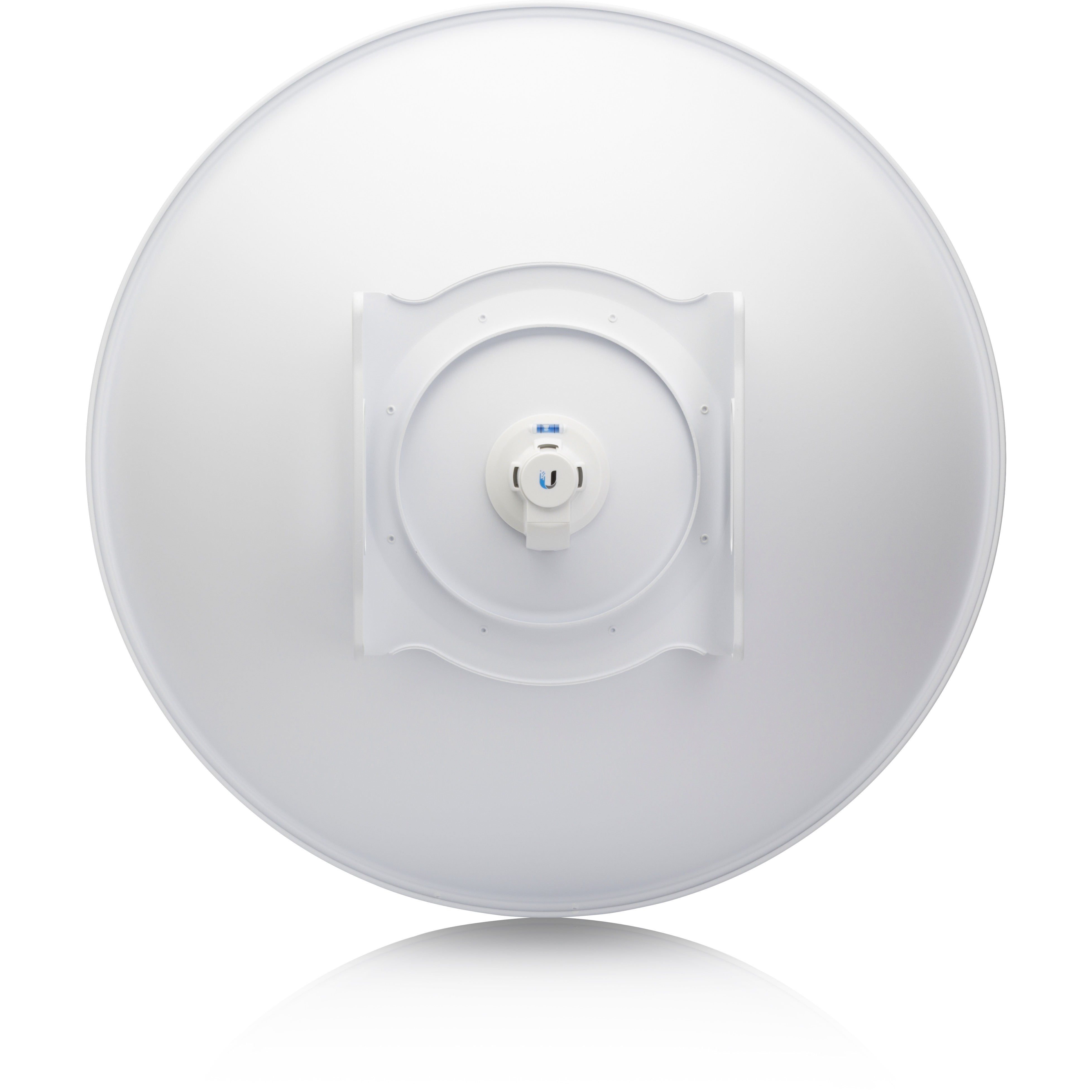

The PBE-5AC-620 includes a pole-mounting kit for straightforward outdoor installation. The unit measures 420 x 420 x 230 mm and weighs 2.22 kg, with integrated antenna feed via a dish reflector design that simplifies deployment on existing infrastructure.
What certifications and compliance standards does the PBE-5AC-620 meet?
The PBE-5AC-620 is certified by CE, FCC, and IC, and is RoHS compliant. It meets rigorous environmental testing standards including IEC 68-2-11 (salt fog), IEC 68-2-6 (vibration), IEC 68-2-14 (temperature shock), and IEC 68-2-5 (UV), ensuring reliability in mission-critical warehouse and logistics applications. Contact us today to discuss how this device fits your network infrastructure needs.
The Ubiquiti Networks PBE-5AC-620-US Data Networking is also known as
UBI-PBE5AC620US
