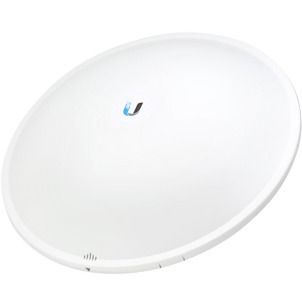

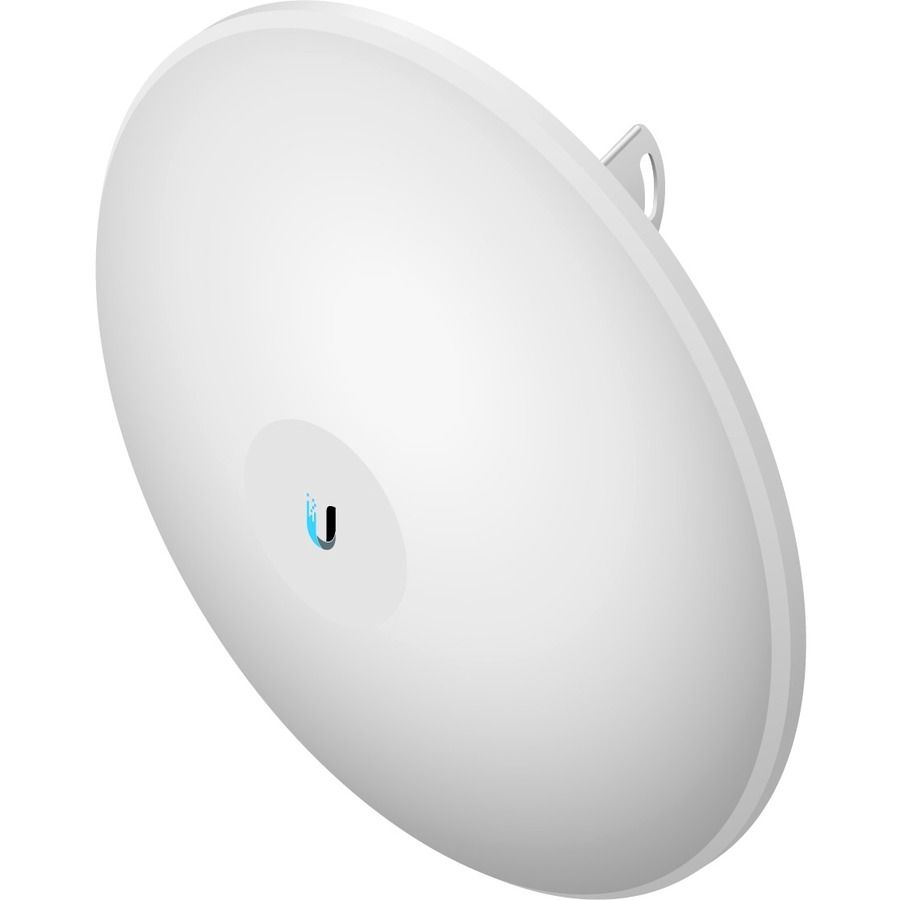

Ubiquiti Networks PBE-5AC-500 Network Antennas

The Ubiquiti PowerBeam ac PBE-5AC-500 delivers a maximum outdoor range of 15.5 miles, making it ideal for long-distance point-to-point wireless links in warehouse and logistics environments. This extended range is achieved through its 27 dBi gain antenna and 5 GHz IEEE 802.11ac technology.

The PBE-5AC-500 requires 24V, 0.5A Gigabit PoE power with a supported voltage range of 20-26VDC and draws a maximum of 8W during operation. It uses passive PoE on pairs 4, 5+ and 7, 8 return, simplifying deployment in outdoor warehouse and distribution center locations.

Yes, the PBE-5AC-500 is engineered for outdoor durability with UV-stabilized plastic enclosure, wind survivability rated to 200 km/h (125 mph), and operating temperature range of -40 to 70°C. It also includes ESD/EMP protection (±24 kV air and contact) and passes salt fog testing to IEC 68-2-11 standards, making it suitable for demanding logistics and warehouse outdoor installations.

The PBE-5AC-500 features a single 10/100/1000 Gigabit Ethernet port and delivers 450 Mbit/s wireless throughput over IEEE 802.11ac at 5 GHz. It supports flexible channel sizes from 10 to 80 MHz in point-to-point mode and 10 to 40 MHz in point-to-multipoint mode for optimized network performance.

The PBE-5AC-500 is pole-mountable and includes a pole-mount kit as standard equipment. It features built-in mechanical downtilt adjustment of ±20° to optimize antenna alignment for your specific deployment requirements.

The PBE-5AC-500 is certified by the FCC, IC, and CE, ensuring compliance with North American and European wireless regulations. It is also RoHS compliant, meeting environmental standards for warehouse and logistics equipment procurement. Contact us today to verify certification status for your specific region and application needs.
