Ubiquiti Networks PBE-5AC-400-ISO-US Data Networking

The PBE-5AC-400-ISO delivers a maximum outdoor range of 15.5 miles, making it ideal for long-distance point-to-point wireless bridge deployments. This extended range is achieved through its 25 dBi directional antenna gain and IEEE 802.11ac 5 GHz technology.

The unit requires 24V, 0.5A Gigabit PoE (Power over Ethernet) using passive PoE on pairs 4, 5+ and 7, 8 return, with a supported voltage range of 20-26VDC. Maximum power consumption is 8.5W, making it highly efficient for outdoor installations.

Yes, the PBE-5AC-400-ISO is built for demanding outdoor conditions with UV-stabilized plastic enclosure, operating temperature range of -40 to 70°C, and humidity tolerance of 5 to 95% non-condensing. It also features salt fog testing compliance (IEC 68-2-11) and can withstand wind speeds up to 200 km/h (125 mph).

The unit provides a single 10/100/1000 Gigabit Ethernet port for flexible network connectivity. It supports IEEE 802.11ac wireless with 450 Mbit/s throughput and configurable channel sizes from 10 to 80 MHz in point-to-point mode.

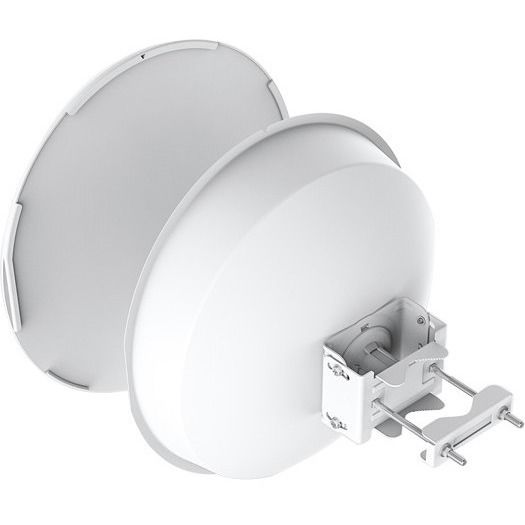

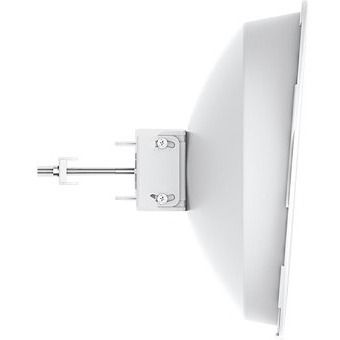

The PBE-5AC-400-ISO is pole-mountable and includes a pole-mount kit. It features built-in mechanical downtilt adjustment of ±20° to optimize antenna alignment for your specific deployment needs.

The PBE-5AC-400-ISO holds wireless approvals from the FCC, IC (Canada), and CE (Europe), and is fully RoHS compliant. It also meets vibration testing standards (IEC 68-2-6) and includes ESD/EMP protection rated at ±24 kV for both air and contact scenarios.
