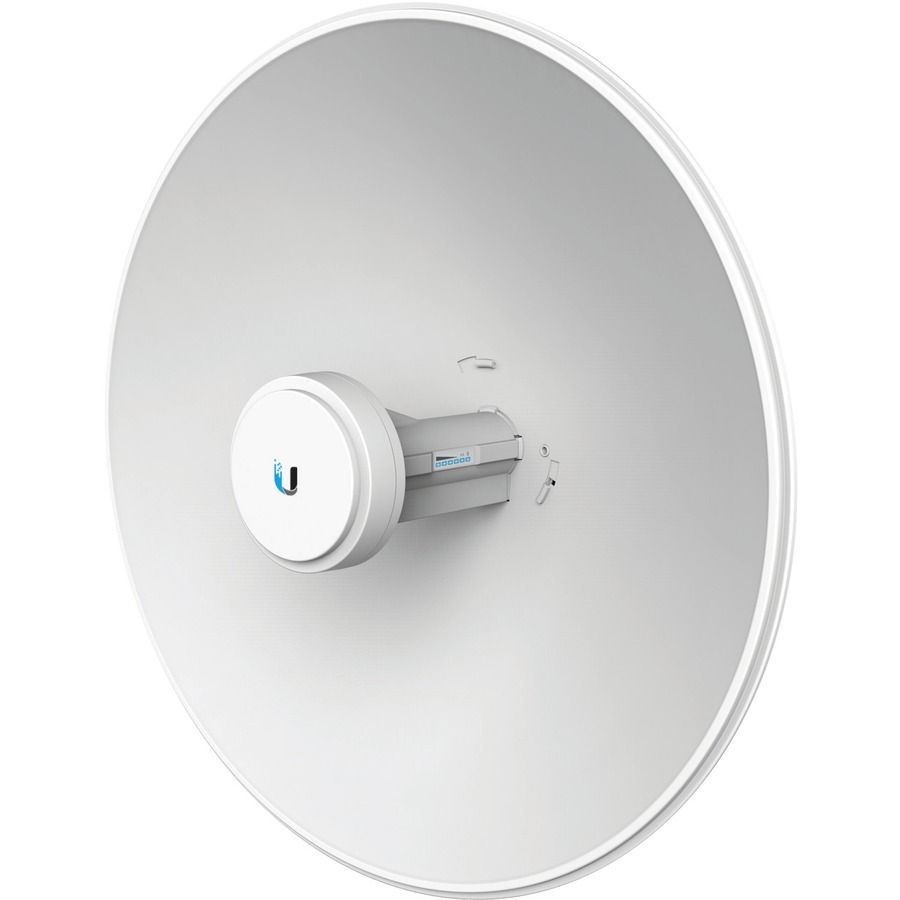

What wireless standard and data rate does the Ubiquiti PBE-2AC-400 support?
The PBE-2AC-400 operates on IEEE 802.11ac and delivers 330 Mbit/s wireless throughput. This AC-class bridge is designed for high-speed point-to-point wireless connectivity in outdoor deployments.
What frequency band does this PowerBeam operate on?
The PBE-2AC-400 operates on the 2.4 GHz frequency band, making it suitable for long-range wireless bridge applications where 5 GHz models may not be appropriate. It features an 18 dBi antenna gain for extended coverage.
How is the PBE-2AC-400 powered, and what are the power requirements?
The unit is powered via passive PoE (Power over Ethernet) using a 24V, 0.5A Gigabit PoE adapter, with a supported voltage range of 20-26VDC. Maximum power consumption is 8.5W, making it energy-efficient for remote deployments.
What mounting options and mechanical features does the PBE-2AC-400 include?

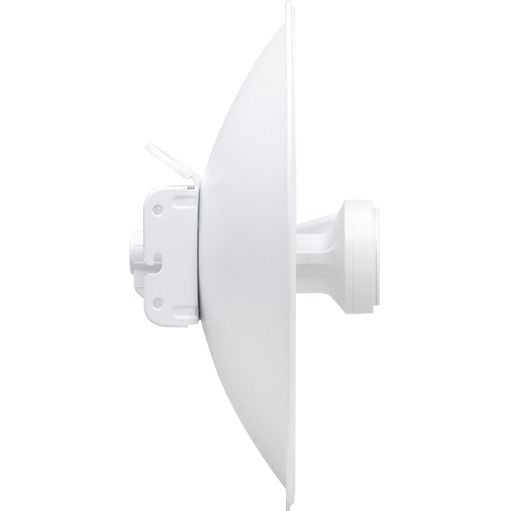

The PBE-2AC-400 comes with a pole-mounting kit and features built-in mechanical tilt capability with ±20° of adjustment (20° uptilt and up to 20° downtilt). The antenna feed can be detached with a push button for easy field maintenance.
How durable is the PBE-2AC-400 in harsh outdoor environments?
The unit is built for corrosion resistance with GEOMET-coated fasteners and a galvanized steel dish with powder-coat finish. It survives wind speeds up to 200 km/h (125 mph), operates in temperatures from -40 to 70°C, and has passed salt fog, vibration, UV, and wind-driven rain testing per industry standards.
What networking interface and management capabilities does the PBE-2AC-400 provide?
The PBE-2AC-400 includes one 10/100 Ethernet port for network connectivity and can be centrally managed through Ubiquiti's controller software, which supports network mapping, device status monitoring, mass firmware upgrades, and task scheduling. Contact us today to discuss integration with your network infrastructure.
The Ubiquiti Networks PBE-2AC-400-US Data Networking is also known as
UBI-PBE2AC400US
