What is the operating frequency range of the Ubiquiti NBE-M2-400?
The Ubiquiti Networks NBE-M2-400(US) operates in the 2405-2475 MHz frequency band with an 18 dBi gain. This point-to-multipoint wireless system supports channel sizes of 5, 8, 10, 20, 30, and 40 MHz, making it flexible for various deployment scenarios. We offer this model for high-performance outdoor wireless links.
What are the power requirements and consumption specs for this NanoBeam unit?
The NBE-M2-400 requires 24V PoE (Power over Ethernet) at 0.5A and consumes a maximum of 6W during operation. This low power consumption makes it efficient for remote deployments where power budgets are critical. Visit barcodesinc.com to verify compatibility with your existing PoE infrastructure.
How durable is the NBE-M2-400 in harsh outdoor environments?
The NBE-M2-400 is built with an outdoor UV-stabilized plastic enclosure and passes rigorous environmental testing including salt fog, wind-driven rain, temperature shock, vibration, and UV exposure per IEC standards. It survives wind speeds up to 120 km/h (75 mph) and operates reliably across temperatures from -40°C to 70°C (-40°F to 158°F). This makes it suitable for demanding warehouse, logistics, and outdoor infrastructure deployments.
What networking interface and processor specifications does this unit have?
The NBE-M2-400 features one 10/100 Ethernet port for connectivity and is powered by an Atheros MIPS 74Kc processor running at 560 MHz with 64 MB DDR2 RAM and 8 MB Flash memory. This configuration provides reliable point-to-multipoint wireless bridging for network extension in warehouse and logistics operations.
What wireless standards and modulation does the NBE-M2-400 support?
The NBE-M2-400 supports 802.11g modulation with data rates from 1 to 24 Mbps, transmit power of 28 dBm (±2 dB), and receive sensitivity of -97 dB. It features dual linear polarization and includes four WLAN signal strength LEDs that are software-adjustable to correspond to custom RSSI levels for real-time link monitoring.
Is the NBE-M2-400 certified for use in North America?
Yes, the NBE-M2-400(US) holds wireless approvals from the FCC and IC (Industry Canada) for North American deployment, and also carries CE certification for European markets. The unit is also RoHS compliant, ensuring it meets environmental and safety standards. Contact us today to confirm regulatory compliance for your specific deployment region.

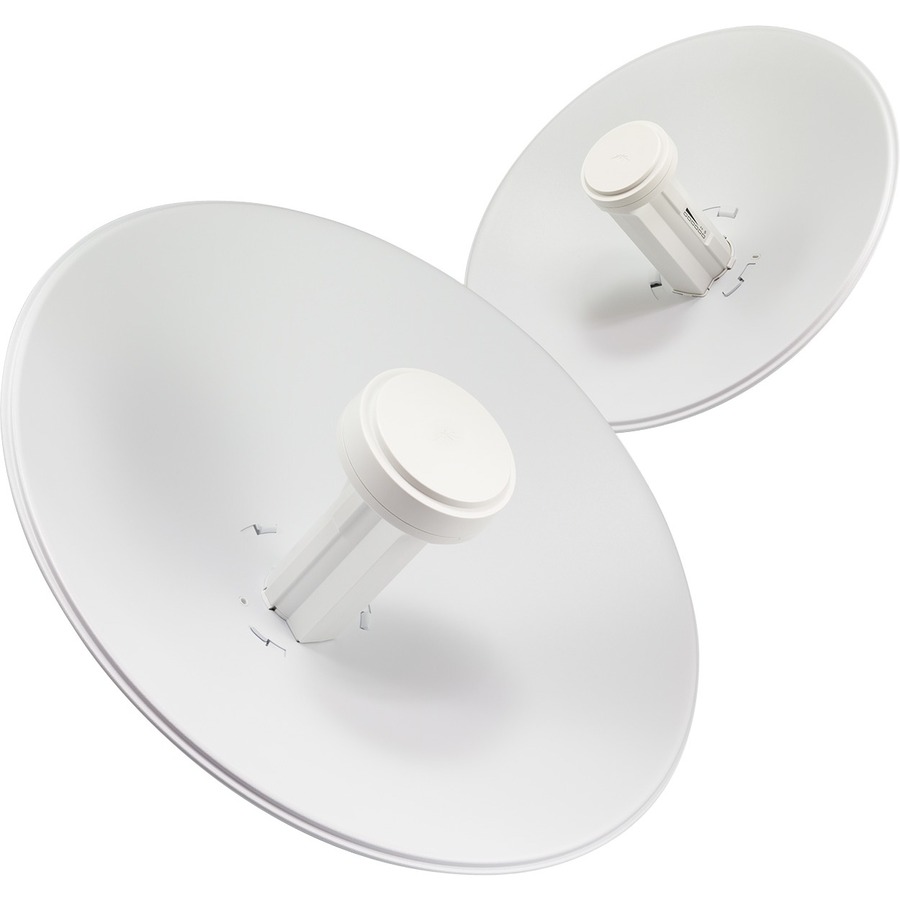

Ubiquiti Networks NBE-M2-400(US) Point to Multipoint Wireless
