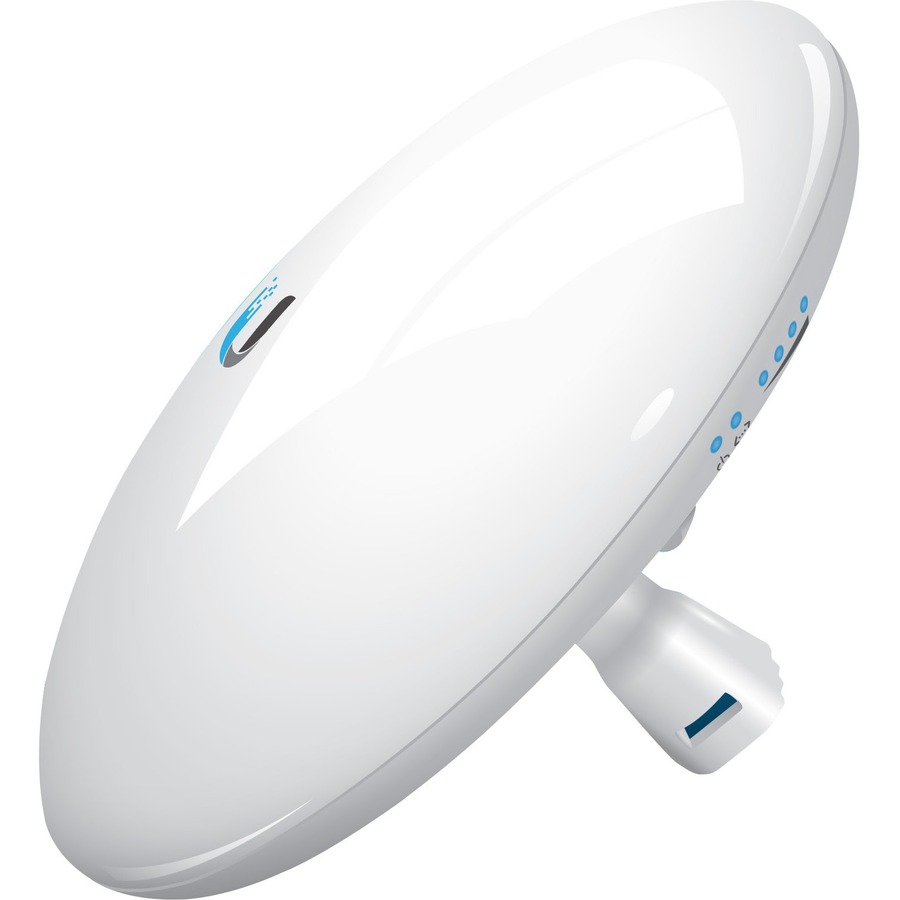

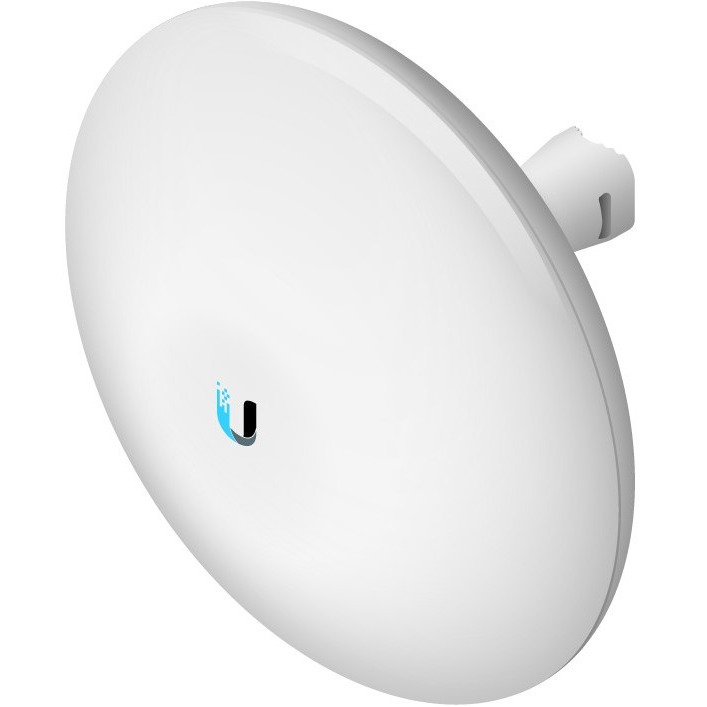

Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points

Part Number: NBE-5AC-GEN2-US
Model: Parts
Add to My Shopping List Add to Compare
$101.31
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11ac
Frequency Band
5 GHz
Outdoor Antenna Range
9.3 Mile
Wireless Transmission Speed
450 Mbit/s

Product Description:

  Access Point, Ubiquiti Networks, Ubiquiti NanoBeam AC Gen2 NBE-5AC-GEN2 IEEE 802.11ac 450 Mbit/s Wireless Bridge, 5 GHz, 9.3 Mile Maximum Outdoor Range, 1 x Network (RJ-45), Ethernet, Fast Ethernet, Gigabit Ethernet, Wall Mountable, Pole-mountable
Explore all Ubiquiti Networks UniFi Data Networkings
Add to Quote
Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points
Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points

Ubiquiti Networks UniFi Data Networking Model Overview

Ubiquiti UniFi Access Points provide business-class wireless coverage with cloud-ready, centralized control. The UniFi platform streamlines configuration, security policies, and network analytics across single or multi-location deployments. PoE support and versatile mounting options speed installation in new builds or retrofit environments. Perfect for enterprises, campuses, hotels, restaurants, and managed service providers seeking scalable, high-reliability Wi-Fi.

Ubiquiti Networks NBE-5AC-GEN2-US Wireless Access Points Overview
High-Performance airMAX® ac Bridge

Incorporating innovative industrial design with proprietary airMAX® ac technology, the NanoBeam® AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.

Management Wi-Fi Radio

The NanoBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Surge Protection

The NanoBeam® AC features enhanced protection against ESD events.

Superior Processing

Ubiquiti's airMAX® engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

Incredible Antenna "Beam" Performance

The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC's excellent beam directivity provides the best performance in high-noise environments.

Performance Breakthrough

airMAX® ac products offer improved latency, noise immunity, scalability and significantly increased throughput performance.

Advanced Software Technology

Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Plug and Play Installation

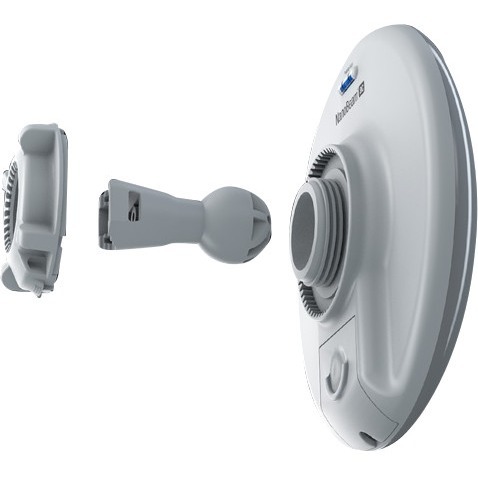

The NanoBeam® AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.

Now with airOS®8

airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

Technical Information
Wireless LAN Standard:
IEEE 802.11ac
Frequency Band:
5 GHz
Outdoor Antenna Range:
9.3 Mile
Wireless Transmission Speed:
450 Mbit/s
Interfaces/Ports
Ethernet Technology:
  • Ethernet
  • Fast Ethernet
  • Gigabit Ethernet
Number of Network (RJ-45) Ports:
1
PoE (RJ-45) Port:
No
PoE PD Port:
Yes
VGA:
No
HDMI:
No
USB:
No
Powerline:
No
Management Port:
No
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Pole-mountable
Height:
4.9"
Width:
7.4"
Depth:
7.4"
Weight (Approximate):
1.17 lb
Miscellaneous
Package Contents:
  • NanoBeam AC Gen2 NBE-5AC-GEN2 Wireless Bridge
  • Pole Mount Kit
  • 24V, 0.5A Gigabit PoE Adapter
Country of Origin:
China
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0703624197643, 0810354026324, 0818204174676, 0818242406883
UPC: 703624197643, 810354026324, 818204174676, 818242406883
EAN: 0703624197643, 0810354026324, 0818204174676, 0818242406883
UNSPSC: 43222631

Frequently Asked Questions

The NBE-5AC-GEN2-US delivers up to 450 Mbit/s throughput using IEEE 802.11ac wireless technology. This makes it suitable for high-bandwidth point-to-point and point-to-multipoint deployments where you need reliable, long-range connectivity.

The NBE-5AC-GEN2-US provides a maximum outdoor range of 9.3 miles, making it an excellent choice for long-distance wireless bridging in warehouse, logistics, and campus network deployments. The 19 dBi gain antenna helps achieve this extended range with improved noise immunity.

The NBE-5AC-GEN2-US is powered by a 24V, 0.5A Gigabit PoE adapter that is included with the unit. Maximum power consumption is only 8.5W, making it energy-efficient for outdoor deployments and reducing operational costs.

We offer the NBE-5AC-GEN2-US with both pole-mount and wall-mount options included in the kit. The unit weighs only 0.530 kg and can withstand wind speeds up to 200 km/h (125 mph), making it suitable for challenging outdoor environments.

The NBE-5AC-GEN2-US is CE, FCC, and IC certified, and is RoHS compliant. It has been tested for salt fog corrosion, vibration, temperature shock, UV exposure, and wind-driven rain per IEC and MIL-STD standards, ensuring reliability in harsh outdoor conditions.

The NBE-5AC-GEN2-US features one 10/100/1000 Gigabit Ethernet port (RJ-45) for network connectivity, plus dedicated Wi-Fi for management. It operates on the 5 GHz frequency band with support for channel widths from 10 to 80 MHz in point-to-point mode and 10 to 40 MHz in point-to-multipoint mode.
